Forney 300 190 AC/DC Multi-Process Welder, 120V/240V, 190A, MIG, Flux-Core, Stick and TIG

Forney 300 190 AC/DC Multi-Process Welder, 120V/240V, 190A, MIG, Flux-Core, Stick and TIG

• Built for fabrication, maintenance and repair, automotive aftermarket, farm and ranch, marine, contractor, and job shop applications. The inverter platform combines automatic MIG setup with advanced TIG controls for work on mild steel, sheet metal, aluminum, stainless steel, copper, and nickel.
• Features:
  • TruSet MIG automatically sets welding parameters for the selected weld setup.
  • Set & Forget Despooler automatically sets spool tension during spool changes.
  • Advanced TIG controls include Pulse TIG, AC balance, and adjustable AC frequency.
  • Separate MIG and TIG gas inputs and a Euro torch connection simplify process changes.
  • Compatible with an optional spool gun for aluminum MIG welding; spool gun sold separately.

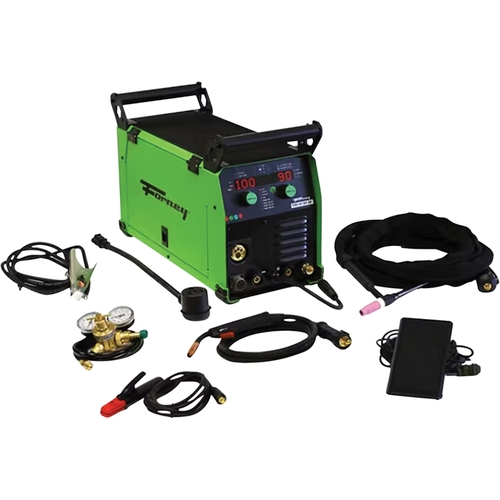

• Includes:
  • Forney 190 AC/DC MP Welder
  • 10' Euro Connect MIG torch
  • 17F TIG torch with 12' cable
  • Electrode holder with 8' cable
  • Ground clamp with 8' cable
  • Foot pedal
  • 6' gas hose
  • Flowgauge regulator
  • 240V-120V adapter
  • Spare consumables
  • Forney Expert-Tech tool
  • Forney Expert-Tech magnet
• Specifications:
  • Manufacturer: Forney
  • Part Number: 300
  • Product Type: Multi-process inverter welder
  • Input Power: 120V/240V
  • Processes: AC TIG, DC TIG, MIG, TruSet MIG, Flux-Core, Stick
  • 120V Output Range: MIG 30-90A, Stick 10-80A, TIG 10-110A
  • 240V Output Range: MIG 30-190A, Stick 10-170A, TIG 10-190A
  • 120V Welding Capacity: Up to 1/4"
  • 240V Welding Capacity: Up to 3/8"
  • Wire Diameter: .024"-.035"
  • Certification: CSA listed
• The Forney 190 AC/DC MP Welder can also be referred to as multi-process welder, AC/DC TIG welder, MIG TIG stick welder, dual-voltage welder, and 190 amp inverter welder.

Forney Industries is a family-owned welding and metalworking company founded in 1932. Its product categories include welding equipment, abrasives, personal protective equipment, and shop tools.

Q: Is a spool gun included with the Forney 300?
A: No. Forney item 85650 spool gun is sold separately.

Q: What generator output is required?
A: Generator operation requires at least 4,000W continuous output for 120V or 10,500W for 240V, with no low-idle and a maximum 5% total harmonic distortion.

Q: What MIG wire sizes can the Forney 300 use?
A: The supported wire diameter range is .024" through .035".
