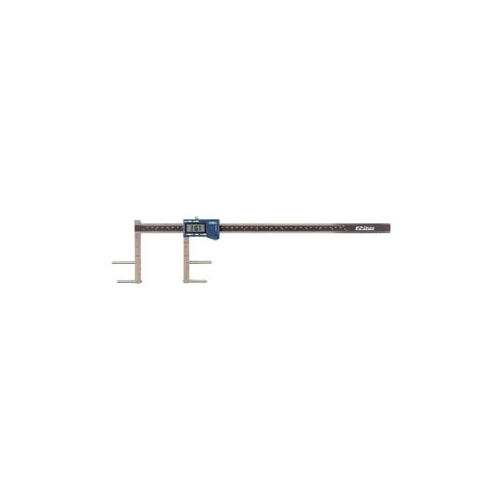

Fowler 74-150-020 EZ-Drum Electronic Brake Drum Gauge, 4" to 20"/100 to 500 mm Range, .0005"/.01 mm Resolution

Fowler 74-150-020 EZ-Drum Electronic Brake Drum Gauge, 4" to 20"/100 to 500 mm Range, .0005"/.01 mm Resolution

• This electronic brake drum gauge is used for measuring internal brake drum dimensions during brake service, inspection, and mechanical repair work. It reads in inch, metric, and fractional formats for shop measurement checks.
• Features:
  • Direct inch, metric, and fraction conversion is built into the electronic reading system.
  • 4" drum preset measures internal drum dimensions without a separate master.
  • Extra-long jaws include etched depth markings and threaded holes for 1" and 1.5" depth stop locations.
  • IP54 construction resists dust, water, and oil exposure in shop environments.
  • Beam includes a vernier scale for double checking the electronic reading.
• Includes:
  • EZ-Drum electronic brake drum gauge
  • Wooden case
• Specifications:
  • Manufacturer: Fowler
  • Part Number: 74-150-020
  • Product Type: Electronic Brake Drum Gauge
  • Range: 4" to 20"/100 to 500 mm
  • Resolution: .0005"/.01 mm
  • Fraction Resolution: 1/64" increments
  • Reading Modes: Inch, metric, and fraction
  • Preset: 4" drum preset
  • Depth Stop Locations: 1" and 1.5"
  • Protection Rating: IP54
  • Output: RS-232
  • Packaging Type: Wooden case
• The EZ-Drum Electronic Brake Drum Gauge can also be referred to as electronic brake drum gauge, digital brake drum gauge, brake drum measuring gauge, inch metric brake gauge, and automotive brake inspection gauge.

Fowler High Precision supplies inspection, control, and calibration equipment for quality control and metrology applications. Founded in 1946, the company provides precision measurement tools and calibration services for manufacturing, machining, automotive, and industrial users.

Q: What measurement formats does this gauge read?
A: It reads in inch, metric, and fractional formats.

Q: What is the measuring range?
A: The measuring range is 4" to 20"/100 to 500 mm.

Q: Does this brake drum gauge include a case?
A: Yes. It includes a wooden case.

Q: What protection rating does this gauge have?
A: It has an IP54 rating for resistance to dust, water, and oil exposure.
