Graco 203876 Fire-Ball 300 5:1 Universal Size Oil Pump, 900 PSI Max, 3/8" Air Inlet, 1 1/2" NPT Fluid Inlet, 1/2" NPT Outlet

Graco 203876 Fire-Ball 300 5:1 Universal Size Oil Pump, 900 PSI Max, 3/8" Air Inlet, 1 1/2" NPT Fluid Inlet, 1/2" NPT Outlet

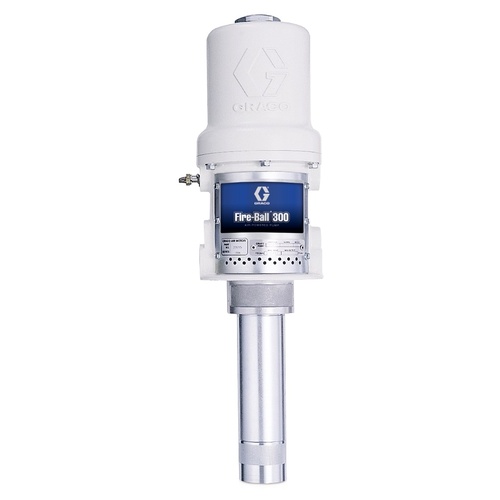

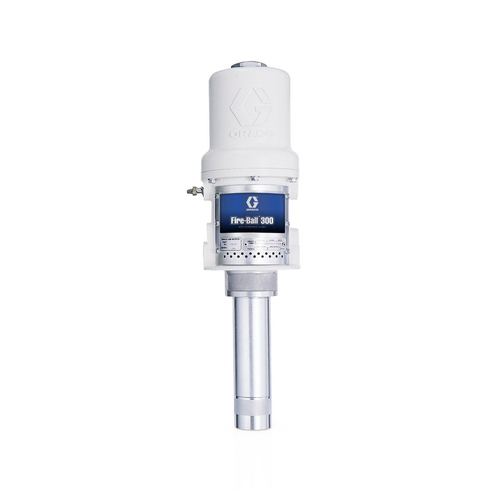

• The Graco 203876 Fire-Ball 300 5 to 1 universal oil pump is an air operated piston pump for high pressure, medium volume transfer of petroleum and synthetic oils in service shops and dealerships. It is a standalone pump, not a replacement part for another SKU.
• Features:
  • 5 to 1 pump ratio delivers high outlet pressure from standard shop air to drive long hose runs and multiple dispense points.
  • 900 psi maximum working pressure with 180 psi maximum air input supports demanding oil dispense applications safely.
  • 3/8 inch NPT female air inlet and 1 1/2 inch NPT female fluid inlet with 1/2 inch NPT female outlet simplify plumbing into common shop systems.
  • Wetted materials include steel, aluminum, and Buna N to handle petroleum and synthetic based oils for motor, gear, and ATF service.
  • Industrial design with thick cast air motor housing and double acting pump helps reduce repairs and extend uptime in daily use.
  • Not a replacement part; intended as the primary pump in bulk oil dispense systems for automotive and industrial facilities.
• Specifications:
  • Manufacturer: Graco
  • Part Number: 203876
  • Alternate Part Numbers / Cross References: 203-876
  • Pump Ratio: 5 to 1
  • Maximum Working Pressure: 900 psi
  • Maximum Air Inlet Pressure: 180 psi
  • Air Inlet: 3/8 inch NPT female
  • Fluid Inlet: 1 1/2 inch NPT female
  • Fluid Outlet: 1/2 inch NPT female
  • Cycles per Gallon: 30
  • Wetted Materials: Steel, polyurethane, aluminum, Buna N
  • Power Type: Pneumatic
  • Series / Model: Fire-Ball 300
  • System Compatibility or Application: For petroleum and synthetic based oils including motor, gear, and ATF in high pressure, medium volume shop dispense systems.
• The Fire-Ball 300 universal oil pump can also be referred to as air operated oil pump, 5 to 1 ratio oil pump, universal oil pump, Fire-Ball 300 oil pump, and automotive shop oil transfer pump.

Graco designs and manufactures professional fluid handling equipment and systems for industrial, automotive, and contractor markets, with a focus on reliability, serviceability, and global support.

Q: What fluids are compatible with the 203876
A: It is specified for petroleum and synthetic based oils such as motor, gear, and ATF. Do not use with corrosive or abrasive materials or incompatible solvents.

Q: What connections are on the pump
A: Air inlet is 3/8 inch NPT female; fluid inlet is 1 1/2 inch NPT female; fluid outlet is 1/2 inch NPT female, matching common shop plumbing standards.

Q: Is 203876 supplied with mounting hardware or hoses
A: No. This listing is for the pump only. Mounting, suction, air controls, and dispense hardware are selected to match your system layout and container type.
