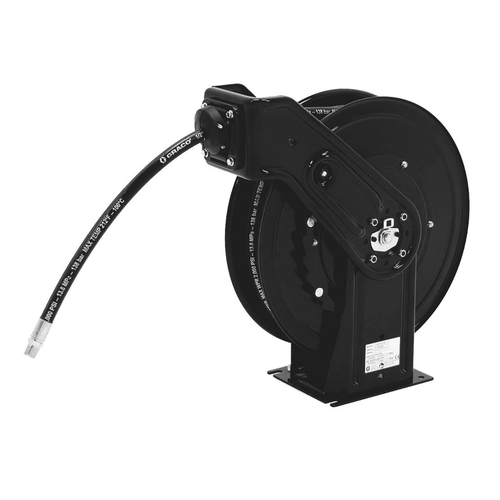

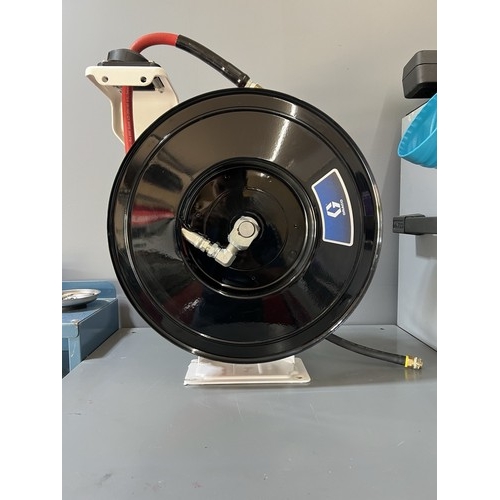

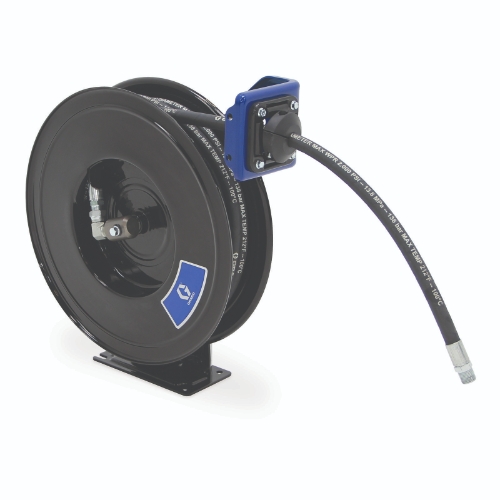

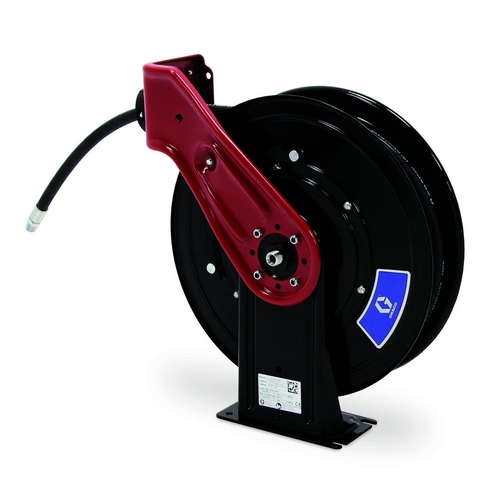

Graco SDL25B SDX 10 Hose Reel, 3/8" x 50' Hose, Metallic Blue, 1/2" NPSM Inlet, 3/8" NPT Outlet, Overhead Mount

Graco SDL25B SDX 10 Hose Reel, 3/8" x 50' Hose, Metallic Blue, 1/2" NPSM Inlet, 3/8" NPT Outlet, Overhead Mount

• The Graco SDL25B SDX 10 hose reel is a spring rewind reel with a preinstalled 3/8 inch x 50 ft hose for air, water, antifreeze, and windshield washer solvent. It is a complete reel with hose for overhead mounting and is not a replacement part for another SKU.
• Features:
  • Rigid single pedestal frame and metal spool improve durability and stability for busy bays and fleet facilities.
  • Low friction, full flow swivel with stainless steel shaft helps minimize pressure drop and extends service life.
  • Adjustable arm lets you set the payout angle to match ceiling, wall, or overhead mount layouts.
  • Includes hose from the factory to speed installation; not a replacement component but a ready to use reel with hose.
  • Baked enamel metallic blue finish enhances corrosion resistance for indoor and limited outdoor environments.
• Includes:
  • SDX 10 spring rewind hose reel assembly
  • 3/8 inch x 50 ft hose, installed
• Specifications:
  • Manufacturer: Graco
  • Part Number: SDL25B
  • Series: SDX 10
  • Fluids: Air, water, antifreeze, windshield washer solvent
  • Maximum Working Pressure: 300 psi
  • Temperature Range: -20 F to 190 F
  • Hose Inside Diameter: 3/8 inch
  • Hose Length: 50 ft
  • Inlet Connection: 1/2 inch NPSM male
  • Outlet Connection: 3/8 inch NPT male
  • Mount Location: Overhead mount
  • Overall Dimensions: 17.1 inch L x 7 inch W x 19.5 inch H
  • Wetted Parts: Stainless steel, anodized aluminum, nitrile rubber
  • Color: Metallic blue
  • System Compatibility or Application: Spring rewind reel with hose for dispensing air, water, antifreeze, and windshield washer solvent in service garages, public works, and fleet maintenance; integrates with shop air and fluid systems.
• The SDX 10 hose reel can also be referred to as air and water hose reel, 3/8 inch x 50 ft hose reel, spring rewind hose reel, metallic blue hose reel, and overhead mount hose reel.

Graco designs and manufactures professional fluid handling equipment for automotive, industrial, and construction markets, supplying pumps, meters, hose reels, and accessories supported by global service networks.

Q: What connections does SDL25B use?
A: The inlet is 1/2 inch NPSM male and the outlet is 3/8 inch NPT male, matching common shop plumbing standards.

Q: What fluids are compatible with this configuration?
A: It is listed for air, water, antifreeze, and windshield washer solvent. Do not use with gasoline or diesel fuels; always verify fluid compatibility with wetted materials.

Q: Is the hose included from the factory?
A: Yes. SDL25B is a reel with hose installed, 3/8 inch inside diameter by 50 ft length, ready to plumb into your system.
