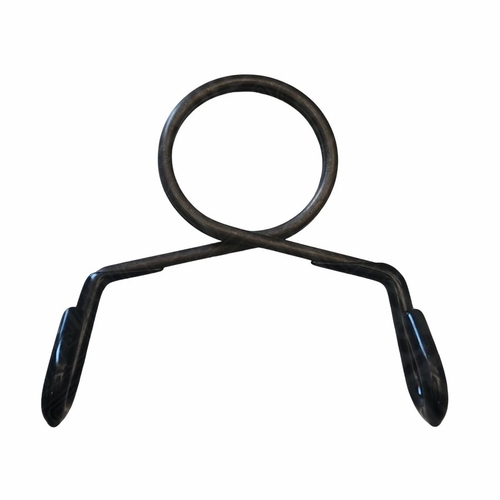

Graco 104820 Torsion Spring, replacement for Oil King and Coolant King Funnel Assembly

Graco 104820 Torsion Spring, replacement for Oil King and Coolant King Funnel Assembly

• Graco 104820 is a replacement torsion spring used in the funnel height adjustment assembly of compatible Graco Oil King and Coolant King used fluid receivers. This spring is identified in Graco parts documentation for the funnel assembly and is used to help raise and lower the funnel during service.
• Features:
  • replacement torsion spring design restores the funnel height adjustment function on compatible Graco used fluid receiver equipment.
  • Graco parts documentation identifies this spring for Oil King and Coolant King assemblies, helping buyers match the correct replacement part.
  • Used in the funnel assembly where the operator squeezes the spring to raise or lower the funnel position during draining service.
  • Designed as a replacement part for compatible Graco receiver systems rather than as a general purpose hardware spring.
• Specifications:
  • Manufacturer: Graco
  • Part Number: 104820
  • MPN: 104820
  • UPC: 633955190177
  • Product Type: Torsion spring
  • Quantity: 1 torsion spring
  • System Compatibility or Application: replacement torsion spring for compatible Graco Oil King and Coolant King funnel assemblies used on waste oil and used fluid receiver systems.
• The Torsion Spring can also be referred to as funnel spring, receiver funnel torsion spring, Oil King replacement spring, Coolant King replacement spring, and Graco funnel assembly spring.

Graco manufactures fluid handling, dispensing, and service equipment for industrial, automotive, and maintenance applications. The brand is widely known for pumps, sprayers, reels, valves, and used fluid handling components used in professional shop environments.

Q: Is Graco 104820 a replacement part?
A: Yes. Graco parts documentation identifies it as a replacement torsion spring used in compatible funnel assemblies.

Q: What equipment does Graco 104820 fit?
A: Graco documentation ties it to Oil King and Coolant King style used fluid receiver funnel assemblies.

Q: What does this torsion spring do?
A: It is used in the funnel height adjustment mechanism to help the operator raise and lower the funnel during service.
