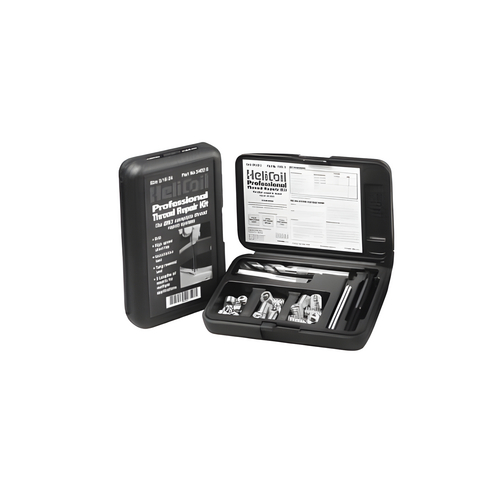

Heli-Coil 5401-06 Coarse Thread Repair Kit, 6-32 UNC, 18-8 Stainless Steel Inserts, with Drill Tap and Installation tools

Heli-Coil 5401-06 Coarse Thread Repair Kit, 6-32 UNC, 18-8 Stainless Steel Inserts, with Drill Tap and Installation tools

• Heli-Coil 5401-06 is a coarse thread repair kit for restoring stripped or damaged 6-32 UNC internal threads in metal. The kit includes free-running tanged 18-8 stainless steel inserts in three lengths plus the correct drill, STI tap, installation tool, and tang removal tool for complete thread repair work.
• Features:
  • Thread size #6-32 UNC supports repair of common 6-32 internal threads in metal parts.
  • Includes 36 free-running tanged 18-8 stainless steel inserts to restore threads to the original size.
  • Three insert lengths provide options for different engagement depths: 0.138 inch, 0.207 inch, and 0.276 inch.
  • Correct drill bit size (#25) and #6-32 STI tap are included to prepare the hole for insert installation.
  • Installation tool and tang removal tool support proper insert installation and tang removal after installation.

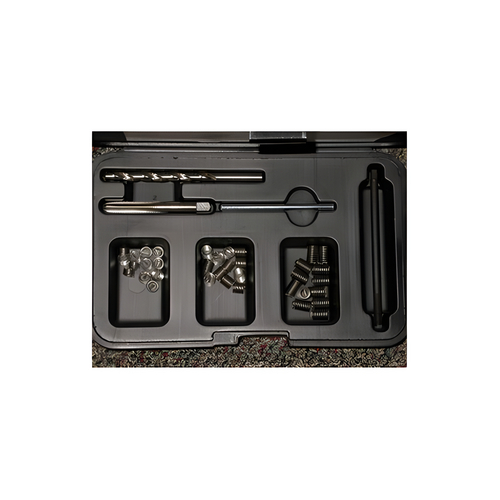

• Includes:
  • (12) 6-32 free-running tanged inserts, 0.138 inch length
  • (12) 6-32 free-running tanged inserts, 0.207 inch length
  • (12) 6-32 free-running tanged inserts, 0.276 inch length
  • (1) Drill bit, size #25
  • (1) STI tap, size #6-32
  • (1) Installation tool
  • (1) Tang removal tool
• Specifications:
  • Manufacturer: Stanley Engineered Fastening
  • Part Number: HE5401-06
  • MPN: 5401-06
  • UPC: 678000678767
  • Product Name: Free-Running Helical Insert Repair Kit
  • Alternate Part Numbers / Cross References: 5401-06
  • Category: Thread Repair Kits
  • Subcategory: Helical Insert Repair Kits
  • Product Type / Function: Thread repair kit with helical inserts and installation tools
  • Thread Size: #6-32
  • Thread Type: UNC
  • Thread Direction: Right hand
  • Insert Type: Free-running, tanged
  • Insert Material: 18-8 stainless steel
  • Finish: Plain
  • Number of Inserts: 36
  • Insert Lengths Included: 0.138 inch, 0.207 inch, 0.276 inch
  • Drill Bit Size Included: #25
  • Tap Size Included: #6-32 STI
  • Compatible Material: Metal
  • System Compatibility / Application: Designed to repair stripped or damaged 6-32 UNC internal threads in metal by installing 6-32 helical inserts after drilling with a #25 drill and tapping with a #6-32 STI tap
• The Free-Running Helical Insert Repair Kit can also be referred to as a 6-32 thread repair kit, helical insert repair kit, Heli-Coil insert kit, 6-32 UNC thread insert kit, and stainless steel thread repair kit.

Stanley Engineered Fastening manufactures fastening and assembly solutions, including wire thread insert systems and installation tooling used in industrial maintenance, manufacturing, and repair operations across automotive, aerospace, and general engineering applications.

Q: What thread size does HE5401-06 repair?
A: It is designed to repair #6-32 UNC internal threads by installing 6-32 helical inserts.

Q: What insert lengths are included in this kit?
A: The kit includes inserts in three lengths: 0.138 inch, 0.207 inch, and 0.276 inch.

Q: Does the kit include the drill and tap needed for installation?
A: Yes. It includes a #25 drill bit and a #6-32 STI tap, along with an installation tool and a tang removal tool.
