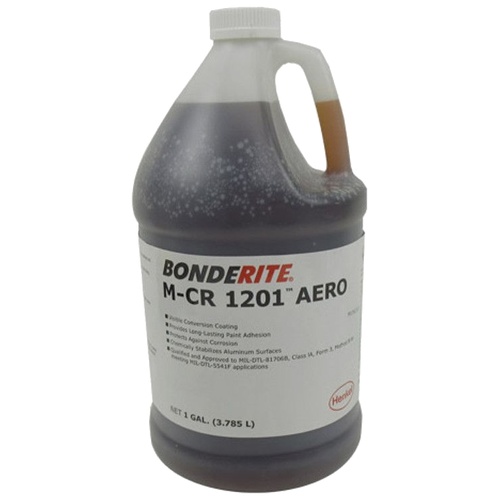

Henkel 594418 BONDERITE M-CR 1201 AERO Chromate Conversion Coating, Orange Liquid, 1 Gallon Bottle

Henkel 594418 BONDERITE M-CR 1201 AERO Chromate Conversion Coating, Orange Liquid, 1 Gallon Bottle

• Henkel 594418 BONDERITE M-CR 1201 AERO is a nonflammable, chromic acid based conversion coating for aluminum and aluminum alloys. It produces a chrome conversion coating used for corrosion resistance and paint adhesion in aluminum surface preparation before finishing.
• Features:
  • Approved to MIL-DTL-81706 for brush application only.
  • Used as received for MIL-DTL-5541 work; adjustments and titrations are not needed.
  • Brush application uses the undiluted solution on a chemically cleaned surface.
  • Immersion bath preparation uses 33 parts coating with 67 parts water.
  • Produces a gold to tan coating that becomes part of the aluminum surface.
• Specifications:
  • Manufacturer: Henkel
  • Part Number: 594418
  • Brand: BONDERITE
  • Product Name: BONDERITE M-CR 1201 AERO
  • Former Product Name: Alodine 1201
  • Product Type: Chromate conversion coating
  • Container Size: 1 Gallon
  • Container Type: Bottle
  • Product Form: Liquid
  • Product Color: Orange
  • Coating Color: Gold to tan
  • Chemical Base: Chromic acid
  • Components: 1 part
  • Material Compatibility: Aluminum and aluminum alloys
  • Application Methods: Brush and immersion
  • Brush Application: Use undiluted from the container on a chemically cleaned surface
  • Immersion Bath Mix: 33 parts coating to 67 parts water
  • Treatment Time: 2 to 5 Minutes
  • Operating Temperature: Room temperature to 100 Degrees Fahrenheit
  • Specific Gravity: 1.00 to 1.02 at 15.56 Degrees Celsius
  • pH: Less than 2
  • Freeze Point: 32 Degrees Fahrenheit
  • Packaging Type: Each
  • Quantity: 1 Bottle
• The BONDERITE M-CR 1201 AERO can also be referred to as aluminum conversion coating, chromate conversion coating, chrome conversion coating, Alodine 1201 coating, and Henkel conversion coating.

Henkel Adhesive Technologies develops bonding, sealing, and coating solutions for industrial customers, consumers, and craftsmen. Its industrial technology cluster brands include Loctite, Technomelt, Bonderite, Teroson, and Aquence.

Q: Does BONDERITE M-CR 1201 AERO require dilution for brush application?
A: No. Brush application uses the solution undiluted from the container on a chemically cleaned surface.

Q: What mix ratio is used for immersion application?
A: Immersion bath preparation uses 33 parts BONDERITE M-CR 1201 AERO and 67 parts water for each 100 parts of bath.

Q: What rinse step follows treatment?
A: A thorough rinse with clean water is necessary to remove residual coating chemical salts from the metal surface.
