Howmet M39314 RN-1 Steel Klik Thread-Sert Kit, with M39300 Tool and 62 Steel Inserts

Howmet M39314 RN-1 Steel Klik Thread-Sert Kit, with M39300 Tool and 62 Steel Inserts

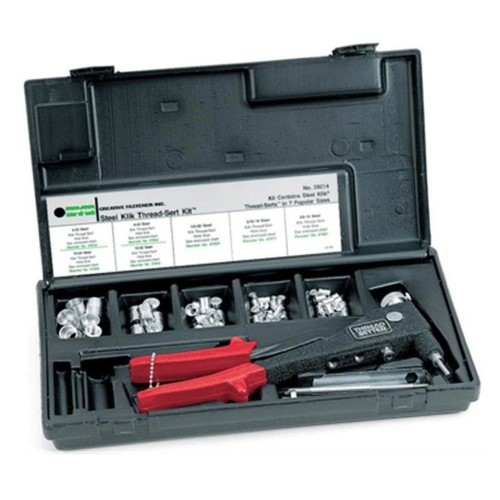

• Howmet M39314 is an RN-1 Steel Klik Thread-Sert kit that bundles the M39300 hand rivet nut tool, inch-size mandrels and nosepieces, and 62 steel inserts in a molded case. It equips technicians to install threaded inserts from 6-32 up to 3/8-16 across repair and fabrication tasks.
• Features:
  • Includes M39300 tool with inch mandrels and nosepieces from 6-32 to 3/8-16 for broad fastener coverage without separate purchases.
  • 62 steel Klik Thread-Serts supplied for immediate job readiness and trial across common thread sizes.
  • Molded plastic case organizes tool, hardware, and accessories to speed setup and reduce lost parts.
  • Hand-operated setting tool provides controlled installation where power tools are impractical.
  • Complete installation kit for creating load-bearing threads in sheet and thin materials; not a replacement part.
• Includes:
  • M39300 Thread-setter hand tool
  • Mandrel 6-32 (M39354) and nosepiece 6-32 (M39361)
  • Mandrel 8-32 (M39355) and nosepiece 8-32 (M39362)
  • Mandrel 10-24 (M39356) and nosepiece 10-24 (M39363)
  • Mandrel 10-32 (M39357) and nosepiece 10-32 (M39363)
  • Mandrel 1/4-20 (M39358) and nosepiece 1/4-20 (M39379)
  • Mandrel 5/16-18, 3-piece type (M39359)
  • Mandrel 3/8-16, 3-piece type (M39360)
  • Wrench (M39349) and instructions
  • Molded plastic case (M39264)
  • Steel Klik Thread-Serts, 62 total:
    • 10 each: 57810 (6-32), 57820 (8-32), 57830 (10-24), 57840 (10-32), 57850 (1/4-20)
    • 6 each: 57871 (5/16-18), 57881 (3/8-16)
• Specifications:
  • Manufacturer: Howmet
  • Part Number: M39314
  • Category: Threaded insert installation kits
  • Thread Sizes Included: 6-32, 8-32, 10-24, 10-32, 1/4-20, 5/16-18, 3/8-16
  • Tool Model in Kit: M39300 manual rivet nut tool
  • Packaging: Molded plastic case with tool, accessories, and inserts
  • System Compatibility or Application: Installs Klik Thread-Sert style threaded inserts in sheet, tube, and thin materials
  • Alternate Part Numbers / Cross References: MRM39314
  • Quantity: 1 complete kit
• The RN-1 Steel Klik Thread-Sert Kit can also be referred to as Thread-Sert installation kit, rivet nut tool kit, threaded insert tool set, M39314 Thread-Sert kit, and Howmet Thread-Sert kit.

Howmet manufactures engineered fastening solutions and installation tools for industrial and transportation markets, including threaded inserts and hand and pneumatic setting tools.

Q: Which thread sizes are installable with this kit?
A: The kit covers 6-32, 8-32, 10-24, 10-32, 1/4-20, 5/16-18, and 3/8-16 using the supplied mandrels and nosepieces.

Q: Are inserts included, and how many?
A: Yes. The kit includes 62 steel Thread-Serts: 10 each 6-32 through 1/4-20 and 6 each 5/16-18 and 3/8-16, as itemized above.

Q: What tool is included?
A: The M39300 manual thread-setter tool is included, along with sized mandrels, nosepieces, a wrench, instructions, and a molded case.
