Howmet M79060 V-4 Air-Hydraulic Rivet Tool, 3/32 to 1/4 inch Capacity, 0.562 in Stroke, 3055 lb Pull

Howmet M79060 V-4 Air-Hydraulic Rivet Tool, 3/32 to 1/4 inch Capacity, 0.562 in Stroke, 3055 lb Pull

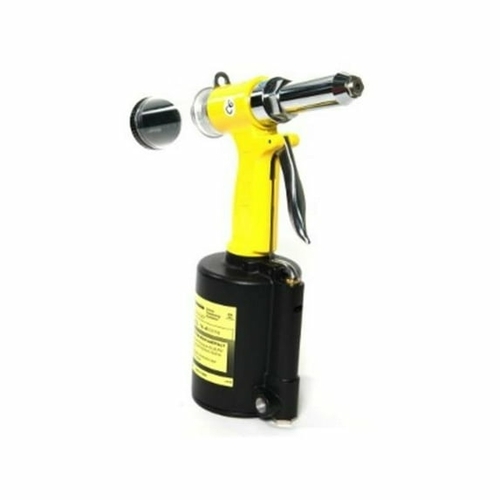

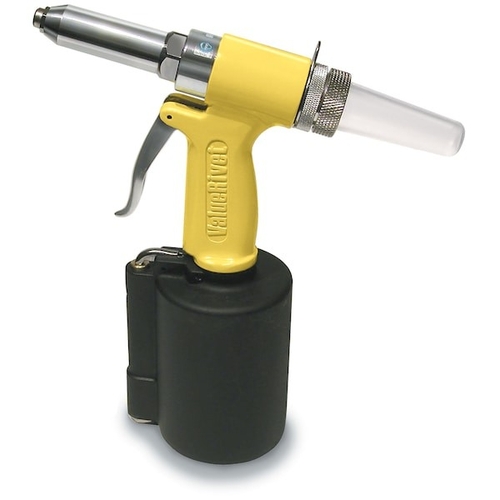

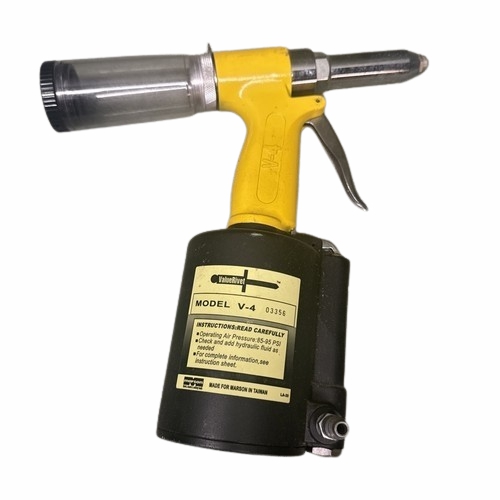

• Howmet M79060 V-4 is an air-hydraulic rivet tool designed to install blind rivets from 3/32 to 1/4 in in common materials. With a 0.562 in stroke and about 3055 lb pulling force at 85 to 95 psi, it delivers fast, consistent setting performance for production and repair work. This is a standalone installation tool, not a replacement part.
• Features:
  • 3/32 to 1/4 in capacity covers common blind rivet sizes across aluminum, steel, and stainless.
  • Approx. 3055 lb pulling force with 0.562 in stroke provides strong, reliable setting.
  • Operates at 85 to 95 psi for compatibility with typical shop air systems.
  • Supplied nosepieces let you switch sizes quickly to minimize changeover time.
  • Complete air-hydraulic installation tool for blind rivets; not a replacement component.
• Includes:
  • Nosepiece 3/32 in
  • Nosepiece 1/8 in
  • Nosepiece 5/32 in
  • Nosepiece 3/16 in
  • Nosepiece 1/4 in (installed)
• Specifications:
  • Manufacturer: Howmet Fastening Systems
  • Part Number: M79060
  • Category: Rivet tools; pneumatic
  • Stroke: 0.562 in
  • Pulling Force: about 3055 lb
  • Operating Pressure: 85 to 95 psi
  • Rivet Capacity: 3/32 to 1/4 in blind rivets (all materials); rated for structural blind rivets within range
  • System Compatibility or Application: Air-hydraulic tool for installing blind rivets; standalone tool
  • Alternate Part Numbers / Cross References: MRM79060
  • Quantity: 1 rivet tool with nosepieces
• The V-4 Air-Hydraulic Rivet Tool can also be referred to as V-4 air rivet tool, pneumatic rivet gun, air-hydraulic riveter, 3/32 to 1/4 in rivet tool, and M79060 rivet tool.

Howmet Fastening Systems manufactures engineered fastening solutions and installation tools for industrial and transportation markets, offering brands and product lines for blind rivets, rivet nuts, and powered setting tools.

Q: What air pressure should I supply?
A: Use clean, regulated shop air at 85 to 95 psi for rated stroke and pull performance.

Q: Which rivet sizes and types will it install?
A: It sets 3/32 to 1/4 in blind rivets in aluminum, steel, and stainless. It is also specified for structural blind rivets within that size range.

Q: Are nosepieces included for each size?
A: Yes. The tool is supplied with 3/32, 1/8, 5/32, 3/16, and 1/4 in nosepieces, with 1/4 in typically installed from the factory.
