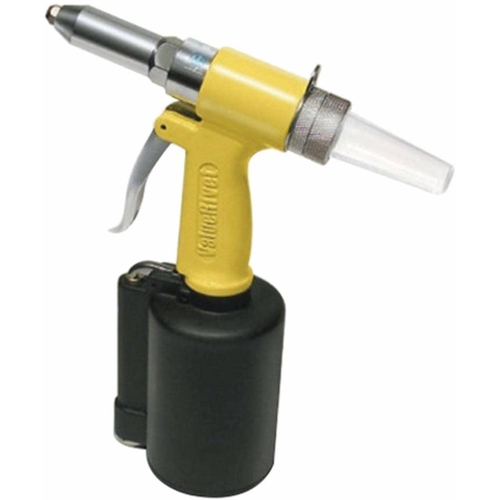

Howmet M79014 ValueRivet V-2 Air-Hydraulic Riveting Tool, Sets 3/32" to 3/16" Rivets

Howmet M79014 ValueRivet V-2 Air-Hydraulic Riveting Tool, Sets 3/32" to 3/16" Rivets

• Howmet M79014 is a ValueRivet V-2 air-hydraulic riveting tool designed to set blind rivets in all materials from 3/32" to 3/16" diameter. It uses compressed air to drive the hydraulic pull mechanism, delivering consistent rivet setting for production and maintenance fastening work.
• Features:
  • Rivet setting range 3/32" to 3/16" supports common blind rivet sizes across mixed material assemblies.
  • Air-hydraulic tool design provides powered pulling action for repeatable rivet installation.
  • Recommended airline pressure 85 psi to 95 psi supports proper performance on standard shop air systems.
  • Stroke 0.551" supports setting rivets within the specified diameter range.
  • replacement and application: Designed for installing blind rivets, not a replacement part for another SKU.
• Includes:
  • ValueRivet V-2 air-hydraulic riveting tool (M79014)
  • Compartment storage container
  • 3/16" nosepiece installed
  • 3/32" nosepiece
  • 1/8" nosepiece
  • 5/32" nosepiece
  • Service wrenches
  • Spanner gauge
  • Safety cap for catching ejected mandrels
• Specifications:
  • Manufacturer: Howmet
  • Part Number: M79014
  • MPN: M79014
  • UPC: Not Listed
  • Product Name: ValueRivet V-2 Air-Hydraulic Riveting Tool
  • Category: Riveting Tools
  • Subcategory: Pneumatic and Air-Hydraulic Rivet Tools
  • Product Type or Function: Air-Hydraulic Riveting Tool
  • Rivet Setting Range: 3/32" to 3/16"
  • Maximum Rivet Setting Capacity: 3/16" diameter
  • Pulling force: 1870 lbs
  • Stroke: 0.551"
  • Recommended Airline Pressure: 85 psi to 95 psi
  • Maximum Air Pressure At Tool: 95 psi
  • Air Consumption: 4 CFM
  • Air Inlet: 1/4" NPT
  • Overall Height: 11.5"
  • Weight: 3.2 lbs
  • System Compatibility or Application: Designed to install blind rivets in all materials within the 3/32" to 3/16" diameter range
• The ValueRivet V-2 Air-Hydraulic Riveting Tool can also be referred to as air hydraulic rivet tool, pneumatic hydraulic riveter, blind rivet installation tool, air riveting tool, and ValueRivet V-2 riveter.

Howmet is an engineered products company that supplies industrial fastening systems, tooling, and related solutions for manufacturing and maintenance applications. Its product portfolio includes blind fasteners and installation tools used across transportation, industrial, and general fabrication markets.

Q: What rivet diameters can the M79014 V-2 tool set?
A: It is designed to set blind rivets from 3/32" to 3/16" diameter in all materials.

Q: What air pressure should I supply to the tool?
A: The recommended airline pressure is 85 psi to 95 psi, and the maximum air pressure at the tool is 95 psi.

Q: What comes with the tool for different rivet sizes?
A: It includes nosepieces for 3/32", 1/8", 5/32", and a 3/16" nosepiece installed, along with service wrenches, a spanner gauge, and a safety cap for catching ejected mandrels.
