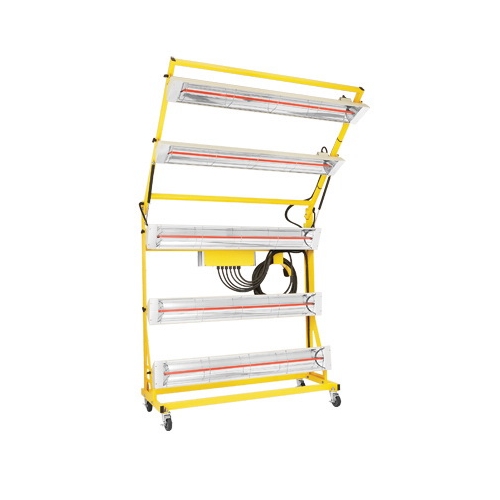

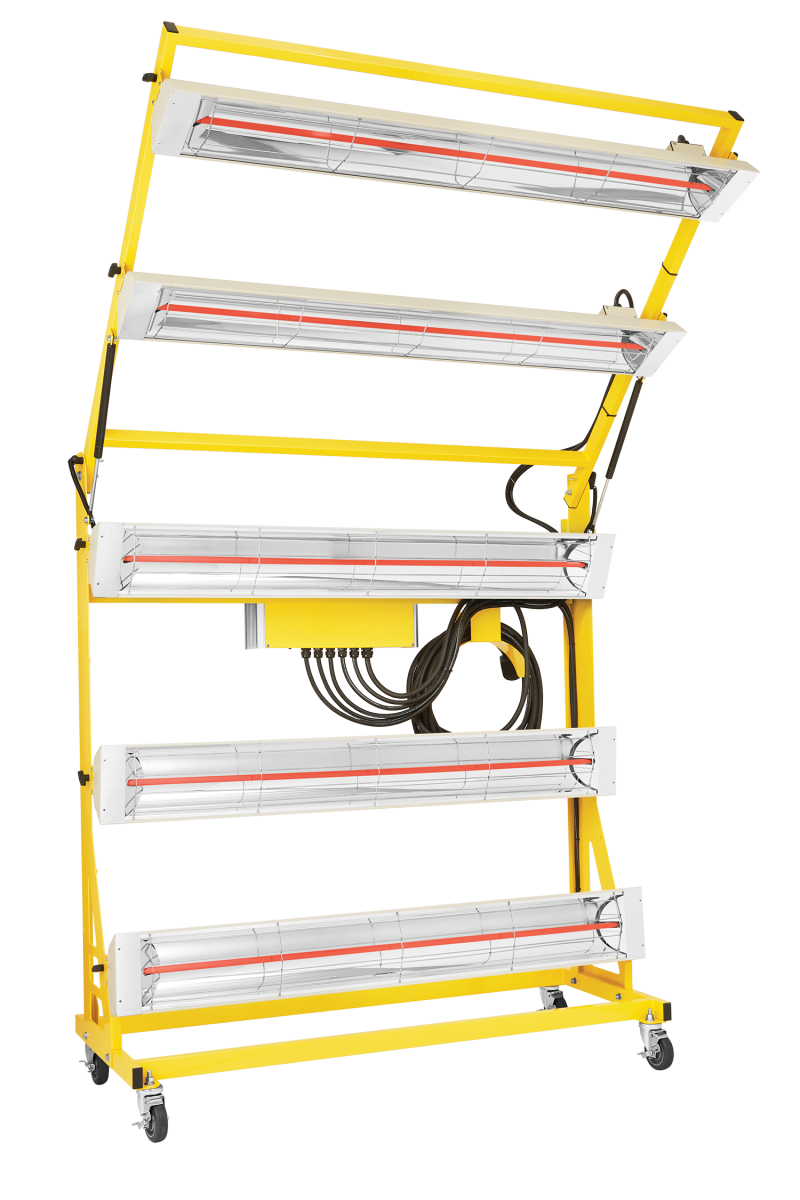

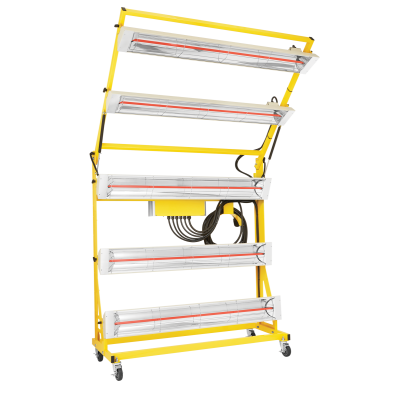

Infratech 16-1040 S-2005-IR Medium Wave Infrared Curing System, 17,000 Watt, 240 Volt, 61.25 Inch Head, IR Sensor

Infratech 16-1040 S-2005-IR Medium Wave Infrared Curing System, 17,000 Watt, 240 Volt, 61.25 Inch Head, IR Sensor

• Infratech 16-1040 S-2005-IR medium wave infrared curing system delivers 17,000 watt output with an infrared sensor that maintains a set surface temperature for consistent curing. It features independently controlled top and bottom lamp banks and a 61.25 inch head for large coverage. This is standalone equipment, not a replacement part.
• Features:
  • 17,000 watt curing output for multi panel repairs with medium wave infrared efficiency
  • Independently controlled zones with dual solid state programmable timers to tailor top and bottom banks
  • Infrared sensor automatically regulates heat to a target surface temperature for uniform results
  • 61.25 inch head on a narrow frame with adjustable shock arm to fit common spray booths
  • Includes 50 foot power cord to ease placement around vehicles without rewiring
  • Configured for 240 volt, 38 amp operation; UL listed
• Includes:
  • Infrared temperature sensor
  • Percentage timer and electronic controls
  • Power cord, 50 foot
• Specifications:
  • Manufacturer: Infratech
  • Part Number: 16-1040
  • Alternate Part Numbers: IF16-1040; S-2005-IR
  • Power: 17,000 watt
  • Voltage and Current: 240 volt, 38 amp
  • Head Length: 61.25 inch
  • Controls: dual solid state programmable timers; IR temperature control
  • Circuit Type: available in single or three phase configurations (also 208 or 480 volt options)
  • Compliance: UL listed
  • System Compatibility or Application: portable medium wave infrared curing system for automotive refinish and body repair; not a replacement for a specific SKU
• The medium wave infrared curing system can also be referred to as portable infrared paint curing system, auto body infrared curing lamp, 17,000 watt IR curing unit, S 2005 IR curing system, and Infratech 16 1040 curing system.

Infratech designs and manufactures electric infrared heating and curing solutions for automotive, industrial, and commercial applications, emphasizing efficient, low maintenance systems distributed through authorized channels.

Q: What electrical service does the 16-1040 require?
A: It is configured for 240 volt service at 38 amp. Single or three phase configurations are available; verify site power before purchase.

Q: How does the infrared sensor help during curing?
A: The IR sensor monitors surface temperature and automatically adjusts lamp output to maintain the setpoint, helping prevent undercuring or overheat.

Q: What is the approximate coverage capability?
A: The 61.25 inch head with independently controlled top and bottom banks is designed for multiple panel repairs and large coverage areas in refinish bays.
