Innovative Products 8090B Brass Injector Seat Cleaning Kit, Heavy Duty Steel and Brass, 17 Piece Set

Innovative Products 8090B Brass Injector Seat Cleaning Kit, Heavy Duty Steel and Brass, 17 Piece Set

• The Innovative Products 8090B is a brass injector seat and bore cleaning kit built for light, medium, and heavy duty diesel engines. It includes a variety of brass brushes, bore brushes, extensions, and SWAB-EEZ cleaners designed to safely remove carbon, rust, and debris from injector seats and cups without causing damage.
• Features:
  • Comprehensive kit with helix brushes, two-stage brushes, and bore brushes sized for common diesel injector seats.
  • Brass construction prevents seat and bore damage while providing effective cleaning.
  • Includes over 400 low lint SWAB-EEZ cleaners ranging from 5 mm to 20 mm for precision cleaning.
  • Rigid and flexible extensions with a 1/4 inch hex drive allow use by hand or with a low-speed drill.
  • Quick lock coupler and driver handle ensure secure brush attachment.
  • Packaged in a blow-molded case for organization and portability.

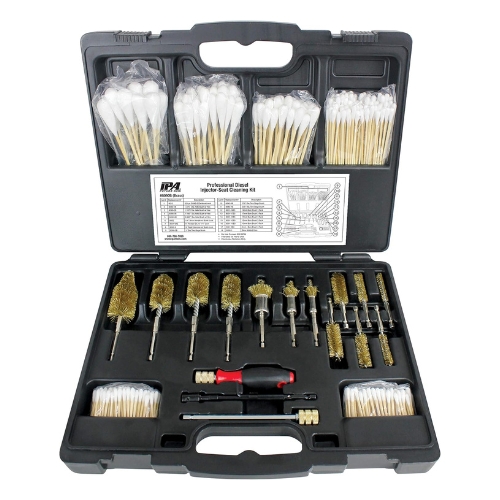

• Includes:
  • (4) Brass Helix Brushes: 1.375", 1.1875", 1.160", 0.990"
  • (3) Brass Two-Stage Brushes: 1.00 inch, 0.750 inch, 0.500 inch
  • (6) Brass Bore Brushes: 8 mm, 10 mm, 12 mm, 15 mm, 17 mm, 19 mm
  • Driver Handle with 1/4 inch hex drive
  • 6 inch rigid extension bar
  • 6 inch flexible extension
  • 400+ assorted SWAB-EEZ bore cleaners (5 mm to 20 mm)
  • Custom blow-molded carrying case
• Specifications:
  • Manufacturer: Innovative Products
  • Part Number: 8090B
  • Material: Brass brushes, steel extensions and driver, plastic case, lint-free swabs
  • Brush Lengths: 3 inches, 4 inches, 6 inches
  • Drive Size: 1/4 inch hex drive
  • Maximum Speed: Do not exceed 600 RPM, clockwise rotation only
  • System Compatibility/Application: Designed for cleaning injector seats, cups, and bores on diesel engines including Cummins, Duramax, Ford Powerstroke, Caterpillar, John Deere, Isuzu, Perkins, and International
• The Innovative Products 8090B is also known as the Brass Injector Seat Cleaning Kit, Diesel Injector Seat and Bore Brush Kit, or Injector Bore Cleaning Master Set.

The Innovative Products 8090B Brass Injector Seat Cleaning Kit delivers professional-grade cleaning for diesel injector maintenance. With brass brushes, extensions, and precision swabs, it allows safe removal of deposits and ensures proper seating of injectors for improved performance.

Q: Can the brushes be used with a power drill?
A: Yes, the brushes can be used with a low-speed drill, but operation must not exceed 600 RPM and must rotate clockwise only.

Q: What bore sizes does the kit cover?
A: The included bore brushes range from 8 mm to 19 mm, and SWAB-EEZ cleaners cover 5 mm to 20 mm sizes.

Q: Is there a stainless steel version of this kit?
A: Yes, Innovative Products also offers the 8090S Stainless Steel Injector Seat Cleaning Kit for applications requiring more aggressive cleaning.
