IRWIN 8203, 1/4"-18 NPT High Carbon Steel Plug Pipe Tap, 4-Flute, Right-Hand, Carded

IRWIN 8203, 1/4"-18 NPT High Carbon Steel Plug Pipe Tap, 4-Flute, Right-Hand, Carded

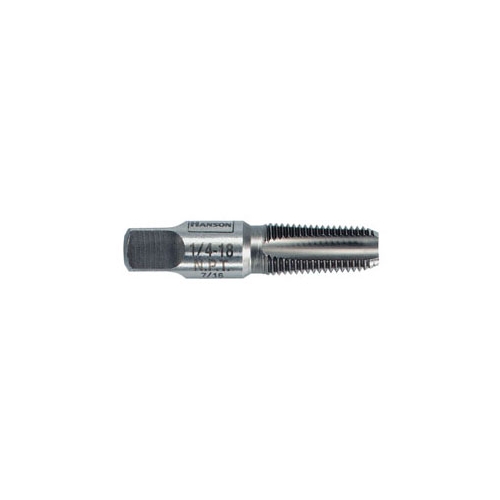

• This hand threading tap cuts internal threads in pipes and pipe fittings. Its plug-point configuration suits general pipe-threading applications where the tap must establish a standard National Pipe Taper thread.
• Features:
  • Chamfer incorporates 8 to 10 threads.
  • Pipe thread tapers at a rate of 3/4" per foot.
  • Right-hand cutting direction.
• Specifications:
  • Manufacturer: IRWIN
  • Part Number: 8203
  • Thread Size: 1/4"-18
  • Thread Standard: NPT
  • Tap Type: Plug Pipe Tap
  • Material: High Carbon Steel
  • Number of Flutes: 4
  • Cutting Direction: Right-Hand
  • Chamfer: 8 to 10 Threads
  • Packaging Type: Carded
  • UPC: 042526082030
• The IRWIN 8203 Plug Pipe Tap can also be referred to as 1/4"-18 NPT pipe tap, high carbon steel pipe tap, four-flute pipe tap, right-hand pipe threading tap, and carded pipe tap.

IRWIN has produced hand tools and power tool accessories for specialty trades since 1885, with Hanson among its brands for taps, dies, and threading tools.

Q: How many taps are sold under part number 8203?
A: The selling unit is one carded pipe tap.

Q: What chamfer does the IRWIN 8203 use?
A: The plug tap has 8 to 10 chamfered threads.

Q: What is the taper rate of the pipe thread?
A: The thread tapers at a rate of 3/4" per foot.
