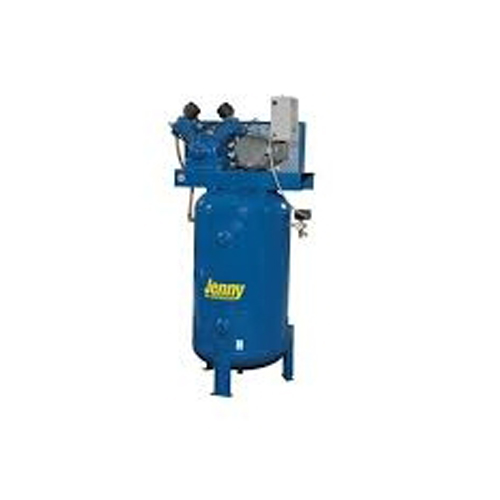

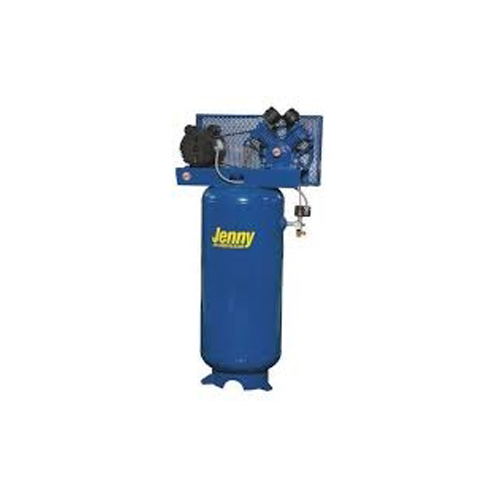

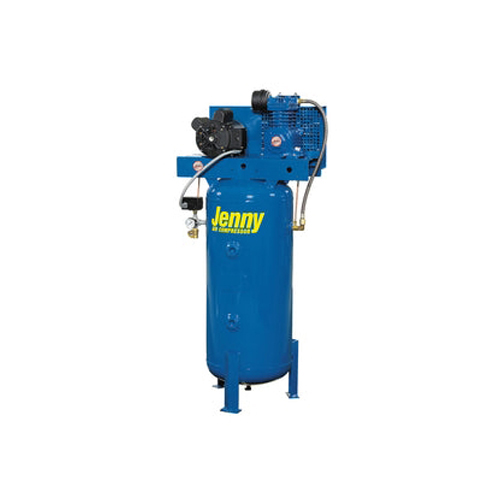

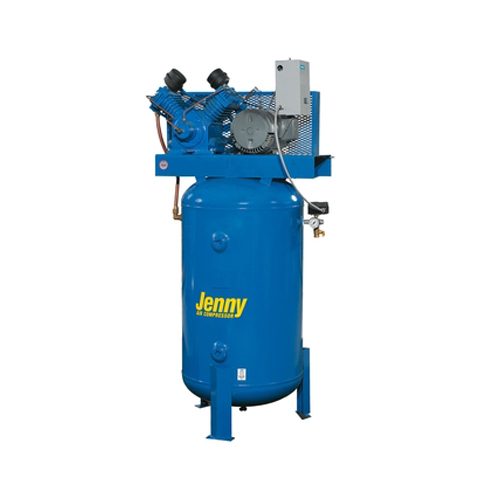

Jenny Products W5B-80V-230/1 Two Stage Electric Air Compressor, 5 HP, 80 Gallon Vertical, 175 PSI, 230 V Single Phase

Jenny Products W5B-80V-230/1 Two Stage Electric Air Compressor, 5 HP, 80 Gallon Vertical, 175 PSI, 230 V Single Phase

• Jenny Products W5B-80V-230/1 is a two stage electric air compressor with a 5 HP motor and an 80 gallon vertical tank for shop air supply. Rated to 175 psi with about 17.5 cfm free air delivery, it is a complete compressor package for stationary use, not a replacement part for another SKU.
• Features:
  • 5 HP, 230 V single phase power with magnetic starter included for dependable starting and integration on dedicated shop circuits
  • Approx. 17.5 cfm free air delivery and 175 psi max pressure support multiple pneumatic tools and sustained duty cycles
  • 80 gallon vertical ASME tank helps reduce cycling and provides longer run intervals between starts
  • Splash lubricated, belt driven W series pump designed for durable, serviceable operation in shop environments
  • Auto start/stop control with on pressure set around 145 psi and 1/2 inch FNPT outlet simplifies system hookup; general compressor, not a replacement part
• Specifications:
  • Manufacturer: Jenny Products
  • Part Number: W5B-80V-230/1
  • Alternate Part Numbers / Cross References: JEW5B80V-1-230; W5B80V-1-230
  • Category: Air Compressors; Subcategory: Stationary Two Stage; Product Type: Vertical tank reciprocating compressor
  • Horsepower: 5 HP
  • Power Supply: 230 V, single phase
  • Max Pressure: 175 psi
  • Free Air Delivery: approx. 17.5 cfm at max pressure
  • Tank Size and Orientation: 80 gallon, vertical
  • Pump: Jenny W series; Pump Speed: approx. 760 rpm
  • Lubrication: Splash lubricated
  • Outlet: 1/2 inch FNPT
  • Controls: Auto start/stop; on pressure about 145 psi
  • System Compatibility / Application: Stationary shop compressed air supply; complete compressor, not a replacement part for a specific SKU
• The two stage air compressor can also be referred to as 80 gallon air compressor, 5 hp vertical air compressor, stationary two stage compressor, 230 volt single phase compressor, and W5B-80V air compressor.

Jenny Products manufactures industrial and commercial reciprocating air compressors, offering stationary and portable two stage units for professional shop and facility use.

Q: Does this model include a magnetic starter?
A: Yes. Distributors list a magnetic starter as included on this 5 HP single phase configuration.

Q: What electrical supply is required?
A: 230 volt single phase power is required. A dedicated circuit and installation by a qualified electrician are recommended to meet local codes and starting current needs.

Q: What is the outlet size?
A: The outlet is 1/2 inch FNPT for connecting to your shop air distribution or regulator assembly.
