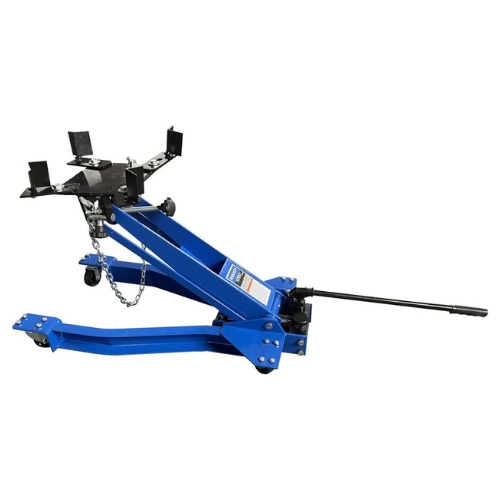

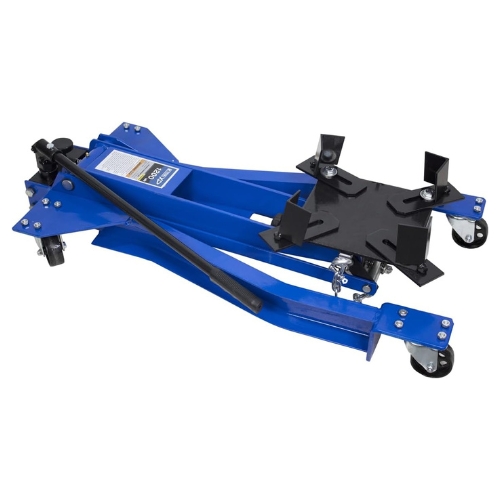

K-Tool International XD63515 Low Profile Transmission Jack, 1200 Pound Capacity, 7 to 31.5 Inch Lift Range, Saddle Tilt Plus or Minus 10 Degrees, Built In Bypass System
K-Tool International XD63515 Low Profile Transmission Jack, 1200 Pound Capacity, 7 to 31.5 Inch Lift Range, Saddle Tilt Plus or Minus 10 Degrees, Built In Bypass System
- K-Tool International XD63515 is a low profile transmission jack for positioning, removing, and installing transmissions in shop environments. It supports 1200 pounds, offers a 7 to 31.5 inch lift range with a saddle that tilts plus or minus 10 degrees, and includes a built in bypass system to help prevent over extension. This is a general purpose underhoist jack for automotive service; it is not a replacement part for a specific vehicle.
- Features:
- 1200 pound capacity with low profile chassis enables service on low clearance vehicles while maintaining strong lifting support
- 7 to 31.5 inch lift range provides working height flexibility for removal and installation tasks under lifts or on ramps

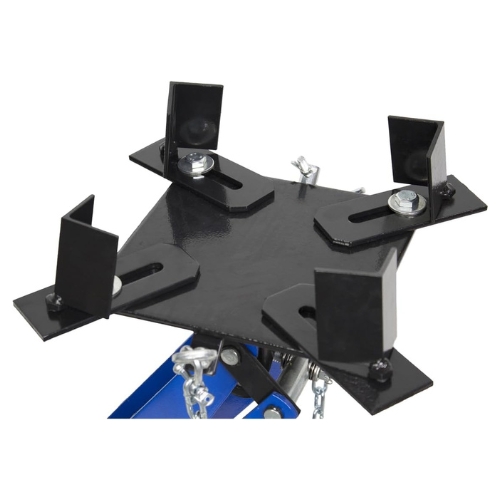

- Saddle tilt plus or minus 10 degrees with adjustable head plate aids precise alignment to reduce rework during installation

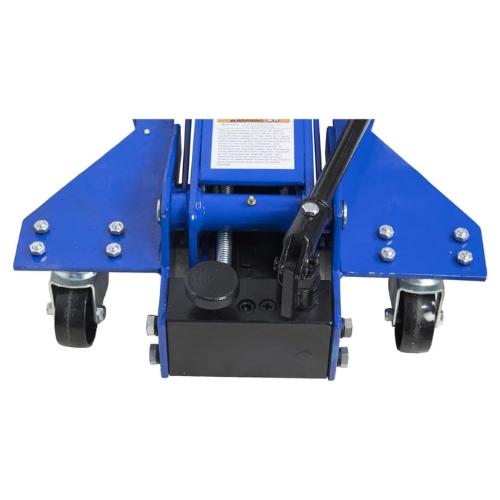

- Built in bypass system helps protect the hydraulic circuit by preventing ram over extension during operation
- Load restraining chain improves security of the transmission on the saddle during lifting and lowering
- General service transmission jack for automotive shops; not a model specific replacement part
- Specifications:
- Manufacturer: K-Tool International
- Part Number: XD63515
- Capacity: 1200 pounds
- Lift Range: 7 inch minimum height to 31.5 inch maximum height
- Saddle Tilt: Plus or minus 10 degrees
- Maximum Lifting Head Size: 15.5 inch by 15.5 inch
- Chassis Dimensions: Approximately 33 inch length by 19.7 inch width

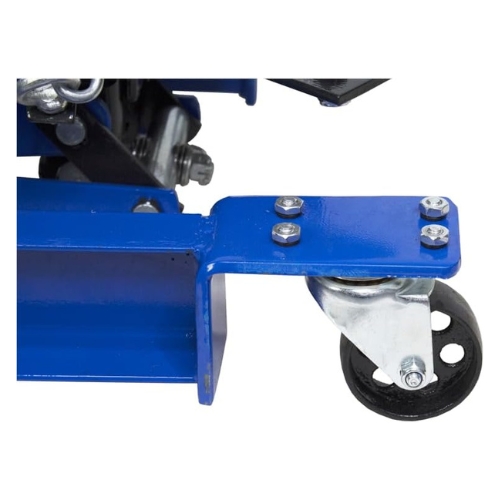

- Wheels and Casters: Steel wheels with full swivel ball bearing casters
- Safety Features: Built in bypass system; load restraining chain
- Compliance: Meets or exceeds ASME PASE 2019
- Color: Blue
- System Compatibility or Application: Underhoist transmission handling and alignment in automotive service bays; not a replacement part
- The Low Profile Transmission Jack can also be referred to as 1200 pound transmission jack, low profile underhoist transmission jack, adjustable saddle transmission jack, automotive transmission jack, and shop transmission jack.
K-Tool International supplies professional shop equipment for automotive maintenance and repair. Model XD63515 combines a low profile design, adjustable tilting saddle, and protective bypass system to support accurate alignment and dependable transmission handling in service bays.
Q: What is the lift range of this jack?
A: The lift range is 7 inch minimum to 31.5 inch maximum, supporting work on a wide variety of vehicles.
Q: How much can the saddle tilt for alignment?
A: The saddle tilts plus or minus 10 degrees to help match angles during removal and installation.
Q: What safety features are included?
A: The jack uses a built in bypass system to help prevent ram over extension and includes a load restraining chain to secure the transmission on the saddle.
