K-Tool International 77734 Industrial Oscillating Pedestal Fan, 30 Inch, 1/2 HP Motor, 3 Speeds 5320/4272/2880 CFM, Height Adjusts to 76 Inch, 120 Volt, cUL Listed, Black

K-Tool International 77734 Industrial Oscillating Pedestal Fan, 30 Inch, 1/2 HP Motor, 3 Speeds 5320/4272/2880 CFM, Height Adjusts to 76 Inch, 120 Volt, cUL Listed, Black

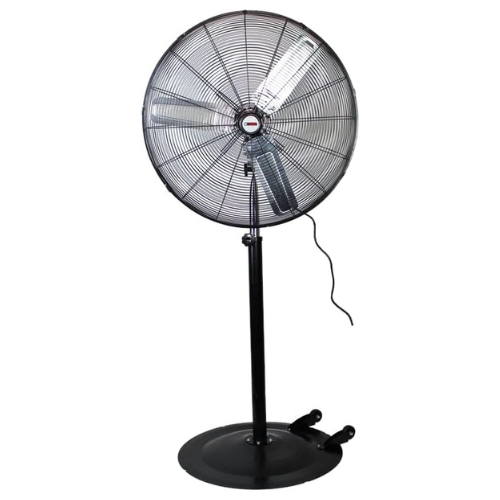

• K-Tool International 77734 is a 30 inch industrial oscillating pedestal fan for high velocity cooling and ventilation. A 1/2 HP motor drives a direct drive, three blade aluminum prop with three speeds, and the pedestal adjusts up to 76 inch. This is a standalone fan, not a replacement part.
• Features:
  • 1/2 HP energy efficient motor delivers strong airflow for large shops and warehouses while supporting continuous duty performance

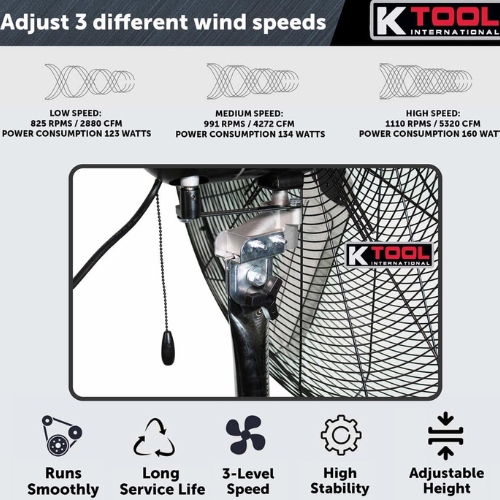

  • Three speed operation with 5320 CFM high, 4272 CFM medium, and 2880 CFM low matches airflow to changing conditions
  • Direct drive, three blade aluminum prop provides even airflow and quieter operation compared with many belt drive designs
  • Oscillating head improves coverage across work areas to accelerate cooling and air circulation
  • Pedestal height adjusts up to 76 inch and two base casters aid positioning around the facility
  • cUL listed for electrical safety; designed for industrial, commercial, and shop use
• Specifications:
  • Manufacturer: K-Tool International
  • Part Number: 77734
  • Fan Diameter: 30 inch

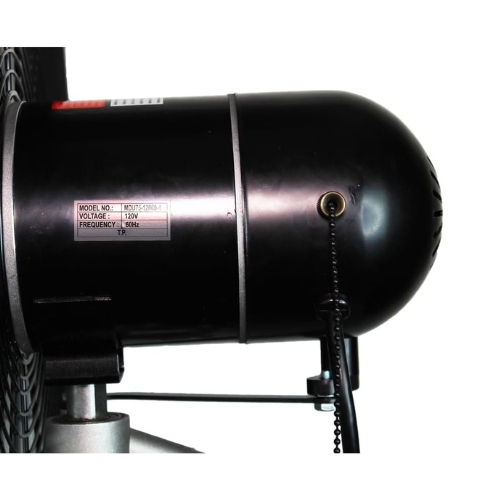

  • Motor: 1/2 HP
  • Airflow (CFM): High 5320; Medium 4272; Low 2880
  • Drive Type: Direct drive; three blade aluminum propeller
  • Oscillation: Yes

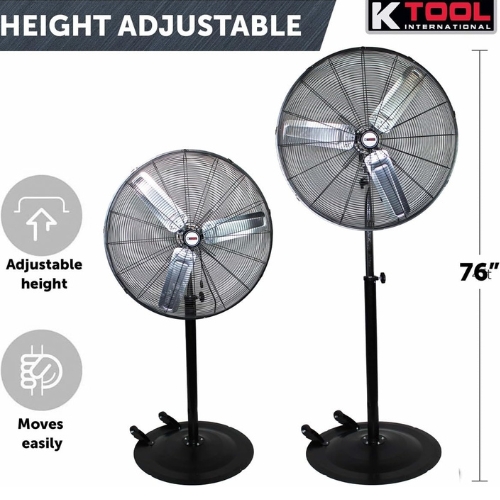

  • Height: Adjustable up to 76 inch
  • Electrical: 120 volt, 60 Hz; 1.34 amp
  • Power Cord: 6 foot length with cord wrap

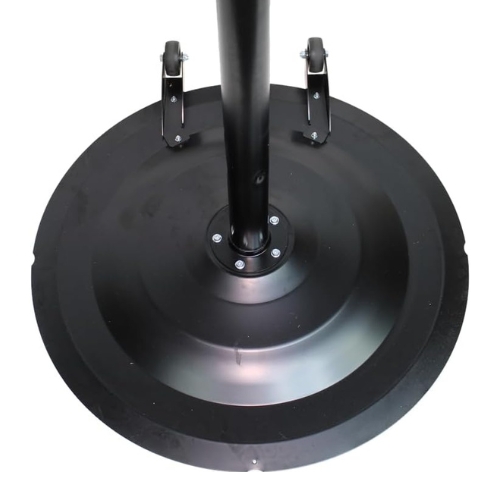

  • Mobility: Two casters at base for easy movement
  • Finish / Color: Black powder coat
  • Approximate Dimensions and Weight: 38 inch x 32.3 inch x 8 inch; 47 pounds
  • Approvals: cUL listed
  • System Compatibility / Application: Industrial pedestal fan for ventilation and cooling in warehouses, shops, gyms, barns, and greenhouses; not a replacement part
• The 30 inch industrial oscillating pedestal fan can also be referred to as industrial pedestal fan, 3 speed pedestal fan, high velocity shop fan, adjustable height pedestal fan, and oscillating warehouse fan.

K-Tool International supplies industrial ventilation and shop equipment for commercial and automotive facilities. Model 77734 pairs a direct drive 1/2 HP motor, oscillation, and adjustable pedestal height to deliver reliable, high volume airflow for large spaces.

Q: What airflow does each speed provide?
A: High delivers 5320 CFM, medium 4272 CFM, and low 2880 CFM to suit different cooling and ventilation needs.

Q: What power does the fan require?
A: It operates on 120 volt, 60 Hz power and draws about 1.34 amp on the nameplate rating.

Q: How high can I set the pedestal and is it easy to move?
A: The pedestal adjusts up to 76 inch, and the base includes two casters to help reposition the fan around your facility.
