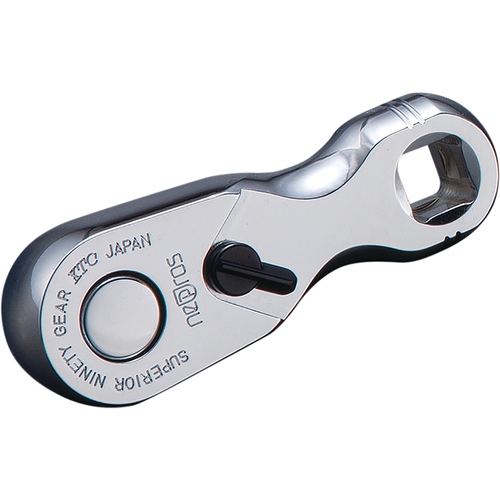

NEPROS NBR390AH 3/8" Drive Stubby Ratchet Handle, 90 Tooth, 74.5mm Length, 4 Degree Feed Angle

NEPROS NBR390AH 3/8" Drive Stubby Ratchet Handle, 90 Tooth, 74.5mm Length, 4 Degree Feed Angle

• Ultra-compact professional ratchet for automotive and mechanical fastening where conventional handles have insufficient clearance. The short body and compact head provide access around obstructions while the fine-tooth mechanism requires minimal handle movement.
• Features:
  • Precision 8-step claw mechanism maintains drive strength within the compact ratchet head.
  • Push-button union mechanism retains the socket until the release button is pressed.
  • Rounded handle profile incorporates a slip-resistant gripping surface.
  • Ratchet mechanism accepts NEPROS NBR390A-K repair kit for service.
• Specifications:
  • Manufacturer: NEPROS
  • Part Number: NBR390AH
  • Drive: 3/8"
  • Gear Teeth: 90
  • Feed Angle: 4 degrees
  • Overall Length: 74.5mm
  • Head Width: 26mm
  • Head Thickness: 14mm
  • Product Weight: 135g
  • Release Type: Push Release
  • Repair Kit: NBR390A-K
• The NEPROS Stubby Ratchet Handle can also be referred to as 3/8" drive stubby ratchet, compact socket ratchet, 90 tooth ratchet handle, short automotive ratchet, and fine tooth ratchet.

NEPROS is Kyoto Tool Co., Ltd.'s premium hand tool brand, launched in 1995 after five years of development for automotive maintenance professionals. The brand emphasizes advanced materials, precision manufacturing, ergonomic design, and professional hand tool performance.

Q: How are sockets released from the NEPROS NBR390AH?
A: Press the push button to release the socket from the union retention mechanism.

Q: Is the NEPROS NBR390AH ratchet mechanism serviceable?
A: Yes. NEPROS repair kit NBR390A-K is specified for the ratchet mechanism.

Q: What are the head dimensions of the NEPROS NBR390AH?
A: The head measures 26mm wide and 14mm thick.
