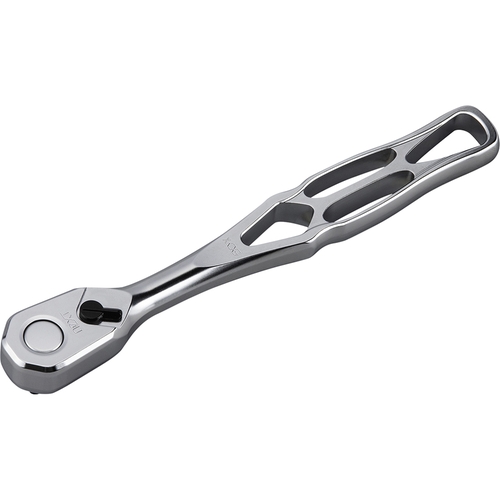

NEPROS NBR390X neXT 3/8" Drive Ratchet Handle, 90 Tooth, 4 Degree Feed Angle, 180mm Length

NEPROS NBR390X neXT 3/8" Drive Ratchet Handle, 90 Tooth, 4 Degree Feed Angle, 180mm Length

• Professional socket ratchet for automotive and mechanical fastening in restricted work areas. Its topology-optimized body combines a compact head, balanced handle geometry, and fine ratcheting action for controlled operation around surrounding components.
• Features:
  • Topology-optimized X-frame structure distributes operational load throughout the ratchet body while reducing excess material.
  • Precision 8-stage claw mechanism works with the 90 tooth gear system.
  • Shot-peened surface treatment increases surface hardness and resistance to scratches.
  • Push-button union mechanism retains the socket until the release button is pressed.
• Specifications:
  • Manufacturer: NEPROS
  • Part Number: NBR390X
  • UPC: 4989433616308
  • Drive: 3/8"
  • Gear Teeth: 90
  • Feed Angle: 4 degrees
  • Overall Length: 180mm
  • Head Width: 25.5mm
  • Head Thickness: 14mm
  • Handle Diameter: 23mm
  • Product Weight: 210g
• The NEPROS neXT Ratchet Handle can also be referred to as 3/8" drive ratchet, 90 tooth socket ratchet, fine tooth ratchet handle, quick release automotive ratchet, and professional mechanic ratchet.

NEPROS is a professional hand tool brand of Kyoto Tool Co., Ltd. Its product range includes precision ratchets, sockets, wrenches, screwdrivers, pliers, and other automotive and industrial hand tools.

Q: How are sockets released from the NEPROS NBR390X?
A: Press the push button to release the socket from the union retention mechanism.

Q: What surface treatment is used on the NEPROS NBR390X?
A: The ratchet uses a ceramic bead shot-peening treatment that increases surface hardness and resistance to scratching.

Q: Is the ratchet mechanism serviceable?
A: Yes. NEPROS offers the NBR390X-K head repair kit for this ratchet.
