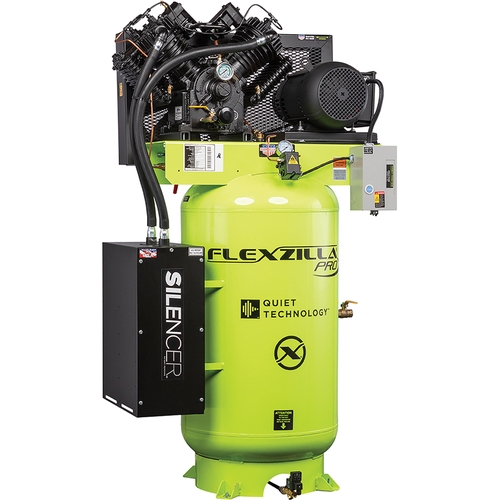

Legacy FXS10V080V1 Flexzilla Pro Air Compressor with Silencer Technology, 10 HP, 80 Gallon, 1-Phase, 2-Stage

Legacy FXS10V080V1 Flexzilla Pro Air Compressor with Silencer Technology, 10 HP, 80 Gallon, 1-Phase, 2-Stage

• Legacy FXS10V080V1 is a stationary vertical piston air compressor for shop compressed-air supply and pneumatic equipment. Its quiet-focused Silencer configuration, automatic tank drain, and continuous-run setup serve professional service bays that need high-volume compressed air.
• Features:
  • Silencer noise suppression reduces low frequency noise levels, and Quiet Technology operates no louder than a normal conversation.
  • Low-rpm pump and motor configuration reduces high frequency noise levels while increasing CFM output.
  • Automatic tank drain, belt tensioner, continuous run dual control, and Cool Flow Technology are included.
  • Prewired magnetic starter, totally enclosed fan-cooled motor, and ball valve crankcase oil drain are part of the stationary compressor configuration.
  • Installation guidance calls for a clean, dry, well-lit area with at least 15" of clearance.
• Specifications:
  • Manufacturer: Legacy
  • Part Number: FXS10V080V1
  • Product Type: Stationary Vertical Piston Air Compressor
  • Brand: Flexzilla Pro
  • Technology: Silencer Technology
  • Motor Power: 10 HP
  • Tank Capacity: 80 gallons
  • Compressor Stages: 2-stage
  • Phase: 1-phase
  • Voltage: 208V/230V
  • Max Pressure: 175 psi
  • Air Delivery: 39 CFM at 90 psi; 34 CFM at 175 psi
  • Motor RPM: 1750
  • Pump Model: APP4V1043T
  • Pump RPM: 800
  • Outlet Connection: 3/4" NPT
  • Dimensions: 38" x 42" x 72"
  • Tank Type: Vertical
  • Additional Features: Automatic tank drain, belt tensioner, continuous run dual control, Cool Flow Technology
• The Legacy FXS10V080V1 Flexzilla Pro Air Compressor can also be referred to as stationary air compressor, vertical air compressor, 80 gallon air compressor, two-stage air compressor, and 1-phase shop compressor.

Legacy Manufacturing Company is an international work products company based in Marion, Iowa. Its Flexzilla brand covers hoses, air compressors, air tools, extension cords, grease guns, and related shop equipment.

Q: What air delivery does this compressor provide?
A: The compressor is rated at 39 CFM at 90 psi and 34 CFM at 175 psi.

Q: What electrical service does this model require?
A: It is a 1-phase compressor rated for 208V/230V power. Confirm 1-phase service before ordering or installation.

Q: How much clearance should be left around the compressor?
A: Install it with the pulley toward the wall and leave at least 15" of clearance.
