Lincoln 4417 Grease Pump Assembly with Dolly, 40 to 1 Ratio, For 120 Pound Drums, 7 Foot High Pressure Hose, Control Valve, Universal Swivel, Coupler, Follower Plate Lincoln Industrial LIN.4417
View Larger

Lincoln 4417 Grease Pump Assembly with Dolly, 40 to 1 Ratio, For 120 Pound Drums, 7 Foot High Pressure Hose, Control Valve, Universal Swivel, Coupler, Follower Plate

Item # LIN.4417
$1,150.72
Quantity:      On Hand: 8QTY_CHECK:8-net:-DB:8-VSTOCK:0  Sold As: each


Lincoln Industrial
More Products from Lincoln Industrial

  Add to Shopping List
  Save For Later


Overview



Lincoln 4417 Grease Pump Assembly with Dolly, 40 to 1 Ratio, For 120 Pound Drums, 7 Foot High Pressure Hose, Control Valve, Universal Swivel, Coupler, Follower Plate

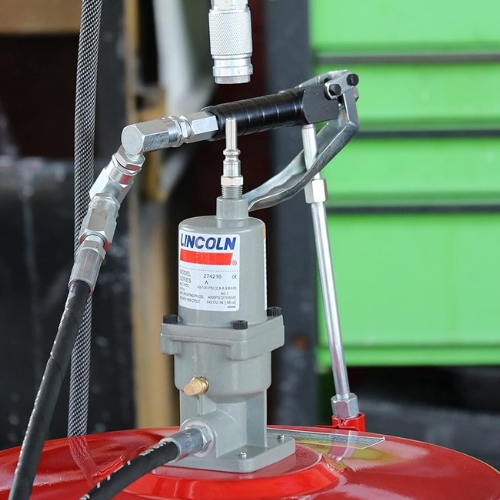

  • Lincoln 4417 pneumatic single acting grease pump assembly for 120 pound drums delivers high pressure lubrication with a 40 to 1 ratio. It includes a drum cover, band dolly with four casters, and a delivery kit for ready to use dispensing. This is a complete pump assembly, not a replacement part.
  • Features:
    • 40 to 1 pumping ratio provides up to 4000 psi grease outlet pressure for reliable lubrication at fittings with back pressure
    • Delivery kit with control valve, universal swivel, coupler, and 7 foot hose enables one hand operation and quick setup
    • Band dolly with four casters improves shop mobility and positioning around equipment
    • Flexible follower plate helps maintain prime and reduce aeration for consistent flow
    • Designed for 120 pound refinery drums; this SKU is a complete assembly for dispensing and not a replacement part
  • Includes:
    • 40 to 1 value series air operated grease pump
    • Drum cover
    • High pressure grease control valve
    • Universal swivel
    • Grease coupler
    • 7 foot high pressure connecting hose
    • Flexible follower plate
    • Band dolly with four casters
  • Specifications:
    • Manufacturer: Lincoln Industrial
    • Part Number: 4417
    • Pressure Ratio: 40 to 1
    • Maximum Grease Output Pressure: 4000 psi
    • Air Supply Range: 40 to 100 psi
    • Air Inlet: 1/4 inch NPT female
    • Lube Outlet: SAE 6 O ring port
    • Free Delivery: 5 cubic inches per minute
    • Hose Length: 7 foot
    • Container Compatibility: 120 pound drum
    • Dolly: Band type with four casters
    • System Compatibility / Application: Portable high pressure grease dispensing from 120 pound refinery drums in automotive and industrial maintenance; not a replacement part
  • The Lincoln 4417 Grease Pump Assembly with Dolly can also be referred to as pneumatic grease pump, 40 to 1 grease pump, 120 pound drum grease pump, grease pump with dolly, and Lincoln grease pump kit.



Lincoln Industrial designs lubrication equipment and systems for professional maintenance applications. Model 4417 combines a value series air operated pump, delivery kit, follower plate, and band dolly to provide dependable, mobile grease dispensing from 120 pound drums.



Q: What connection sizes are provided?
A: The air inlet is 1/4 inch NPT female and the lube outlet is an SAE 6 O ring port.



Q: What pressure and air requirements apply?
A: The pump operates on 40 to 100 psi air and delivers up to 4000 psi grease outlet pressure through the 40 to 1 ratio.



Q: What components are included in the kit?
A: The assembly includes the 40 to 1 pump, drum cover, high pressure control valve, universal swivel, coupler, 7 foot hose, flexible follower plate, and a band dolly with four casters.
