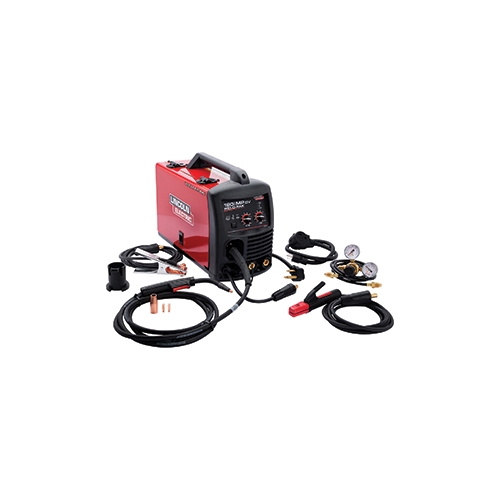

Lincoln Electric K5257-1 WELD-PAK 180i MP DV Multi-Process Welder, MIG, Flux-Cored, Stick, DC TIG, 120/230 V

Lincoln Electric K5257-1 WELD-PAK 180i MP DV Multi-Process Welder, MIG, Flux-Cored, Stick, DC TIG, 120/230 V

• This dual-voltage inverter welder combines wire, stick, and DC TIG processes in a portable machine for fabrication, maintenance, repair, farm, autobody, and light construction applications.
• Features:
  • Output ranges are 30-180 A MIG, 10-165 A DC TIG, and 25-160 A Stick.
  • Single-button process selection and two-knob adjustment simplify setup between welding processes.
  • Solid brass gun connection and connectors maximize electrical connection, while the aluminum wire drive uses an enclosed gearbox.
  • Built-in thermal protection protects internal components from excessive operating temperature.
  • Magnum 100SG spool gun, TIG torch, and TIG foot pedal are sold separately.
• Includes:
  • WELD-PAK 180i MP DV welder
  • Magnum 100L MIG gun (K5342-1)
  • 200 A stick electrode holder (KH520)
  • 300 A ground clamp (KH525)
  • 6' work cable with DINSE style connector
  • 230 V to 120 V adapter (9SS35587)
  • Shielding gas regulator and 6' hose (KH738)
  • Wire spool adapter (KH720)
  • 0.025", 0.030", and 0.035" contact tips
  • MIG gas nozzle (KH725)
  • Gasless nozzle for flux-cored welding (KH726)
• Specifications:
  • Manufacturer: Lincoln Electric
  • Part Number: K5257-1
  • Welding Processes: MIG, Flux-Cored, Stick, DC TIG
  • Input Power: 120/230 V, single phase, 60 Hz
  • MIG Output Range: 30-180 A
  • DC TIG Output Range: 10-165 A
  • Stick Output Range: 25-160 A
  • Wire Feed Speed: 40-500 ipm
  • Dimensions: 13.6" x 8.9" x 18.1"
• The Lincoln Electric WELD-PAK 180i MP DV can also be referred to as multi-process welder, dual-voltage welder, MIG TIG stick welder, flux-cored welder, and 180 amp inverter welder.

Lincoln Electric, founded in 1895 and headquartered in Cleveland, Ohio, develops and manufactures welding, cutting, brazing, automation, and metal fabrication technologies for industrial and professional applications.

Q: Is a spool gun included with the K5257-1?
A: No. The Magnum 100SG spool gun is sold separately for aluminum welding.

Q: Are the TIG torch and foot pedal included?
A: No. The TIG torch and TIG foot pedal are optional accessories.

Q: Can the WELD-PAK 180i MP DV run on both 120 V and 230 V power?
A: Yes. The machine operates from 120 V or 230 V single-phase power, and a 230 V to 120 V adapter is included.

Q: What welding processes does the machine perform?
A: It performs MIG, flux-cored, stick, and DC TIG welding.
