Makita 763625-8 Collet Cone, 1/4" Shank, Replacement for GD0601 Die Grinder

Makita 763625-8 Collet Cone, 1/4" Shank, Replacement for GD0601 Die Grinder

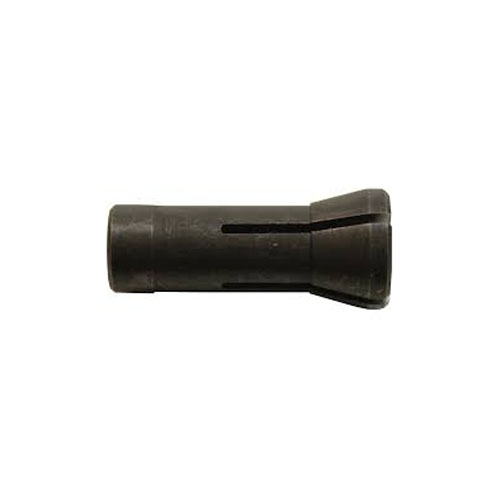

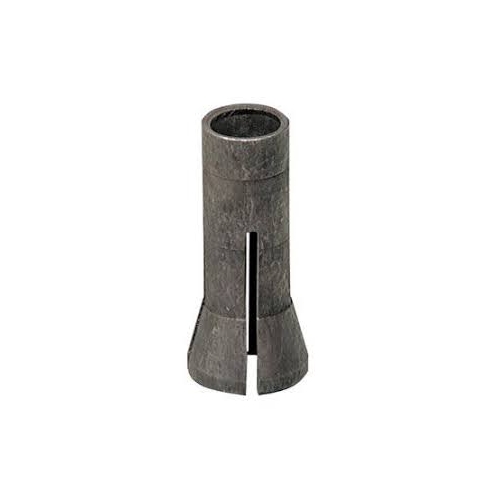

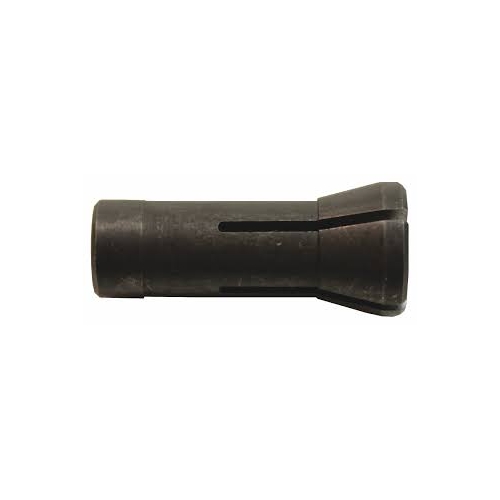

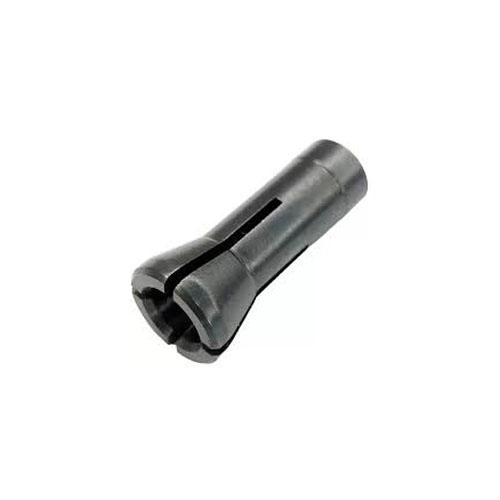

• Makita 763625-8 is a collet cone replacement part designed for compatible Makita die grinders, including the GD0601. This 1/4" collet cone is used to grip 1/4" shank accessories for grinding, sanding, and polishing tasks, helping restore proper accessory retention when the original collet cone is worn.
• Features:
  • 1/4" collet cone size supports use with common 1/4" shank die grinder accessories for grinding, sanding, and polishing.
  • Replacement collet cone for Makita GD0601 and other compatible die grinder models helps restore correct accessory fit.
  • Diameter 6.35 mm (1/4") matches the specified collet size for the listed tool applications.
  • Quantity of 1 supports single-part replacement without adding an Includes section.
  • Alternate ordering number MP763625-8 supports distributor catalog cross-referencing for the same item.
• Specifications:
  • Manufacturer: Makita
  • Part Number: 763625-8
  • Product Name: Collet Cone
  • Alternate Part Numbers / Cross References: MP763625-8
  • Category: Collets
  • Subcategory: Collet Cones
  • Product Type / Function: Collet cone for holding 1/4" shank accessories in compatible die grinders
  • Size: 6.35 mm (1/4")
  • Quantity: 1
  • Compatible Collet Nut for GD0601: 763664-8
  • System Compatibility / Application: Replacement collet cone designed for Makita die grinder models 906, 906H, GD0600, GD0601, and GD0603
• The Collet Cone can also be referred to as 1/4" collet cone, die grinder collet cone, Makita collet cone, GD0601 collet cone, and 763625-8 collet.

Makita is a global manufacturer of professional power tools and accessories used in construction, metalworking, and industrial maintenance. The brand supports tool service and uptime with OEM parts and accessory systems designed around specific tool platforms.

Q: Which tools is Makita 763625-8 designed to fit?
A: It is listed as compatible with Makita die grinder models 906, 906H, GD0600, GD0601, and GD0603.

Q: What shank size accessories does this collet cone hold?
A: It is a 1/4" collet cone intended to grip 1/4" shank die grinder accessories.

Q: Is MP763625-8 a different part than 763625-8?
A: MP763625-8 is used as an alternate ordering number in some distributor systems for the Makita 763625-8 collet cone.

Q: Do I need a separate collet nut for GD0601?
A: Yes. The GD0601 parts listing shows the collet nut as a separate part number, and the matching collet nut for GD0600 and GD0601 is 763664-8.
