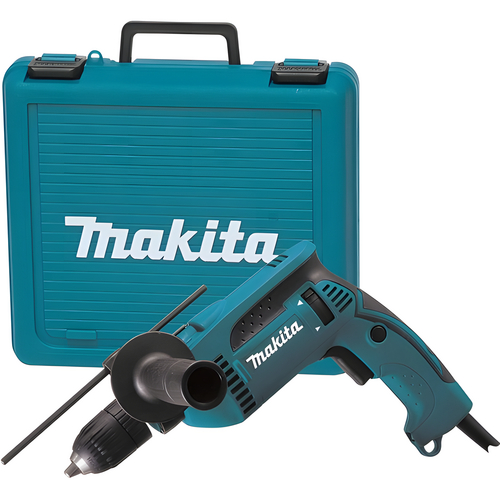

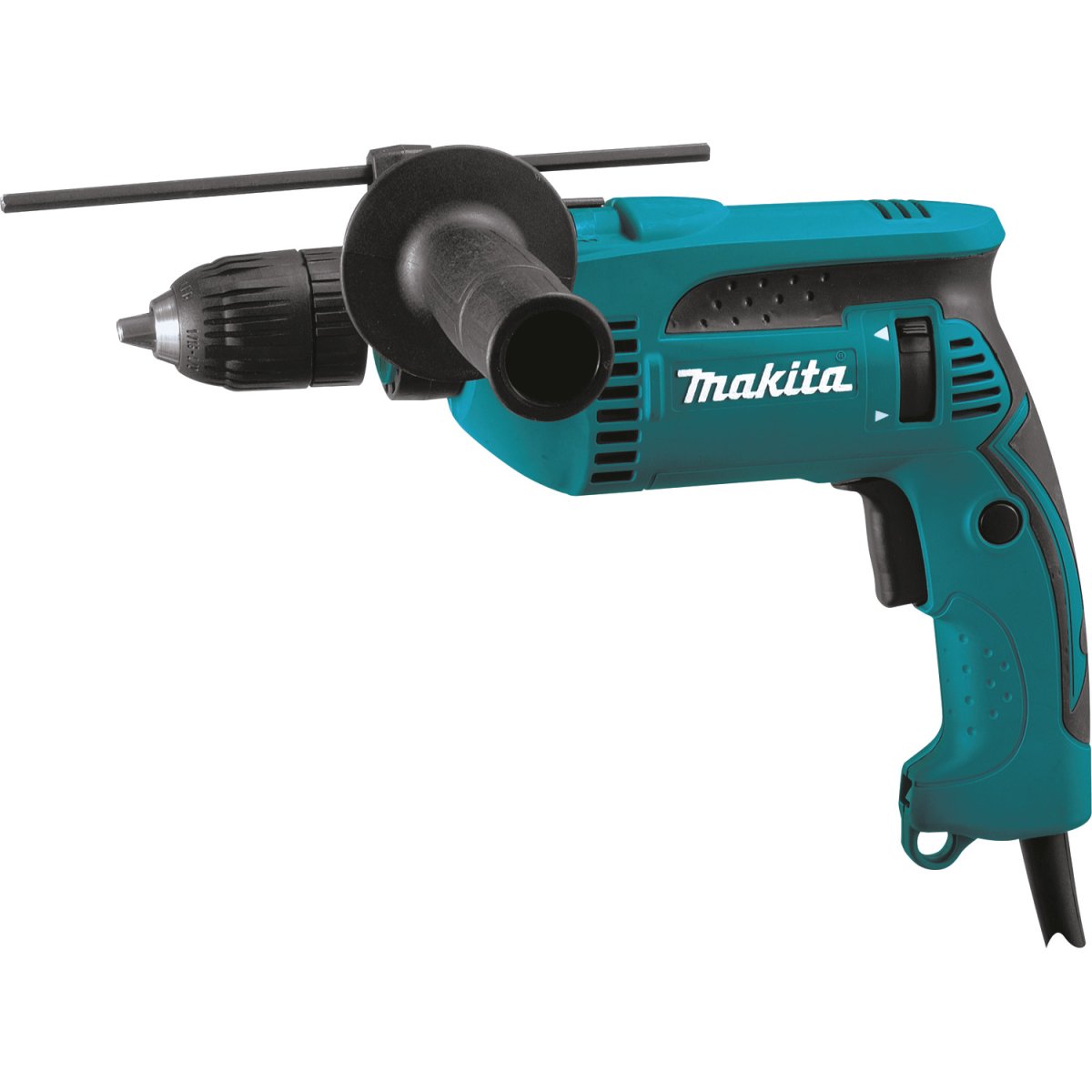

Makita HP1641K Hammer Drill Kit, 6.0 Amp, 5/8" Capacity, Keyless Chuck, Carrying Case

Makita HP1641K Hammer Drill Kit, 6.0 Amp, 5/8" Capacity, Keyless Chuck, Carrying Case

• Makita HP1641K is a corded hammer drill kit designed for rotation-only drilling or hammer drilling with rotation. It delivers up to 0 to 2,800 RPM and 0 to 44,800 impacts per minute, and includes a keyless chuck, depth gauge, side handle, and carrying case.
• Features:
  • 2-mode operation (hammer and rotation or rotation only) supports masonry hammer drilling and standard drilling tasks.

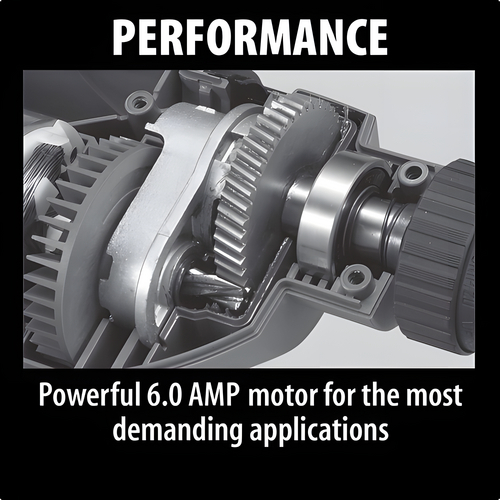

  • 6.0 amp, variable speed motor provides control up to 0 to 2,800 RPM and 0 to 44,800 impacts per minute for demanding applications.
  • Maximum drilling capacities of 5/8 inch in concrete, 1/2 inch in steel, and 1-3/16 inch in wood cover common jobsite materials.
  • 1/2 inch keyless chuck speeds bit changes and supports 5/8 inch concrete bits with a 1/2 inch reduced shank.
  • Lock-on button and reversible operation help maintain steady drilling during extended use and when backing out fasteners or bits.

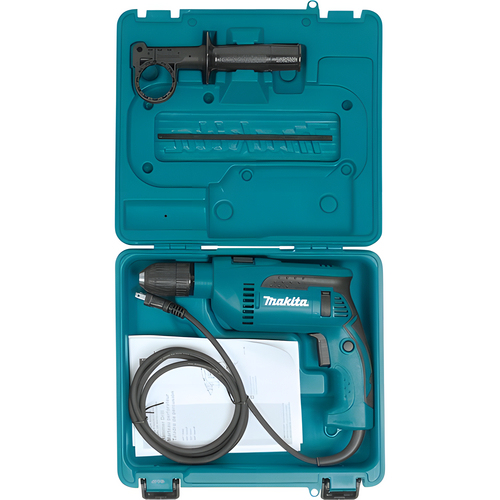

• Includes:
  • Keyless Drill Chuck (196193-0)
  • Side Handle (135302-6)
  • Depth Gauge (324219-0)
  • Plastic Carrying Case (824811-7)
• Specifications:
  • Manufacturer: Makita
  • Part Number: MPHP1641K
  • MPN: HP1641K
  • UPC: 088381096645
  • Alternate Part Numbers / Cross References: HP1641K
  • Power: 120 V, 6.0 A
  • Modes: Hammer and rotation, rotation only
  • No Load Speed: 0 to 2,800 RPM
  • Impacts Per Minute: 0 to 44,800 IPM
  • Maximum Drilling Capacity (Concrete): 5/8 inch
  • Maximum Drilling Capacity (Steel): 1/2 inch
  • Maximum Drilling Capacity (Wood): 1-3/16 inch
  • Chuck: 1/2 inch keyless
  • System Compatibility or Application: Designed for hammer drilling with rotation in masonry and rotation-only drilling in wood and steel
• The Makita Hammer Drill Kit can also be referred to as a corded hammer drill, percussion drill, variable speed hammer drill, masonry drill with keyless chuck, and hammer drill with carrying case.

Makita manufactures professional power tools and accessories for construction, woodworking, and industrial maintenance. The brand has more than 110 years of experience in motor engineering and more than 40 years in cordless technology, supporting jobsite and service applications worldwide.

Q: What are the maximum drilling capacities for this hammer drill kit?
A: The maximum drilling capacities are 5/8 inch in concrete, 1/2 inch in steel, and 1-3/16 inch in wood.

Q: What is included with Makita MPHP1641K?
A: The kit includes a keyless drill chuck (196193-0), side handle (135302-6), depth gauge (324219-0), and plastic carrying case (824811-7).

Q: How do I choose between rotation only and hammer drilling?
A: Use the mode selector to switch between rotation only for standard drilling and hammer and rotation for masonry drilling where impact action helps advance the bit.

Q: What bits fit the 1/2 inch keyless chuck?
A: The 1/2 inch keyless chuck accepts standard bits up to a 1/2 inch shank. for 5/8 inch concrete drilling, use a 5/8 inch masonry bit with a 1/2 inch reduced shank.
