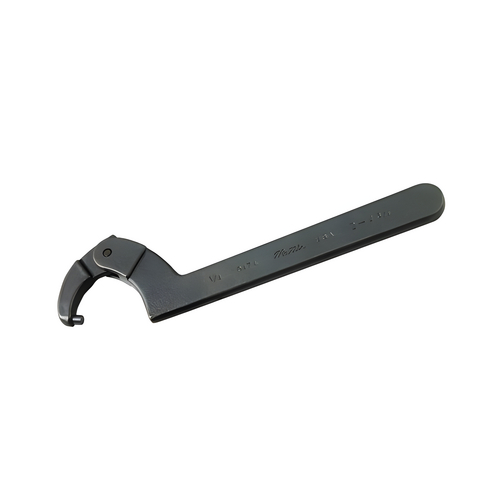

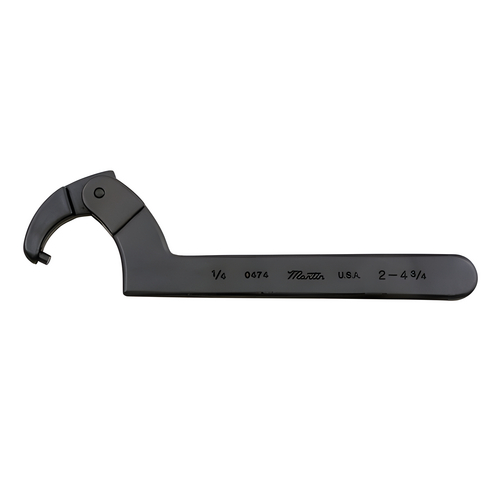

Martin tool MT0474 Adjustable Pin Spanner Wrench, 2 Inch to 4-3/4 Inch Capacity Range, 1/4 Inch Pin Diameter, for Packing Glands and Locknuts

Martin tool MT0474 Adjustable Pin Spanner Wrench, 2 Inch to 4-3/4 Inch Capacity Range, 1/4 Inch Pin Diameter, for Packing Glands and Locknuts

• Martin tool MT0474 is an adjustable pin spanner wrench designed for servicing packing glands, adjustable collars, rings, and locknuts that use holes or slots on the side of a flange or collar. It covers a 2 Inch to 4-3/4 Inch capacity range and uses a 1/4 Inch pin diameter for engagement.
• Features:
  • 2 Inch to 4-3/4 Inch capacity range helps cover several nut sizes with one adjustable spanner.
  • 1/4 Inch pin diameter is designed to fit into holes or slots on the side of a flange or collar for controlled engagement.
  • Drop forged steel construction supports durability for repeated service and maintenance use.
  • Industrial black finish provides a dark, non-reflective surface for shop and field work.
  • Intended application for servicing packing glands, adjustable collars, rings, and locknuts where a standard wrench cannot reach.
• Specifications:
  • Manufacturer: Martin Sprocket & Gear, Inc.
  • Part Number: MT0474
  • MPN: 0474
  • UPC: 697950141176
  • Category: Spanner Wrenches
  • Subcategory: Adjustable Pin Spanner
  • Product Type/Function: Adjustable pin spanner wrench for servicing collars, rings, and locknuts
  • Capacity Range: 2 Inch to 4-3/4 Inch
  • Pin Diameter: 1/4 Inch
  • Pin Length: 1/4 Inch
  • Overall Length: 11-3/16 Inch
  • Handle Thickness: 11/32 Inch
  • Hook Thickness: 17/32 Inch
  • Material: Steel
  • Process: Drop forged
  • Finish: Industrial black
  • System Compatibility or Application: Designed for servicing packing glands, adjustable collars, rings, and locknuts by engaging holes or slots on the side of a flange or collar, within a 2 Inch to 4-3/4 Inch capacity range
• The Adjustable Pin Spanner Wrench can also be referred to as adjustable pin spanner wrench, adjustable pin spanner, pin spanner wrench, spanner wrench, and packing gland spanner.

Martin Sprocket & Gear, Inc. manufactures industrial hand tools including spanner wrenches. Its spanner wrench line is made with USA steel and is manufactured in the USA, supporting maintenance and service applications that require specialized wrenching solutions.

Q: What size range does MT0474 cover?
A: MT0474 covers a 2 Inch to 4-3/4 Inch capacity range.

Q: What type of fasteners is this spanner wrench intended for?
A: It is designed for servicing packing glands, adjustable collars, rings, and locknuts that have holes or slots on the side of a flange or collar.

Q: What is the pin size on this adjustable pin spanner?
A: The pin diameter is 1/4 Inch and the pin length is 1/4 Inch.
