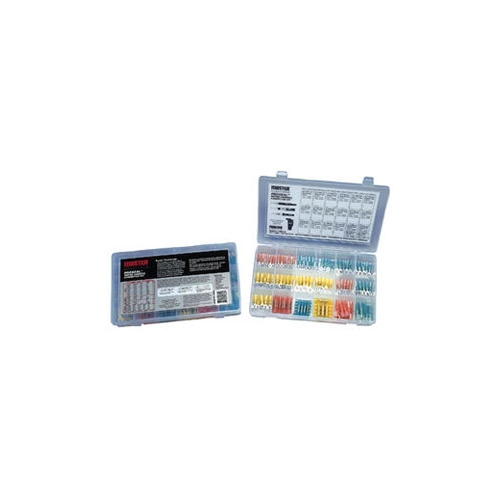

Master Appliance 10600 Proseal Crimp & Heat-Seal Connector Assortment Kit, 10-22 AWG, 20 Connector Types, 115 Pieces

Master Appliance 10600 Proseal Crimp & Heat-Seal Connector Assortment Kit, 10-22 AWG, 20 Connector Types, 115 Pieces

• Wire terminal assortment for changing, lengthening, and repairing electrical circuits in automotive, marine, agricultural, outdoor, and general electrical applications. Adhesive-lined heat-shrink tubing seals the crimped connections while maintaining wire support and strain relief.
• Features:
  • Translucent adhesive-lined polyolefin tubing permits visual inspection and creates a water- and contaminant-resistant seal.
  • Color-coded tubing carries wire gauge markings for connector identification.
  • Seamless butt connectors and brazed-seam ring and spade terminals resist barrel opening during crimping.
  • Heat-shrink tubing maintains its length during recovery for insulation and wire support.
  • UL voltage rating is 600 V.
• Includes:
  • 5 red 18-20 AWG #6 stud ring terminals
  • 5 red 18-20 AWG #10 stud ring terminals
  • 5 blue 14-16 AWG #8 stud ring terminals
  • 5 blue 14-16 AWG #10 stud ring terminals
  • 5 blue 14-16 AWG 1/4" stud ring terminals
  • 5 blue 14-16 AWG 3/8" stud ring terminals
  • 5 yellow 10-12 AWG #8 stud ring terminals
  • 5 yellow 10-12 AWG #10 stud ring terminals
  • 5 yellow 10-12 AWG 1/4" stud ring terminals
  • 5 yellow 10-12 AWG 3/8" stud ring terminals
  • 5 red 18-20 AWG #10 spade terminals
  • 5 blue 14-16 AWG #10 spade terminals
  • 5 yellow 10-12 AWG #10 spade terminals
  • 10 red 18-22 AWG butt connectors
  • 10 blue 14-16 AWG butt connectors
  • 10 yellow 10-12 AWG butt connectors
  • 5 red 18-20 AWG female 1/4" tab couplers
  • 5 red 18-20 AWG male 1/4" tab couplers
  • 5 blue 14-16 AWG female 1/4" tab couplers
  • 5 blue 14-16 AWG male 1/4" tab couplers
• Specifications:
  • Manufacturer: Master Appliance
  • Part Number: 10600
  • Product Type: Crimp & Heat-Seal Connector Assortment Kit
  • Wire Range: 10-22 AWG
  • Connector Types: Ring Terminals, Spade Terminals, Butt Connectors, Male Couplers, Female Couplers
  • Insulation Material: Adhesive-Lined Polyolefin Heat-Shrink Tubing
  • Voltage Rating: 600 V
  • Packaging Type: Case
  • Quantity: 115 pieces
• The Master Appliance 10600 Proseal Connector Assortment Kit can also be referred to as heat-shrink connector kit, crimp terminal assortment, sealed wire connector kit, automotive electrical connector kit, and wire terminal assortment kit.

Master Appliance Corp. is based in Racine, Wisconsin and has manufactured industrial heat tools since introducing its first industrial-quality heat gun in 1958. Its product range includes heat guns, soldering tools, torches, wire connectors, and heat-activated materials.

Q: How are the Proseal connectors installed?
A: Strip the wire, insert it into the connector crimp barrel, crimp the barrel, and apply heat until the tubing recovers and the adhesive melts and flows.

Q: What electrical applications are suited to this connector kit?
A: The connectors are suitable for automotive, marine, agricultural, outdoor, home repair, and other electrical wiring applications.
