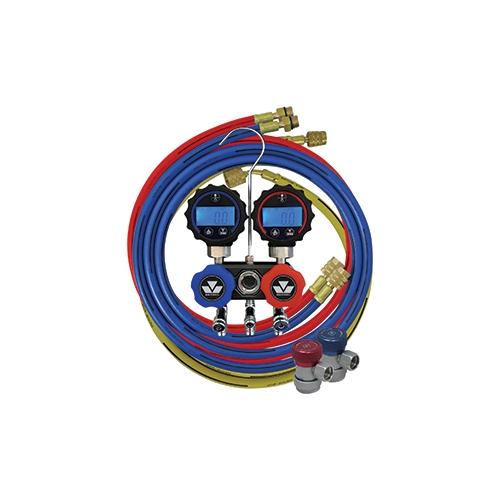

Mastercool 84472 Black Series Mini-Fold R134a Compact 2-Way Digital Manifold Gauge Set, 3-72" Hoses, R134a Manual Couplers, Zippered Case

Mastercool 84472 Black Series Mini-Fold R134a Compact 2-Way Digital Manifold Gauge Set, 3-72" Hoses, R134a Manual Couplers, Zippered Case

• Mastercool 84472 has a compact black anodized aluminum block with matte chrome fittings. It performs pressure/temperature calculations for up to 91 different refrigerants, converts between MPa, kPa, bar, psi, kg/cm2, and inHg, and has a large sight glass for quick visual refrigerant checks.
• Features:
  • Compact black anodized aluminum block with matte chrome fittings.
  • Performs pressure/temperature calculations for up to 91 different refrigerants.
  • Unit conversion between MPa, kPa, bar, psi, kg/cm2, and inHg.
  • Large sight glass for quick visual refrigerant checks.
  • Easy to grip knobs.
• Includes:
  • Compact manifold
  • 3 72" R134a hoses
  • R134a high side manual coupler (82834)
  • R134a low side manual coupler (82934)
  • Zippered carry case
• Specifications:
  • Manufacturer: Mastercool
  • Part Number: 84472
  • UPC: 700376844726
  • Product Type: Compact 2-way digital manifold gauge set
  • Refrigerant Application: R134a
  • Low Pressure Range: -14.5 to 500 psi (-0.1 to 3.4 MPa)
  • High Pressure Range: -14.5 to 800 psi (-0.1 to 5.5 MPa)
  • Resolution: 0.5 psi
  • Accuracy: +/-0.5% FS
  • Measurement Units: MPa, kPa, bar, psi, kg/cm2, inHg
  • Temperature Units: Celsius and Fahrenheit
  • Operating Temperature: -10 C to 60 C
  • Battery: CR2450
  • Battery Life: Approximately 6 months
  • Sampling Rate: 1 second
  • Display: 30 mm x 17 mm LCD
  • Blue Backlight: Auto-off after 6 seconds
  • Packaging Type: Zippered carry case
• The Black Series Mini-Fold R134a Compact 2-Way Digital Manifold Gauge Set can also be referred to as R134a digital manifold gauge set, compact 2-way manifold, automotive A/C manifold gauge set, R134a mini-fold manifold, and refrigerant pressure temperature manifold.

Mastercool is a family-owned company that supplies professional air conditioning service tools and equipment to the automotive and HVAC/R industries. Headquartered in Randolph, New Jersey, its quality management system complies with ISO 9001:2015.

Q: What pressure ranges does Mastercool 84472 measure?
A: The low pressure range is -14.5 to 500 psi, and the high pressure range is -14.5 to 800 psi.

Q: What battery does the digital manifold use?
A: The digital manifold uses a CR2450 battery with an approximate battery life of 6 months.

Q: What LCD warnings or indicators are shown?
A: The LCD shows over-range alarm indication, Celsius or Fahrenheit designation, and low battery warning.
