Mastercool 72475-PRC Universal Hydraulic Flaring Tool Set,Tube Cutter

Mastercool 72475-PRC Universal Hydraulic Flaring Tool Set,Tube Cutter

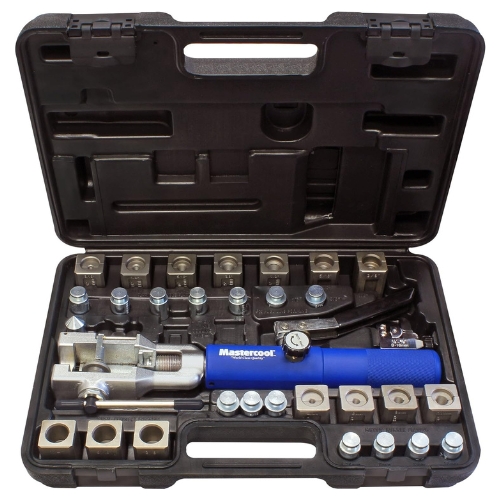

• The Mastercool 72475-PRC Universal Hydraulic Flaring Tool Set is a full-service hydraulic flaring kit by Mastercool; it produces single, double, 45degrees flares, Push Connect, GM fuel line, brake line, transmission line and metric bubble flares for 3/16, 1/4, 5/16, 3/8 and 1/2 inch or 4.75, 6, 8, 10 mm tubes, and includes Hydra-Flare yoke & pump, cone, adapters, dies, and a mini tube cutter.
• Features:
  • Hydraulic ram system reduces manual force and ensures consistent, leak-proof flares in hard metals like annealed stainless steel, terne plate steel, soft copper, and soft aluminum.
  • Includes tube and die set stabilizing arm and magnetic adapter holder to aid alignment and maintain adapter position during flare forming.
  • Enlarged die set compression area for better grip on dies and adapters, minimizing slippage and improving flare consistency.
  • Custom molded plastic storage box organizes all components including dies, adapters and mini tube cutter for shop or field portability.
• Includes:
  • Hydra-Flare Yoke & Pump Assembly (71202)
  • 45degrees flaring cone (71097-01)
  • Push Connect Adapters and Die Sets: 1/4 inch (Adapter 71204, Die Set 71214), 5/16 inch (Adapter 71205, Die Set 71215), 3/8 inch (Adapter 71206, Die Set 71216)
  • GM Fuel Line Adapters & Die Sets: 5/16 inch (Adapter 71405, Die Set 71415), 3/8 inch (Adapter 71406, Die Set 71416)
  • 45degrees & Double Flaring Adapters & Die Sets: 3/16, 1/4, 5/16, 3/8, 1/2 inch (Adapters 71097-03, -04, -05, -06, -08; Die Sets 71097-13, -14, -15, -16, -18)
  • Metric Bubble Flaring Adapters & Die Sets: 4.75 mm, 6 mm, 8 mm, 10 mm (Adapters 71475-4M, -6M, -8M, -10M; Die Sets 71475-14M, -16M, -18M, -110M
  • Mini Tube Cutter (for 1/8 inch to 5/8 inch O.D. tubing)
• Specifications:
  • Manufacturer: Mastercool
  • Part Number: 72475-PRC
  • Flare Types: 45degrees single flare, 45degrees double flare, Push Connect flare, GM fuel line flare, brake line flare, transmission line flare, metric bubble flare
  • Tubing Sizes (SAE): 3/16, 1/4, 5/16, 3/8, 1/2 inch; Metric: 4.75, 6, 8, 10 mm
  • Materials Worked: annealed stainless steel tube, terne plate steel tube, soft aluminum tube, soft copper tube
  • System Compatibility: Automotive metal tubing systems for brake lines, fuel lines, transmission lines; not for coolant hoses or rubber hose systems
• The Mastercool 72475-PRC can also be referred to as hydraulic flaring kit SAE metric, Mastercool universal flare tool set, Push Connect/GM fuel line flaring kit, double/45degrees flare set, mini tube cutter mastercool kit.

Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.

Q: What tubing sizes and flare types does this tool support?
A: It supports SAE tubing sizes 3/16, 1/4, 5/16, 3/8, 1/2 inch and metric sizes 4.75 mm, 6 mm, 8 mm, 10 mm. It can make 45degrees single and double flares, Push Connect, GM fuel line, brake line, transmission line, and metric bubble flares.

Q: Does the set include a tube cutter?
A: Yes, a mini tube cutter for 1/8 inch to 5/8 inch O.D. tubing is included to ensure clean cuts before flaring.

Q: What materials can it flare?
A: It is capable of flaring annealed stainless steel, terne plate steel, soft copper, and soft aluminum tubing with consistent quality.
