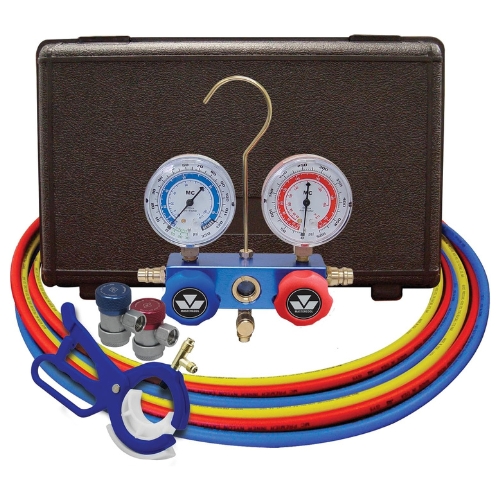

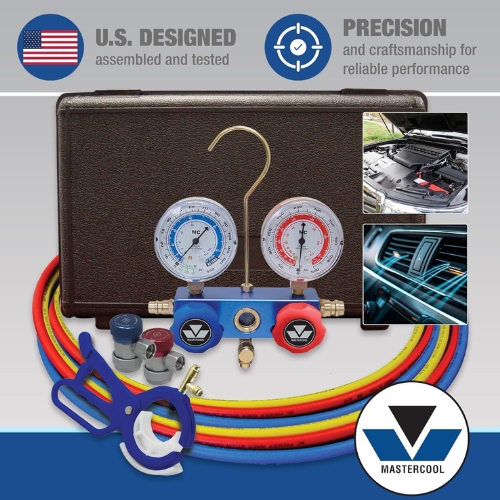

Mastercool 98661-PRO 2-Way Aluminum Manifold Gauge Set, 60 inch Hoses

Mastercool 98661-PRO 2-Way Aluminum Manifold Gauge Set, 60 inch Hoses

• The Mastercool 98661-PRO 2-Way Aluminum Manifold Gauge Set is a service manifold designed for automotive air conditioning technicians; it supports both R134a and R12 refrigerants, includes six nylon barrier hoses each 60-inch long,manual couplers, and a 3-in-1 side-mount can tap valve for accessing different service port designs.
• Features:

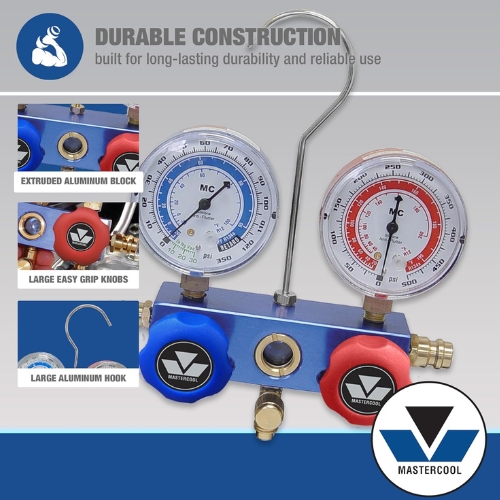

  • Extruded aluminum block for lightweight durability and corrosion resistance.
  • Silicone-dampened, recalibratable gauges for stable readings and longer life under vibrations.
  • Manual couplers for service operation with R134a and R12 ports, minimizing risk of cross-connection errors.
  • 3-in-1 side-mount can tap valve included to allow easy access when charging or tapping common size service cans.
• Includes:
  • Aluminum 2-way manifold
  • Two analog gauges
  • Three 60 inch nylon barrier hoses for R134a
  • Three 60 inch nylon barrier hoses for R12
  • Manual couplers (for R134a service)
  • 3-in-1 side mount can tap valve
  • Custom molded carrying case
• Specifications:
  • Manufacturer: Mastercool
  • Part Number: 98661-PRO
  • Body Material: extruded aluminum block
  • Gauge Type: silicone-dampened, recalibratable analog gauges
  • Hose Set: six nylon barrier hoses, three rated for R134a, three for R12; each hose is 60 inch long.
  • Couplers: manual type for both high/low sides, compatible with R134a and R12 service ports.
  • Valve: 3-in-1 side-mount can tap valve included for charging from common service cans.
  • System Compatibility: Servicing automotive air conditioning systems using either R134a or R12 refrigerants; intended for diagnostics, charging, recovery work; suitable for technicians who need dual-refrigerant capability.
• The Mastercool 98661-PRO can also be referred to as dual refrigerant manifold, R12 R134a service gauge kit, aluminum two-way manifold set, can tap manifold gauge set, Mastercool dual-hose manifold set.

Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.

Q: Does this manifold set require swapping parts when switching between R12 and R134a refrigerants?
A: No, the set includes separate hoses and manual couplers for both R12 and R134a ports so you can service either refrigerant without changing parts; make sure to use the correct hose and coupler for the refrigerant being handled.

Q: What is the length of the hoses included?
A: The kit includes six hoses total: three R134a rated hoses and three R12 rated hoses, each 60 inch in length.

Q: Is the 3-in-1 can tap valve compatible with standard A/C cans?
A: Yes, the 3-in-1 side-mount can tap valve is designed to connect to standard service cans used for charging or topping off refrigerant; it works as a bridge between manifold and can while maintaining safety and control.
