Midtronics MDX-700PHD Heavy Duty Battery and Electrical System Analyzer with Integrated Printer Midtronics MDMDX-700PHD
View Larger

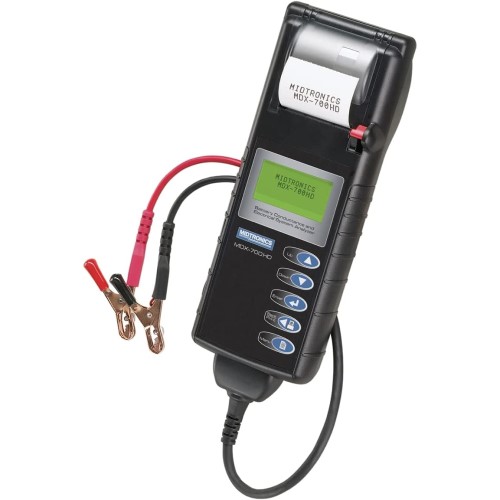

Midtronics MDX-700PHD Heavy Duty Battery and Electrical System Analyzer with Integrated Printer

Item # MDMDX-700PHD
$1,191.50

Quantity:      Out of Stock*QTY_CHECK:0-net:0-DB:0-VSTOCK:0
Sold As: each
Call for availability


Midtronics
More Products from Midtronics

  Add to Shopping List
  Save For Later


Overview



Midtronics MDX-700PHD Heavy Duty Battery and Electrical System Analyzer with Integrated Printer

  • Created specifically for the heavy-duty fleet market, the MDX-700 HD makes it easy to test the multiple battery systems and electrical system on heavy-duty vehicles, including trucks and commercial equipment.
    • Advanced heavy-duty battery testing algorithm provides accurate test results for multiple battery configurations up to 2000 CCA
    • Quickly identify issues with the battery, starting or charging system
    • User-friendly interface prompts the user through the entire test sequence
    • Heavy-duty clamps and a 15-foot cable set allows for starting and charging system tests to be run from the cab
    • Test results, including multiple battery tests, can be printed on an integrated printer
  • Features
    • In-vehicle capabilities for analyzing starting and charging systems
    • Complete system information in an easy-to-read format
    • Starter/ Alternator testing
    • Quick starter analysis without disabling the ignition
    • Advanced menu-driven interface for a complete charging system analysis in seconds
    • Battery pack testing
  • Specifications
    • Voltage Range: 0.9 to 30 Volt DC; Overall Dimension 10.6 Inch Length x 3.9 Inch Width x 2.4 Inch Height
    • Housing Material: Acid Resistant ABS Plastic
    • Temperature Rating: 32 to 122 Deg F
    • Applications: Group 31, Automotive, Motorcycle, Marine, Lawn and Garden, Group 31, Commercial 4D/8D
    • Used On 6 and 12 Volt Automotive Starting Battery
    • Battery Conductance and Electrical System Analyzer with 15 Foot cable and heavy duty battery clamps and an integrated thermal printer
    • VIEW/PRINT to view last test from memory or print another copy QC MODE for performing quality control testing
    • Multiple Languages
    • COUNTER Information to track activity, including good vs Replacement, batteries and system test results
    • Large back-lit display keeps operation simple for all levels of users
    • Data card reader for software upgrades
    • 15 foot Heavy Duty Removable cable set allows running tests from the cab
  • Includes Tester With Integrated Printer, Heavy-Duty Field-Replaceable 15’ Testing Cables, Lead Stud Adapters, Printer Paper, Carrying Bag

Documents


Pdf MDX700-HD_Brochure
