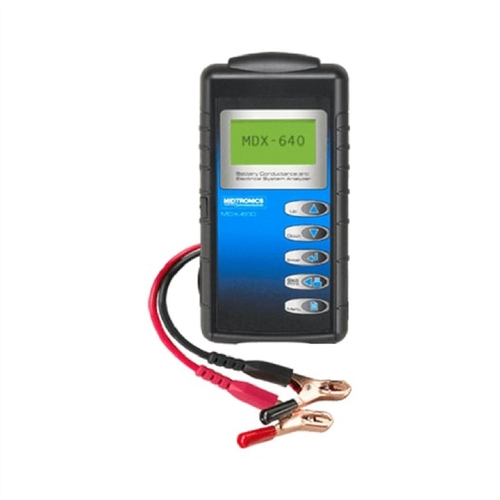

Midtronics MDX-640 Battery Conductance Analyzer, 6 and 12 Volt Battery Tester, with 4 ft Cable Set

Midtronics MDX-640 Battery Conductance Analyzer, 6 and 12 Volt Battery Tester, with 4 ft Cable Set

• Midtronics MDX-640 is a conductance battery analyzer for automotive service diagnostics and preventive maintenance. It tests starting battery condition in or out of the vehicle and guides users through battery type, application, and rating selections.
• Features:
  • Conductance diagnostic technology is used for battery condition testing.
  • Tests regular flooded, AGM flat plate, AGM spiral, and gel battery types.
  • Vehicle applications include automotive, motorcycle, marine cranking, lawn and garden, Group 31, and commercial 4D/8D batteries.
  • Field-replaceable cable design uses the included 4 ft cable set.
  • Battery rating selections include CCA, CA, MCA, JIS, EN, DIN, SAE, and IEC.
• Includes:
  • MDX-640 Battery Conductance Analyzer
  • Manual
  • Lead stud adapter set
  • 4 ft cable set
• Specifications:
  • Manufacturer: Midtronics
  • Part Number: MDX-640
  • UPC: 675300630006
  • Product Type: Battery Conductance Analyzer
  • Battery Voltage Compatibility: 6 and 12 Volt
  • Battery Types: Regular flooded, AGM flat plate, AGM spiral, and gel
  • Applications: Automotive, motorcycle, marine cranking, lawn and garden, Group 31, and commercial 4D/8D
  • Diagnostic Technology: Conductance
  • Battery Ratings: CCA, CA, MCA, JIS, EN, DIN, SAE, and IEC
  • Tester Voltage Range: 1 to 30 Volt Direct Current
  • Display: Backlit display
  • Cable Length: 4 ft
  • Power Requirements: Battery under test and 6 AA internal batteries
  • Packaging Type: Each
  • Quantity: 1 battery conductance analyzer
• The Midtronics MDX-640 Battery Conductance Analyzer can also be referred to as battery conductance analyzer, digital battery analyzer, automotive battery tester, 6 and 12 Volt battery tester, and conductance battery tester.

Midtronics develops battery management, battery testing, diagnostic charging, monitoring, and electrical diagnostic equipment for the global automotive industry, including automotive, heavy truck, motorsport, hybrid vehicle, and electric vehicle service markets.

Q: What battery types does the Midtronics MDX-640 test?
A: It tests regular flooded, AGM flat plate, AGM spiral, and gel batteries.

Q: Can the MDX-640 test batteries outside the vehicle?
A: Yes. It tests batteries in or out of the vehicle.

Q: What items are included with the MDX-640?
A: It includes the analyzer, manual, lead stud adapter set, and 4 ft cable set.
