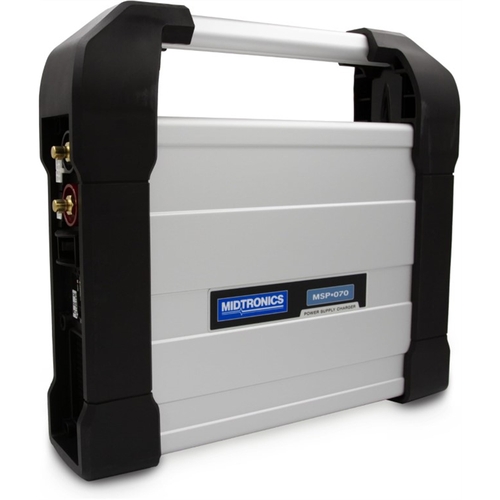

Midtronics MSP-070-3 MSP-070 Power Supply Charger, 70 Ampere, 3 Meter Charge Cables

Midtronics MSP-070-3 MSP-070 Power Supply Charger, 70 Ampere, 3 Meter Charge Cables

• Midtronics MSP-070-3 maintains battery state of charge during ECU service reflash events, extended maintenance, and showroom charging. It is used for automotive battery service where clean power is needed to preserve vehicle electronics and accessory settings.
• Features:
  • Selectable constant voltage settings are 13.2, 13.6, and 14.4 Volt Direct Current.
  • Field-replaceable cables and an integrated carrying handle are built into the charger package.
  • Low-profile housing fits under vehicles.
  • Dynamic fan control, input surge protection, output circuit breaker, power factor correction, and reverse polarity protection are included.
  • Safety certifications include CE, UL, cUL, CEC, RoHS, and FCC.
• Includes:
  • MSP-070 Power Supply Charger
  • AC power cord
  • 3 Meter field-replaceable charge cables
• Specifications:
  • Manufacturer: Midtronics
  • Part Number: MSP-070-3
  • UPC: 675268000179
  • Model: MSP-070
  • Product Type: Power Supply Charger
  • Input Voltage: 120 to 240 Volt AC
  • Frequency: 50 to 60 Hertz
  • Input Current: 12 Ampere Maximum
  • Output Voltage: 14.4 Volt Direct Current
  • Output Current: 70 Ampere Continuous
  • Selectable Constant Voltages: 13.2, 13.6, and 14.4 Volt Direct Current
  • Supported Battery Types: Flooded lead-acid, Enhanced Flooded, AGM spiral, and gel
  • Charge Cable Length: 3 Meter
  • Dimensions: 15.35" Length x 10.24" Width x 3.40" Height
  • Weight: 19.43 Pound
  • Safety Certifications: CE, UL, cUL, CEC, RoHS, and FCC
  • Packaging Type: Each
  • Quantity: 1 power supply charger
• The Midtronics MSP-070-3 MSP-070 Power Supply Charger can also be referred to as power supply charger, 70 Ampere battery charger, vehicle programming power supply, automotive service charger, and battery maintainer power supply.

Midtronics develops battery management, battery testing, diagnostic charging, monitoring, and electrical diagnostic equipment for the global automotive industry, including automotive, heavy truck, motorsport, hybrid vehicle, and electric vehicle service markets.

Q: What battery types can the MSP-070 charge?
A: It charges flooded lead-acid, Enhanced Flooded, AGM spiral, and gel battery types.

Q: What comes with model MSP-070-3?
A: It includes the MSP-070 Power Supply Charger, AC power cord, and 3 Meter field-replaceable charge cables.

Q: What voltage settings are selectable on the MSP-070?
A: The selectable constant voltage settings are 13.2, 13.6, and 14.4 Volt Direct Current.
