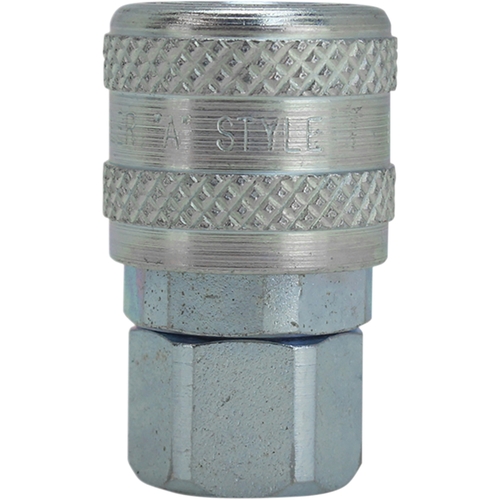

Milton S-775 A-Style Push-Type Coupler, 1/4" Female NPT, Steel

Milton S-775 A-Style Push-Type Coupler, 1/4" Female NPT, Steel

• This pneumatic coupler connects compatible A-Style air plugs to shop air hoses, compressors, and air-powered tools. The push-type design engages by pushing the plug into the coupler and releases when the sleeve is pulled back.
• Features:
  • Plated steel construction resists rust in shop air applications.
  • Push-type coupler body engages the plug without pulling the sleeve forward.
  • Accepts Milton A-Style plugs 778, 777, 777-4, 777-6, 1777-4, and 1777-6.
  • Buna-N seal is used in the coupler assembly.
  • A-Style ARO 210 interchange with 1/4" basic flow size.
• Specifications:
  • Manufacturer: Milton
  • Part Number: S-775
  • Connection Type: 1/4" female NPT
  • Style: A-Style
  • Interchange: ARO 210
  • Basic Flow Size: 1/4"
  • Material: Plated steel
  • Seal Material: Buna-N
  • Air Flow: 34 SCFM
  • Maximum Inlet Pressure: 300 psi
  • Maximum Temperature: 250 F
• The A-Style Push-Type Coupler can also be referred to as female air coupler, 1/4 inch NPT air coupler, A-Style air fitting, ARO 210 coupler, and steel pneumatic coupler.

Milton Industries manufactures pneumatic accessories, tire inflators, air couplers, plugs, blow guns, gauges, and shop air products for professional and industrial users. The company is based in Chicago and has produced air accessory products since 1943.

Q: What plug style does this coupler accept?
A: This coupler accepts compatible Milton A-Style plugs, including 778, 777, 777-4, 777-6, 1777-4, and 1777-6.

Q: What thread connection does the S-775 use?
A: The S-775 uses a 1/4" female NPT connection.

Q: What is the maximum air flow?
A: The maximum air flow is 34 SCFM.

Q: What material is the coupler made from?
A: The coupler is made from plated steel.
