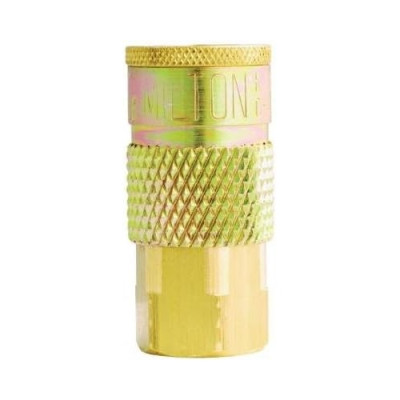

Milton S-785 1/4" FNPT T-Style Air Compressor Quick Connect Coupler, Brass, 300 PSI

Milton S-785 1/4" FNPT T-Style Air Compressor Quick Connect Coupler, Brass, 300 PSI

• The Milton S-785 T-Style Air Compressor Quick Connect Coupler is designed for fast connection and disconnection of compatible pneumatic air lines and tools without requiring a separate shut-off valve. Its 1/4" female NPT connection, brass construction, 40 SCFM airflow rating, and 300 PSI maximum working pressure make it suitable for demanding compressed-air applications.
• Features:
  • T-Style quick-connect coupler for compatible pneumatic fittings and air tools.
  • 1/4" female NPT connection.
  • Industrial-grade solid brass construction for corrosion resistance and durability.
  • Drag guard sleeve helps reduce the risk of accidental disconnects.
  • Three locking balls provide a secure connection to compatible plugs.
  • Provides quick connection and disconnection of air lines without a separate shut-off valve.
  • Maximum airflow of 40 SCFM.
  • Maximum working pressure of 300 PSI.
  • Rated for temperatures up to 250 Degree F.
  • Buna-N seal.
• Compatible Applications:
  • Air Compressors
  • Pneumatic Air Lines
  • Air Tools
  • Shop Air Systems
  • Automotive Service
  • Industrial Maintenance
• Compatible Fittings and Systems:
  • Milton T-Style Couplers and Plugs
  • Milton ColorFit T-Style Couplers and Plugs
  • Compatible Competitor T-Style Couplers and Plugs
  • Milton S-782 Coupler/Plug Kit
  • Milton S-215 Coupler/Plug and Accessory Kit
• Specifications:
  • Manufacturer: Milton
  • Part Number: S-785
  • MPN: S-785
  • Product Type: Air Compressor Quick Connect Coupler
  • Coupler Style: T-Style
  • Connection Size: 1/4" FNPT
  • Thread Type: Female National Pipe Thread
  • Basic Flow Size: 1/4"
  • Material: Solid Brass
  • Seal Material: Buna-N
  • Maximum Pressure: 300 PSI
  • Maximum Airflow: 40 SCFM
  • Maximum Temperature: 250 Degree F
  • Locking Mechanism: 3 Locking Balls
  • Application: Pneumatic Air Line and Air Tool Connection
• This item is also often referred to as an air compressor quick coupler, T-style air coupler, 1/4" FNPT air fitting, pneumatic quick-connect fitting, brass air coupler, and Milton S-785 coupler.

Milton manufactures pneumatic fittings, air couplers, plugs, gauges, inflators, air hoses, and related compressed-air accessories for automotive, industrial, maintenance, and shop applications.

Q: What thread size does the Milton S-785 use?
A: It uses a 1/4" female NPT connection.

Q: What is the maximum pressure rating of the Milton S-785?
A: The maximum listed working pressure is 300 PSI.

Q: What airflow is the Milton S-785 rated for?
A: The supplied product information lists a maximum airflow of 40 SCFM.

Q: Is the Milton S-785 compatible with other T-Style fittings?
A: Yes. It is compatible with Milton T-Style, Milton ColorFit T-Style, and other compatible T-Style couplers and plugs.
