Milton S-1805 P Style Coupler, 3/8" FNPT, 3/8" Basic Flow, 68 SCFM, 1 Pack

Milton S-1805 P Style Coupler, 3/8" FNPT, 3/8" Basic Flow, 68 SCFM, 1 Pack

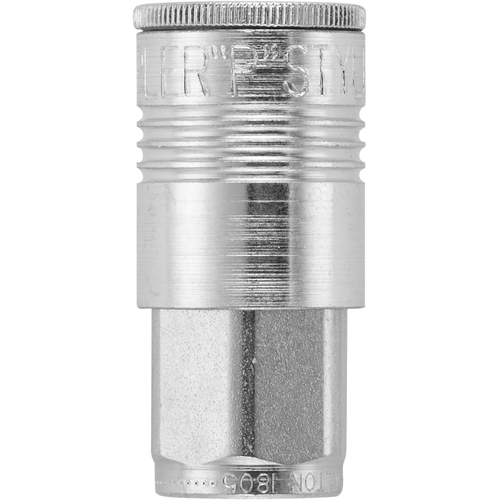

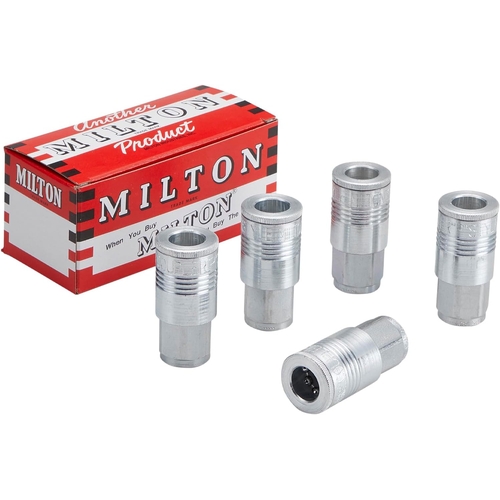

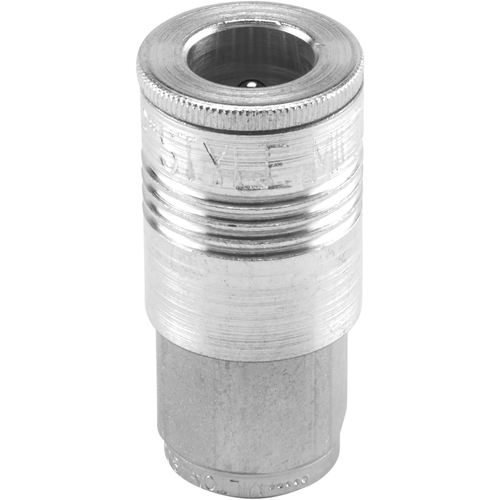

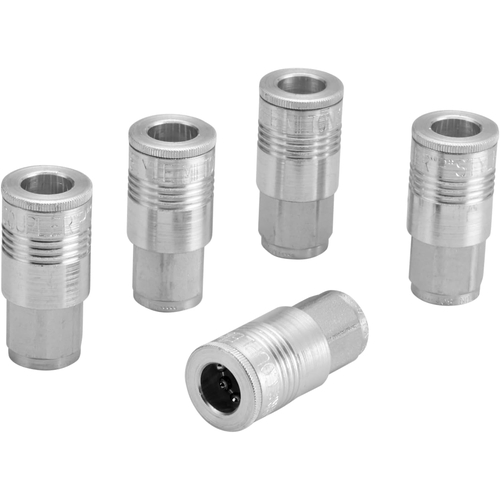

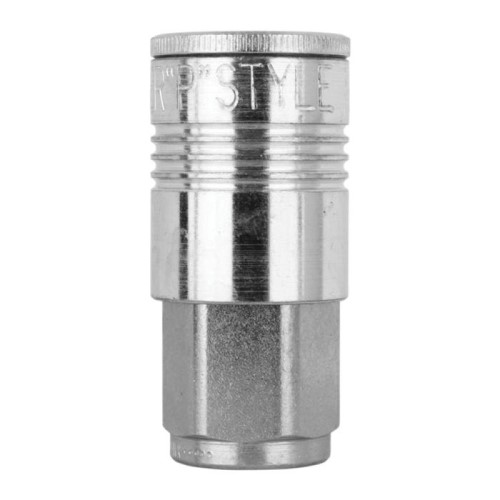

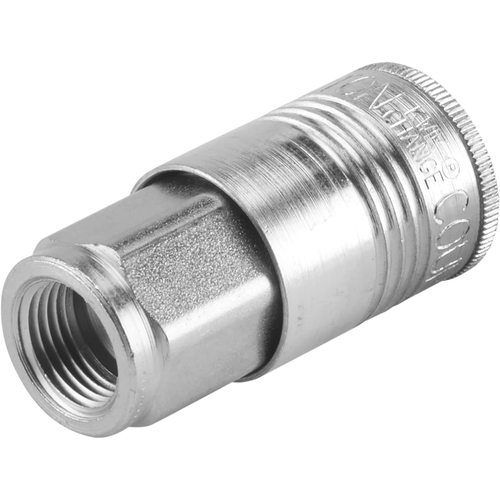

• Milton S-1805 is a P Style Coupler body with 3/8 Inch FNPT threads and a 3/8 Inch basic flow size, designed for high air volume pneumatic connections. Its heavy duty steel body, 8 locking balls, and Buna N seal support up to 300 PSI for reliable shop and fleet use.
• Features:
  • 3/8 Inch FNPT female threads for direct connection to common air hoses and manifolds, minimizing adapters
  • 3/8 Inch basic flow size with 68 SCFM capacity to reduce pressure drop on high demand tools
  • Eight locking balls improve plug retention to help prevent accidental uncoupling during operation
  • Buna N seal and steel body provide durable, leak resistant service up to 300 PSI
  • P style interface for consistent compatibility with P style plugs across dedicated air circuits
• Specifications:
  • Manufacturer: Milton
  • Part Number: S-1805
  • Style: P Style Coupler body
  • Thread: 3/8 Inch FNPT
  • Basic Flow Size: 3/8 Inch
  • Air Flow: 68 SCFM
  • Maximum Inlet Pressure: 300 PSI
  • Seal Material: Buna N
  • Construction: Steel body; 8 locking balls
  • System Compatibility / Application: Mates with P style plugs in high flow pneumatic systems for shops, fleets, and industrial air tools
  • Alternate / Cross Reference: S-1805
• The P Style Coupler can also be referred to as P style air coupler, 3/8 Inch FNPT coupler, high flow 68 SCFM coupler, industrial P type coupler, and Milton 1805 coupler.

Milton manufactures pneumatic couplers, plugs, inflator gauges, and air system accessories for automotive, fleet, and industrial maintenance environments, focusing on durable components that deliver consistent air flow and reliable connections.

Q: Which plugs will this coupler fit?
A: It is a P style coupler and is designed to mate with P style plugs only; it will not connect to other styles like M or A.

Q: What is the maximum working pressure and air flow?
A: The coupler is rated to 300 PSI with an available air flow of 68 SCFM when used with its 3/8 Inch basic flow system.

Q: Why choose a P style coupler over standard flow types?
A: P style uses a larger 3/8 Inch basic flow size that helps reduce pressure drop on high demand pneumatic tools compared to smaller basic flow systems.
