Milton 719 M-Style Coupler Body, 3/8" MNPT Male Thread, 1/4 Inch Basic Flow Size, 40 SCFM

Milton 719 M-Style Coupler Body, 3/8" MNPT Male Thread, 1/4 Inch Basic Flow Size, 40 SCFM

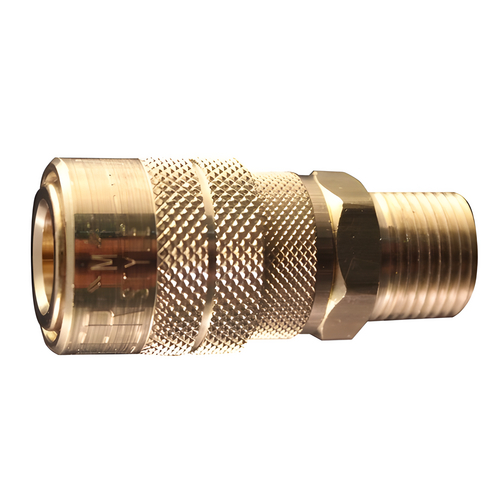

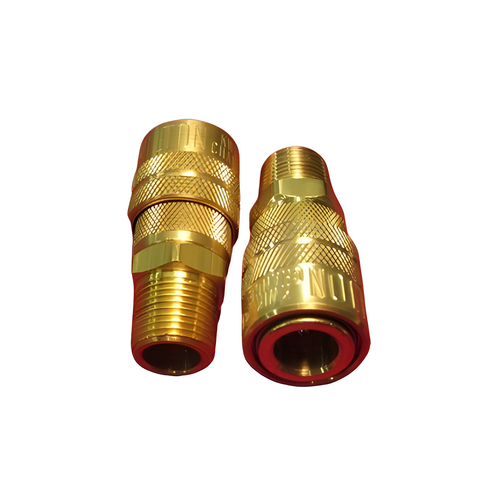

• Milton 719 is an M-Style quick connect coupler body with a 3/8" MNPT male thread for compressed air lines. It is designed to mate with M-Style industrial interchange plugs and provides a 1/4 Inch basic flow size with up to 40 SCFM air flow and a 300 PSI maximum pressure rating.
• Features:
  • 3/8" MNPT male thread supports installation on air tools, hose ends, or manifolds using NPT threaded connections.
  • M-Style industrial interchange profile is designed to connect with compatible M-Style plugs for quick connect air line changes.
  • 1/4 Inch basic flow size and 40 SCFM air flow support common pneumatic tool and shop air applications.
  • 300 PSI maximum inlet pressure rating supports standard compressed air system requirements.
  • Buna-N seal is designed to help maintain an airtight connection during coupling and uncoupling.
  • Designed application: quick connect coupler body for M-Style plugs in compressed air hose and pneumatic tool setups.
• Specifications:
  • Manufacturer: Milton Industries Inc.
  • Part Number: MI719
  • MPN: MI719
  • UPC: 030937302328
  • Alternate Part Numbers / Cross References: 719, S-719, S-719W
  • Category: Pneumatic Fittings
  • Subcategory: Quick Connect Couplers
  • Product Type / Function: M-Style coupler body (female coupler with male NPT thread)
  • Plug Style: M-Style
  • Thread Type: NPT
  • Thread Size: 3/8" MNPT
  • Basic Flow Size: 1/4 Inch
  • Air Flow: 40 SCFM
  • Maximum Inlet Pressure: 300 PSI
  • Maximum Temperature: 250 Fahrenheit
  • Seal Material: Buna-N
  • Material: Brass
  • System Compatibility or Application: Designed to connect with compatible M-Style industrial interchange plugs for quick connect compressed air hose and pneumatic tool systems
• The M-Style Coupler Body can also be referred to as M style air coupler, industrial interchange coupler, quick connect coupler body, 3/8" MNPT air coupler, and Milton M-Style coupler.

Milton Industries Inc. manufactures pneumatic accessories for compressed air systems, including quick connect couplers and plugs, hose fittings, air chucks, and inflation tools used in automotive, industrial, and maintenance environments.

Q: What plug style is MI719 designed to connect with?
A: It is designed to mate with compatible M-Style industrial interchange plugs.

Q: What thread size does this coupler body use?
A: It has a 3/8" MNPT male thread (NPT thread type) for installation into a matching female NPT port.

Q: What are the key performance ratings?
A: It is rated for up to 300 PSI maximum inlet pressure, up to 40 SCFM air flow, and up to 250 Fahrenheit maximum temperature.
