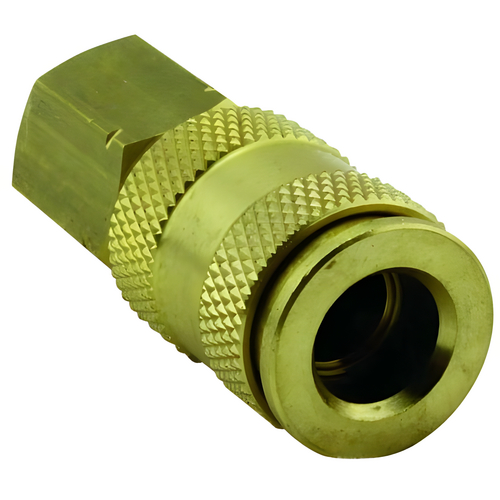

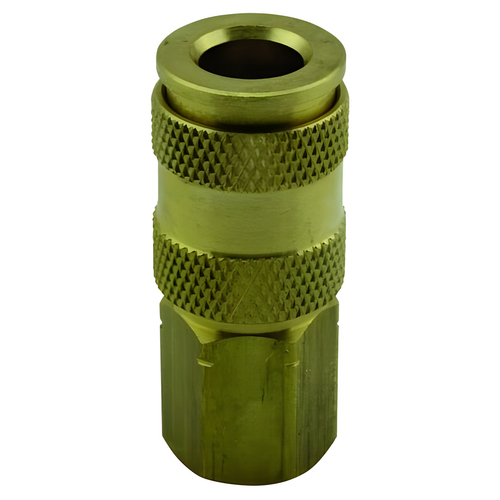

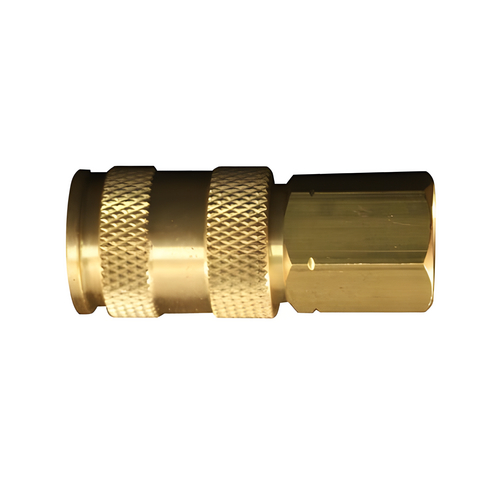

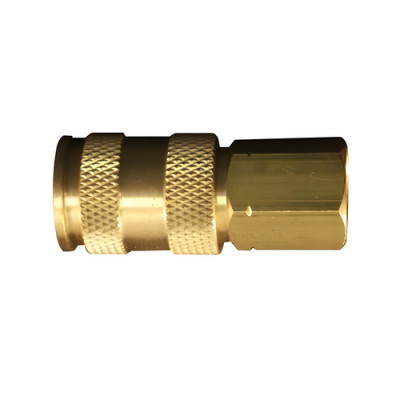

Milton 766 High Flow V-Style Air Coupler, 3/8 Inch FNPT, Brass

Milton 766 High Flow V-Style Air Coupler, 3/8 Inch FNPT, Brass

• Milton 766 is a high flow V-Style quick connect air coupler designed for high volume, low pressure compressed air applications. It uses a brass body with a push-type sleeve release and 3/8 Inch FNPT female threads to help deliver strong airflow for air tools while allowing fast connect and disconnect.
• Features:
  • 3/8 Inch FNPT female connection helps create a secure threaded install on air manifolds, hose ends, and fittings
  • 74 SCFM airflow supports high CFM pneumatic tools in high volume, low pressure compressed air setups
  • Brass body material helps resist corrosion in shop and industrial air line environments
  • Push-type sleeve release enables quick connect and disconnect during tool changes
  • V-Style interchange design is intended for V-Style plugs and will also accept M-Style and A-Style plugs
• Specifications:
  • Manufacturer: Milton Industries, Inc.
  • Part Number: MI766
  • MPN: 766
  • UPC: 309373083376
  • Product Type: High Flow V-Style Quick Connect Air Coupler
  • Connection: 3/8 Inch FNPT female thread
  • Material: Brass
  • Seal: Buna-N
  • Sleeve Release: Push-Type
  • Air Flow: 74 SCFM
  • Max Inlet Pressure: 300 PSI
  • Max Temperature: 250 F
  • Packaging Type: Boxed
  • System Compatibility Or Application: High volume, low pressure compressed air systems; intended for V-Style interchange plugs and also accepts M-Style and A-Style plugs
• The Milton MI766 High Flow V-Style Air Coupler can also be referred to as high flow air coupler, V-Style quick connect coupler, 3/8 Inch FNPT air coupler, compressed air quick coupler, and pneumatic high flow coupler.

Milton Industries, Inc. manufactures pneumatic accessories for compressed air systems, including couplers, plugs, fittings, tire inflators, and air gauges used in automotive, industrial, and maintenance applications.

Q: What plug styles will this coupler work with?
A: It is intended for V-Style interchange plugs and it will also accept M-Style and A-Style plugs, although V-Style plugs are recommended when you want to retain maximum flow.

Q: How do I install the 3/8 Inch FNPT connection?
A: Thread it into a matching 3/8 Inch FNPT port on your air fitting or manifold and use an appropriate thread sealant for NPT threads to help prevent air leaks.

Q: What pressure and temperature limits should I follow?
A: Do not exceed 300 PSI maximum inlet pressure and keep within a 250 F maximum temperature rating when used on compressed air systems.
