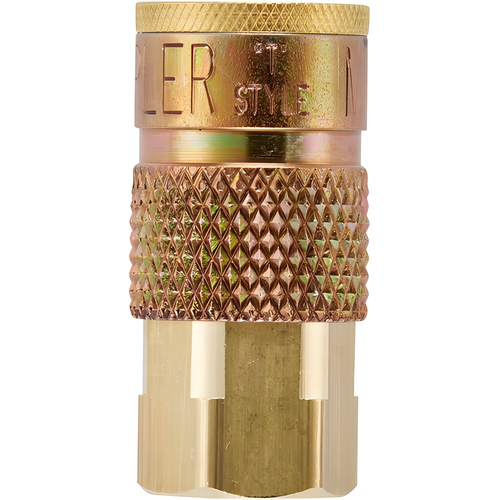

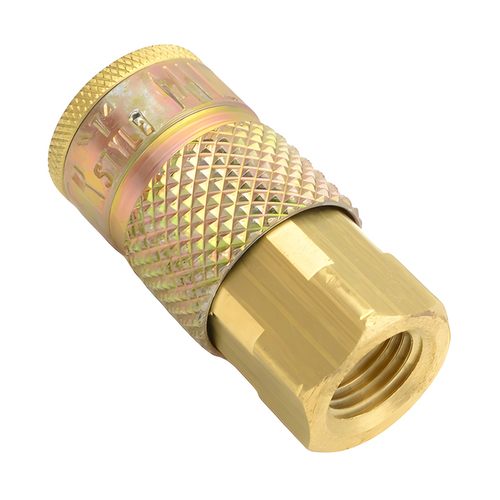

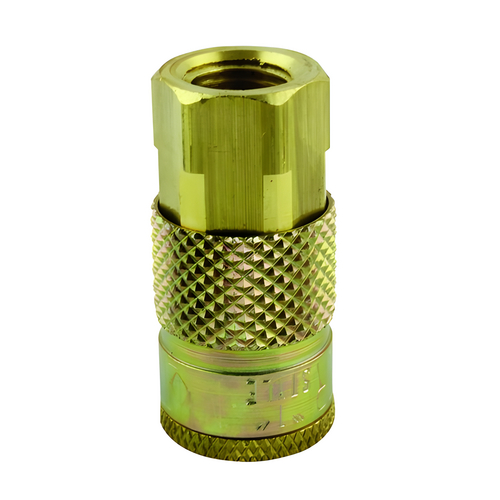

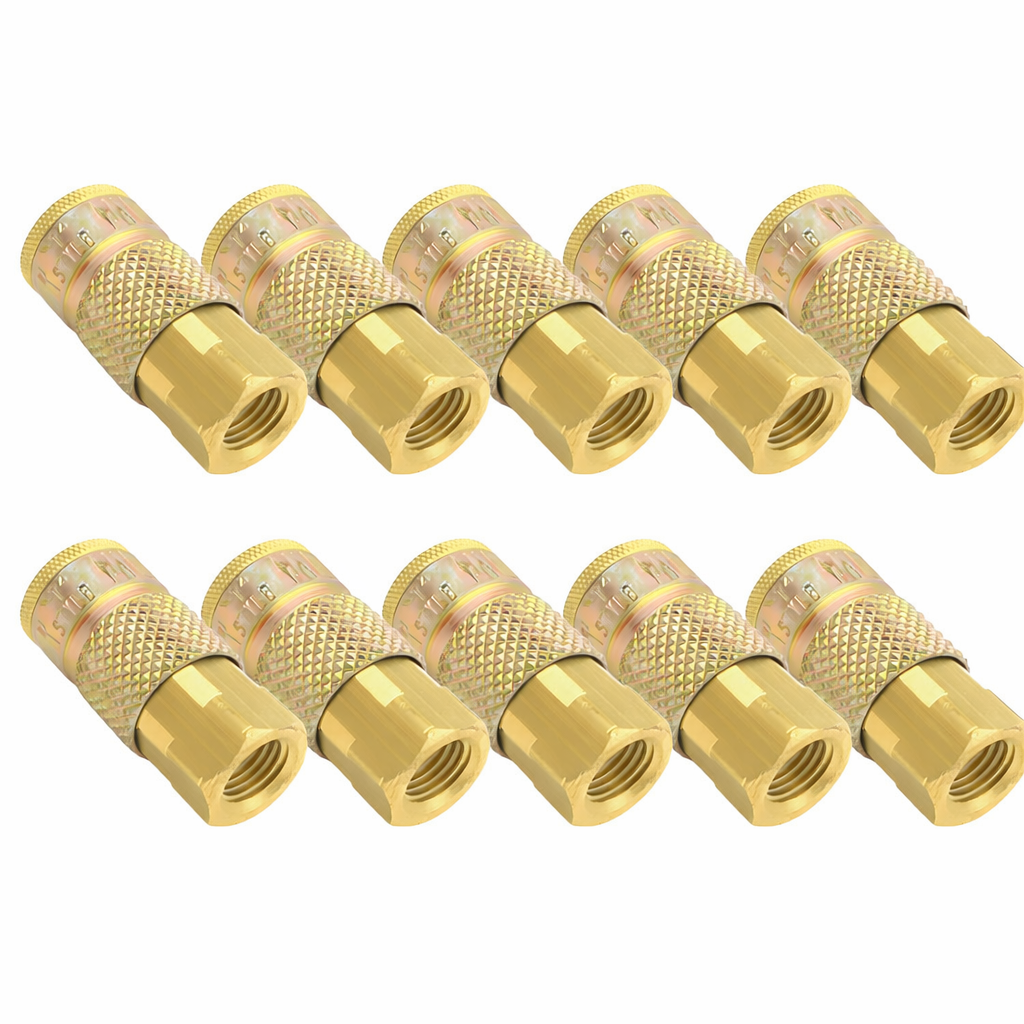

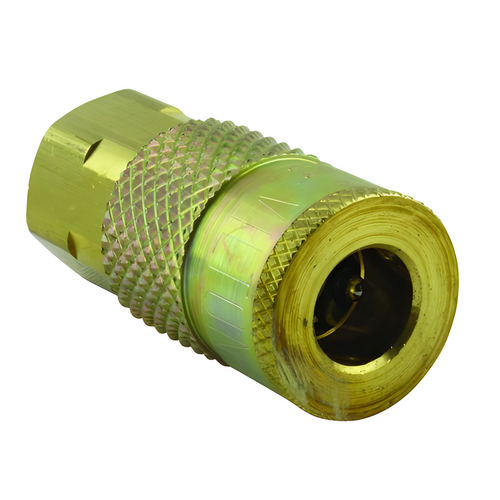

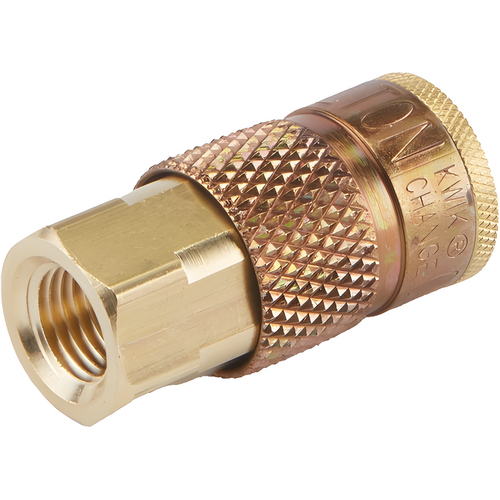

Milton S-785 1/4" FNPT Female T-Style Coupler Body, Brass, 40 SCFM

Milton S-785 1/4" FNPT Female T-Style Coupler Body, Brass, 40 SCFM

• Milton S-785 is a T-Style quick connect coupler body with a 1/4 Inch FNPT female thread for compressed air connections. This brass coupler is designed to interchange with Milton and other T-Style couplers and plugs, delivering 40 SCFM flow with a 300 PSI maximum inlet pressure rating.
• Features:
  • 1/4 Inch FNPT female thread supports standard NPT installation on air hoses, manifolds, and tool inlets.
  • T-Style interchange profile is designed to connect with Milton and other compatible T-Style plugs for quick connect air line changes.
  • 40 SCFM airflow supports common pneumatic tools and shop air applications requiring 1/4 basic flow size performance.
  • Brass body and Buna-N seal help provide corrosion resistance and a leak-resistant connection in compressed air service.
  • 300 PSI maximum inlet pressure rating supports standard compressed air system operating ranges.
• Specifications:
  • Manufacturer: Milton Industries Inc.
  • Part Number: MIS-785
  • MPN: 785
  • UPC: 030937302601
  • Category: Pneumatics and Air
  • Subcategory: Couplers and Plugs
  • Product Type / Function: T-Style quick connect coupler body
  • Style: T-Style
  • Thread Type: NPT
  • Thread Size: 1/4 Inch FNPT
  • Basic Flow Size: 1/4 Inch
  • Air Flow: 40 SCFM
  • Maximum Inlet Pressure: 300 PSI
  • Maximum Temperature: 250 F
  • Material / Finish: Brass
  • Seal Material: Buna-N
  • Quantity: 1
  • System Compatibility or Application: Designed to interchange with Milton and other compatible T-Style couplers and plugs for quick connect compressed air hose and pneumatic tool systems
• The Milton 1/4 Inch FNPT Female T-Style Coupler Body can also be referred to as T-Style air coupler, industrial interchange coupler, quick connect coupler body, 1/4 Inch FNPT air coupler, and compressed air coupler.

Milton Industries Inc. manufactures pneumatic accessories for compressed air systems, including quick connect couplers and plugs, hose fittings, air chucks, inflators, and gauges used in automotive, industrial, and maintenance environments.

Q: What plug style is this coupler designed to work with?
A: It is designed for T-Style interchange and is intended to connect with compatible T-Style plugs used in compressed air quick connect systems.

Q: What thread connection does MIS-785 use?
A: It uses a 1/4 Inch FNPT female NPT thread for installation into a matching 1/4 Inch MNPT fitting.

Q: What are the key pressure and flow ratings?
A: It is rated for 40 SCFM airflow and a 300 PSI maximum inlet pressure, with a maximum temperature rating of 250 F.
