Milton 787 T Style Sleeve Ring Body Coupler, 1/4" FNPT Female, 1/4" Basic Flow, 40 SCFM, Brass

Milton 787 T Style Sleeve Ring Body Coupler, 1/4" FNPT Female, 1/4" Basic Flow, 40 SCFM, Brass

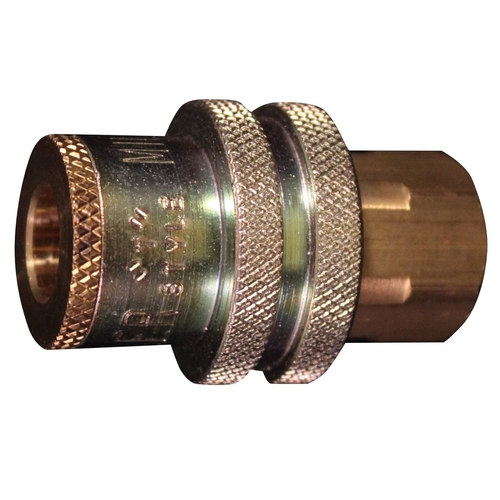

• Milton 787 is a T style sleeve ring body coupler with a 1/4" FNPT female connection and an oversized sleeve ring for easier coupling and uncoupling. This coupler uses a 1/4" basic flow size, supports up to 40 SCFM airflow, and is intended for shop air quick connect use with T style interchange plugs.
• Features:
  • Thread size: 1/4" FNPT female connection supports common shop air hose and manifold installations.
  • Style: T style interchange design is intended to mate with Tru Flate and Parker Interchange series plugs for broad compatibility.
  • Oversized sleeve ring improves grip for faster connect and disconnect, especially with gloves.
  • Airflow up to 40 SCFM supports pneumatic tool performance on a 1/4" basic flow coupler platform.
  • Brass coupler body with Buna N seals supports durability and leak resistance in shop air service.
• Specifications:
  • Manufacturer: Milton
  • Part Number: 787
  • MPN: 787
  • UPC: 030937302649
  • Category: Pneumatic Couplers and Plugs
  • Subcategory: Quick Couplers
  • Product Type / Function: Quick connect coupler body
  • Style: T style
  • Thread Size: 1/4" FNPT female
  • Basic Flow Size: 1/4"
  • Body Material: Brass
  • Seal Material: Buna N
  • Air Flow: Up to 40 SCFM
  • Maximum Inlet Pressure: 300 psi
  • Maximum Temperature: 250 F
  • System Compatibility / Application: Designed for shop air quick connect use with T style interchange plugs such as Tru Flate and Parker Interchange series
• The T Style Sleeve Ring Body Coupler can also be referred to as a T style air coupler, a 1/4" FNPT female air coupler, a Tru Flate interchange coupler, a Parker interchange coupler, and a quick connect coupler body.

Milton is a manufacturer of pneumatic fittings, couplers, plugs, hoses, and air tool accessories used in automotive, industrial, and maintenance environments. The brand is known for interchangeable quick connect systems and shop air products designed for reliable compressed air connections.

Q: What plugs will Milton 787 couple with?
A: It is a T style interchange coupler designed to mate with Tru Flate and Parker Interchange series T style plugs.

Q: What is the thread connection on this coupler?
A: It has a 1/4" FNPT female thread for connecting to a hose, manifold, or fitting with matching male pipe threads.

Q: What are the performance ratings for this coupler?
A: It is listed with up to 40 SCFM airflow, 300 psi maximum inlet pressure, and 250 F maximum temperature for shop air service.

Q: Is this SKU a replacement part for another SKU?
A: No. Milton 787 is a complete quick connect coupler body used to build or repair an air line connection point.
