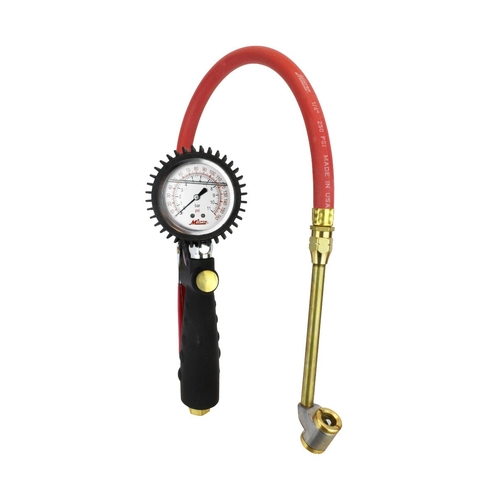

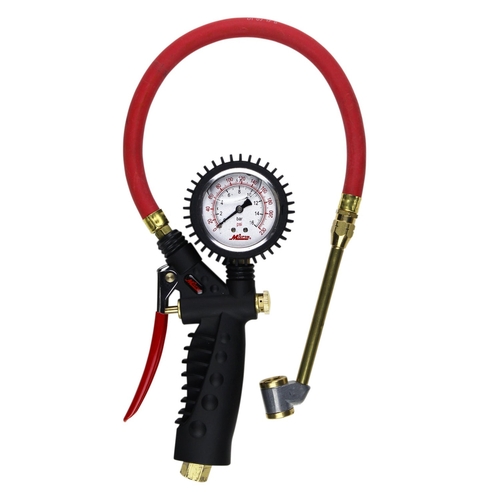

Milton S-578A Pro Analog Tire Inflator Pressure Gauge, Large Bore Dual Head Chuck, 15 inch Hose, 160 PSI

Milton S-578A Pro Analog Tire Inflator Pressure Gauge, Large Bore Dual Head Chuck, 15 inch Hose, 160 PSI

• Milton S-578A is a Pro analog tire inflator gauge built to measure and inflate tires with a liquid filled dial for stable readings. It includes a large bore dual head chuck and a 15 inch hose for valve access on duals and large tires, plus a deflate button for fine adjustments. Not a replacement part.

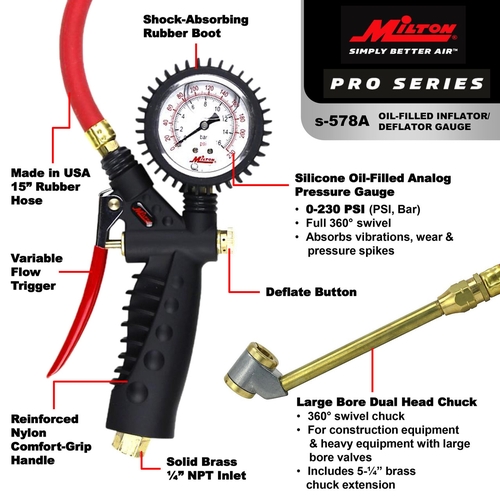

• Features:
  • Liquid filled analog gauge measures pressure in PSI from 0 to 160 for steady readings during inflation.
  • Large bore dual head chuck with full swivel helps access dual and large bore valve stems on heavy equipment and dually setups.

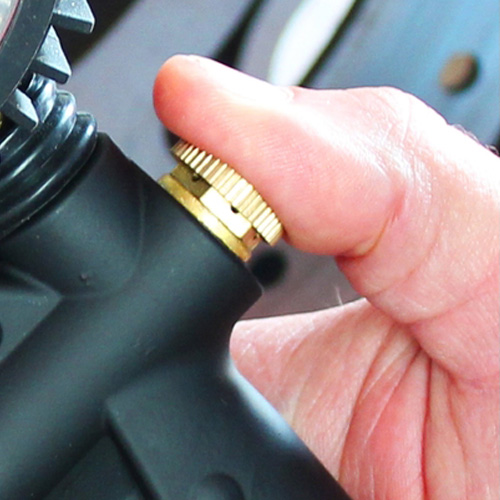

  • Deflate button supports quick pressure bleed down when you overshoot your target PSI.
  • Protective rubber boot helps shield the dial from impacts, shocks, and corrosion during shop use.
  • Designed for tire inflation and pressure measurement on Schrader valve tires, not a replacement part for a specific vehicle or SKU.
• Includes:
  • Analog inflator gauge with rugged comfort grip handle
  • Shock resistant protective rubber boot
  • Deflate button
  • 15 inch hose

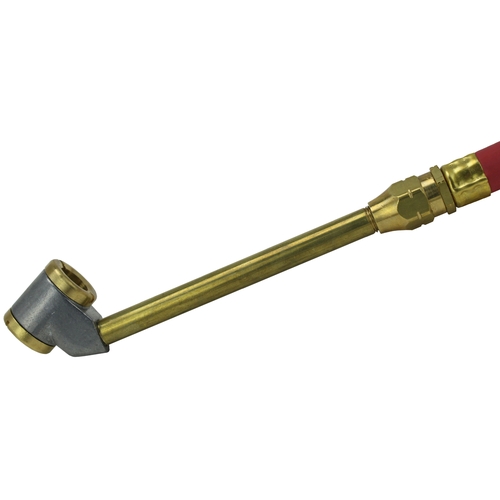

  • Large bore dual head chuck
• Specifications:
  • Manufacturer: Milton
  • Part Number: S-578A
  • MPN: S-578A
  • UPC: 030937323149
  • Category: Tire Service Tools
  • Subcategory: Tire Inflators And Gauges
  • Product Type / Function: Analog tire inflator pressure gauge
  • Pressure Range: 0 To 160 PSI
  • Gauge Resolution: 2 PSI
  • Gauge Diameter: 2.75 inch
  • Secondary Scale: 0 To 11 bar
  • Air Inlet: 1/4 inch NPT female
  • Hose: 1/4 inch ID x 15 inch EPDM rubber with brass fittings
  • Handle Material: Reinforced coated nylon
  • Trigger Material: Plated steel with PVC grip
  • Fittings: Solid brass
  • System Compatibility Or Application: Designed for inflating and measuring pressure on Schrader valve tires, including duals and large tires that use large bore valve stems, using a large bore dual head chuck and 15 inch hose
• The Pro Analog Tire Inflator Pressure Gauge can also be referred to as an analog tire inflator, a tire inflator gauge, a pistol grip tire inflator, a large bore dual head air chuck inflator, and a liquid filled tire pressure inflator.

Milton manufactures pneumatic fittings, air accessories, and tire service tools used in automotive service, fleet maintenance, and industrial compressed air systems. The brand is known for couplers, plugs, air chucks, inflator gauges, and other compressed air connection products.

Q: What is the pressure range of this inflator gauge?
A: The gauge measures from 0 to 160 PSI and also includes a bar scale from 0 to 11.

Q: What type of valve stems is it designed for?
A: It is designed for Schrader valve tires, including duals and large tires that use large bore valve stems, using the included large bore dual head chuck.

Q: What air connection does it use?
A: It uses a 1/4 inch NPT female air inlet for connection to a compatible shop air fitting.

Q: What does the deflate button do?
A: It lets you release air quickly to fine tune pressure if you exceed your target PSI.
