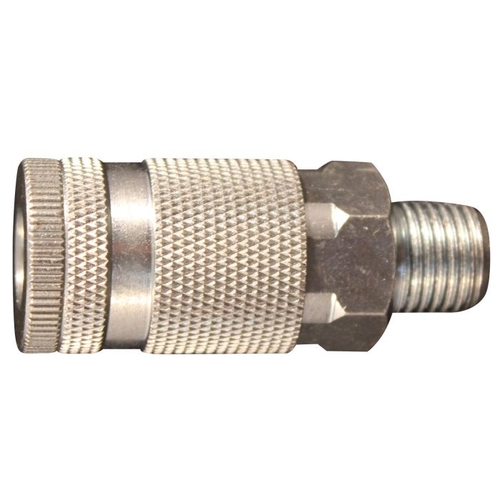

Milton 796 D Style Coupler, 1/4" MNPT, 1/4" Basic Flow Size, 300 PSI, 34 SCFM

Milton 796 D Style Coupler, 1/4" MNPT, 1/4" Basic Flow Size, 300 PSI, 34 SCFM

• Milton 796 D Style Coupler is a pneumatic quick connect coupler body designed for compatible compressed air systems. Verified sources identify it as a 1/4" male national pipe thread coupler with 1/4" basic flow size, steel plated construction, and D style interchange for automotive air tool and shop air applications.
• Features:
  • 1/4" MNPT connection fits compatible compressed air fittings and hose assemblies.
  • D style interchange supports use with compatible D style couplers and plugs in automotive air systems.
  • 1/4" basic flow size is verified by Milton for standard air tool and service applications.
  • Steel plated body helps resist rust in shop and service environments.
  • Buna-N seal supports reliable sealing performance in compatible compressed air setups.
  • D style couplers and plugs are identified by Milton as ideal for automotive applications.
• Specifications:
  • Manufacturer: Milton
  • Part Number: 796
  • Product Name: D Style Coupler
  • Connection Size: 1/4" MNPT
  • Interchange Type: D Style
  • Basic Flow Size: 1/4"
  • Maximum Inlet Pressure: 300 PSI
  • Air Flow: 34 SCFM
  • Maximum Temperature: 250 degree F
  • Seal Material: Buna-N
  • Body Material: Steel plated
  • System Compatibility or Application: for compatible compressed air systems and automotive air tool applications using D style interchange
  • Package Quantity: 1 coupler
• The D Style Coupler can also be referred to as air coupler body, quick connect coupler, D style air coupler, 1/4" MNPT coupler, and pneumatic quick disconnect coupler.

Milton manufactures pneumatic fittings, couplers, plugs, hoses, inflators, and shop air accessories for automotive and industrial service applications. The brand is widely known for compressed air connection products used in garages, repair shops, and maintenance environments.

Q: What interchange style does this coupler use?
A: Verified sources identify it as a D style coupler.

Q: What is the connection size on this coupler?
A: It uses a 1/4" male national pipe thread connection.

Q: What is the rated air flow?
A: Verified sources list the air flow as 34 SCFM.
