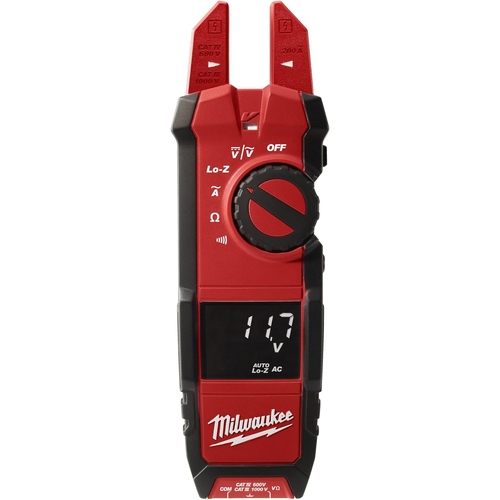

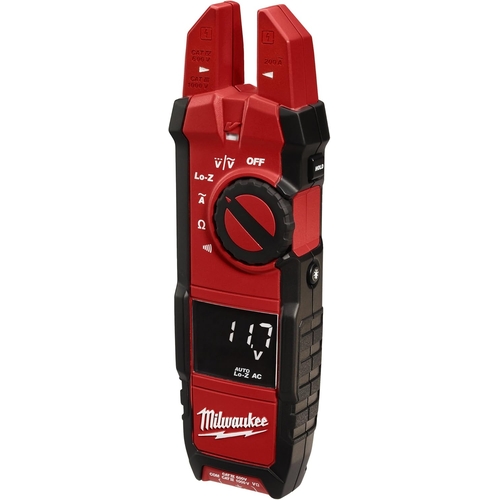

Milwaukee 2205-20 Fork Meter, True RMS, 200 A AC, 1000 V AC/DC, CAT IV 600 V, 0.63" Fork Opening

Milwaukee 2205-20 Fork Meter, True RMS, 200 A AC, 1000 V AC/DC, CAT IV 600 V, 0.63" Fork Opening

• Milwaukee 2205-20 is a True RMS fork meter for professional electrical testing that measures AC current up to 200 A and AC/DC voltage up to 1000 V. It adds non-contact voltage detection, task light, and a high-contrast display for fast troubleshooting in residential, commercial, and industrial work; not a replacement part.
• Features:
  • True RMS measurement improves accuracy on noisy or non-linear loads for more reliable readings in the field

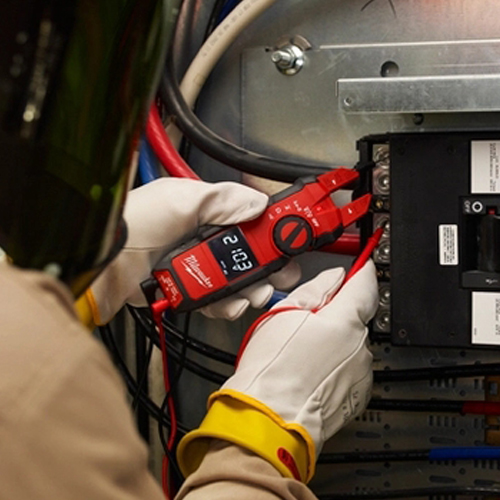

  • CAT IV 600 V and CAT III 1000 V safety ratings support use at service entrances and distribution panels when properly applied

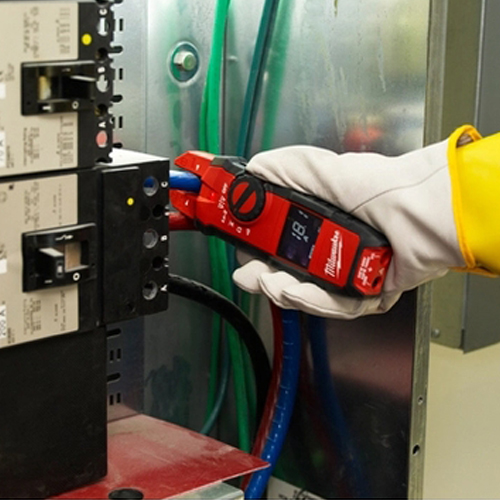

  • 200 A AC current range with 0.63 inch fork opening captures common branch and feeder conductors without breaking the circuit
  • Measures AC and DC voltage to 1000 V, adds audible continuity and resistance to 40 megaohm for broad troubleshooting coverage

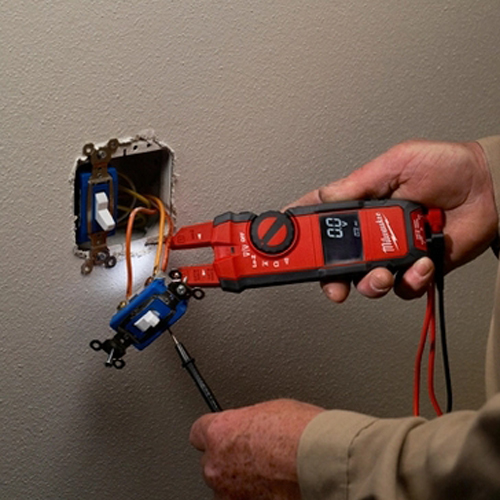

  • Non-contact voltage detection, backlit white-on-black display, and integrated task light enhance visibility and safety in low light
  • Standalone test instrument for electrical systems; this SKU is not a replacement part for another tool
• Includes:
  • Test lead set
  • (2) AA alkaline batteries
  • Operator’s manual
• Specifications:
  • Manufacturer: Milwaukee Tool
  • Part Number: 2205-20
  • Measurement Type: True RMS fork meter with non-contact voltage detection and task light
  • AC Current: 200 A
  • Voltage: 1000 V AC/DC
  • Resistance: up to 40 megaohm
  • Fork Opening: 0.63 inch
  • Display: High-contrast white-on-black LCD with backlight; 4000-count
  • Power: (2) AA alkaline batteries
  • Safety Rating: CAT IV 600 V; CAT III 1000 V
  • System Compatibility or Application: For measuring AC current, AC/DC voltage, resistance, continuity, and detecting voltage in electrical systems for residential, commercial, and industrial maintenance
• The fork meter can also be referred to as True RMS fork multimeter, 200 amp fork meter, 1000 volt electrical tester, CAT IV 600 volt meter, and non-contact voltage detector.

Milwaukee Tool designs professional test instruments, power tools, and accessories for trade users, emphasizing durability, safety ratings, and productivity for electrical, mechanical, and maintenance applications.

Q: Does it measure DC current?
A: No. The fork measures AC current up to 200 A. The meter measures both AC and DC voltage up to 1000 V.

Q: What are the safety categories?
A: It is rated CAT IV 600 V and CAT III 1000 V for use at service entrances and distribution equipment when used per the manual.

Q: What is the fork opening size and why does it matter?
A: The fork opening is 0.63 inch, allowing measurement of many conductors without disconnecting the circuit, which speeds diagnostics.
