Mityvac MV7102 Fluid Evacuator and Dispenser, 2.5 Quart Reservoir, 90 to 120 PSI Shop Air, Vacuum or Pressure Operation

Mityvac MV7102 Fluid Evacuator and Dispenser, 2.5 Quart Reservoir, 90 to 120 PSI Shop Air, Vacuum or Pressure Operation

• Mityvac MV7102 is a fluid evacuator and dispenser for evacuating, topping off, and refilling reservoirs, and for pressure or vacuum bleeding hydraulic brake and clutch systems. It uses shop air at 90 to 120 PSI and switches between vacuum and positive pressure with integrated controls.
• Features:
  • 2.5 quart reservoir offers practical capacity for common service fluids while keeping the unit compact for bench or mobile use.
  • 90 to 120 PSI inlet with built in relief regulating 20 to 25 PSI operating pressure supports controlled, consistent fluid handling.
  • Quick connect coupler and shutoff valve on the hose simplify clean hookups and help reduce spills during dispense or bleed.
  • Vacuum or pressure operation enables both extraction and dispensing with the same tool to speed fluid changes.
  • Standalone unit for general service tasks; not a replacement part or limited to a specific vehicle.

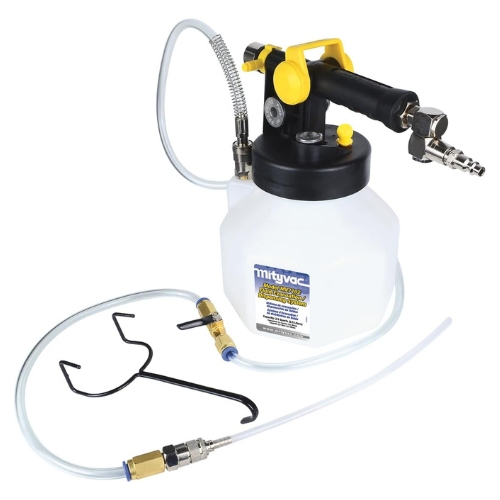

• Includes:
  • 2.5 quart fluid reservoir

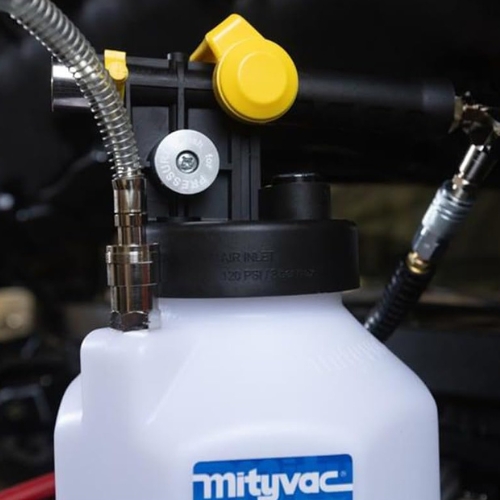

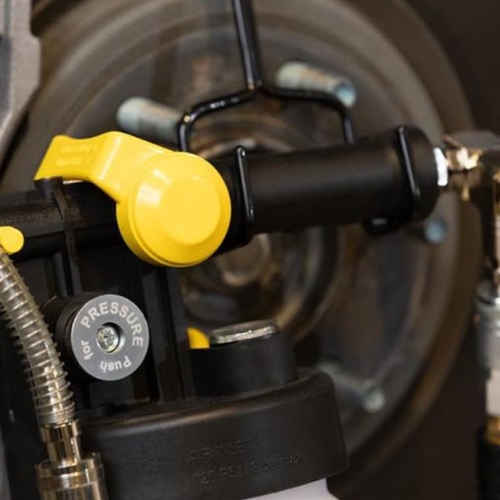

  • Reservoir lid assembly with integrated venturi vacuum and pressure dispensing controls
  • MVA575 flex hose with control valve
  • MVA570 fluid dispensing wand
  • Hanging hook (822753)
  • User manual
• Specifications:
  • Manufacturer: Mityvac
  • Part Number: MV7102
  • Product Type / Function: Fluid evacuator and dispenser for automotive and equipment service
  • Size / Capacity: 2.5 quarts
  • Inlet Air Pressure: 90 to 120 PSI
  • Operating Pressure: 20 to 25 PSI; maximum reservoir pressure 25 PSI
  • Drive / Connection Type: Quick connect fluid coupler; shop air inlet
  • Compatible Systems / Application: Evacuating and dispensing engine oil, coolant, ATF, brake and power steering fluids and washer fluid; pressure or vacuum bleeding brake and clutch systems; general service use, not a replacement part
  • Packaging Type: Boxed with manual
• The Fluid Evacuator and Dispenser can also be referred to as fluid evacuator dispenser, pneumatic fluid extractor, shop air fluid dispenser, brake pressure bleeder, and ATF refill dispenser.

Mityvac designs professional fluid evacuation and dispensing systems for shop use. MV7102 combines a compact 2.5 quart reservoir, shop air operation, and switchable vacuum or pressure modes to support fast, controlled service across common vehicle fluids.

Q: What air pressure does MV7102 require and how is working pressure controlled?
A: Supply 90 to 120 PSI shop air. A built in relief maintains operating pressure between 20 and 25 PSI and caps maximum reservoir pressure at 25 PSI.

Q: Can the same unit both extract and dispense fluids?
A: Yes. Switch between vacuum and pressure using the integrated controls to evacuate or dispense with one tool.

Q: What components are included with MV7102?
A: The kit includes the reservoir with venturi lid, MVA575 flex hose with valve, MVA570 dispensing wand, a hanging hook, and the user manual.
