NEXIQ Technologies 121052 USB-Link 3 Wireless Vehicle Communication Interface Kit, Bluetooth 5.0, Wi-Fi, USB 2.0, 1 Kit

NEXIQ Technologies 121052 USB-Link 3 Wireless Vehicle Communication Interface Kit, Bluetooth 5.0, Wi-Fi, USB 2.0, 1 Kit

• NEXIQ Technologies 121052 USB-Link 3 Wireless is a vehicle communication interface kit for professional commercial vehicle diagnostics. It links service computers and mobile devices with commercial vehicle diagnostic networks through compatible OEM diagnostic applications.
• Features:
  • Connects to PCs, tablets, or smartphones by wireless connection, with a USB cable for direct field connection.
  • Vehicle network protocol coverage includes CAN FD, J1939 FD, ISO15765 FD, Single Wire CAN, DoIP, J1708, J1850 VPW, ISO 9141, KWP2000, and ALDL.
  • Windows vehicle communication APIs include RP1210 a/b/c/d, J2534, and partial J2534-1 implementation.
  • Operating system compatibility includes iOS, Android, Windows 10, and Windows 11.
  • OEM approvals include Daimler Truck North America, International Motors, PACCAR Inc., Allison Transmission, Cummins Engine, Eaton Transmission, WABCO/ZF, JCB Excavators, John Deere, Kubota Engine, and Manitou.

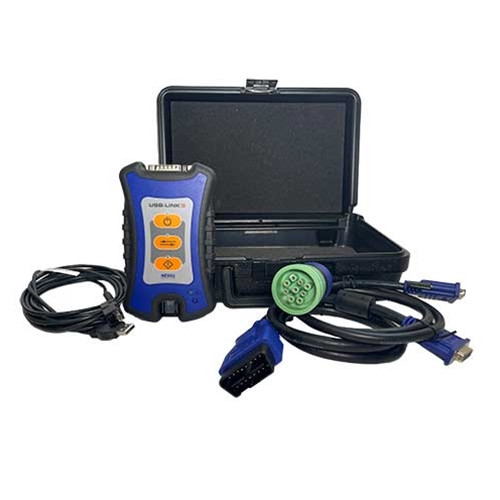

• Includes:
  • NEXIQ USB-Link 3 Wireless vehicle communication interface
  • 9-Pin Deutsch Adapter, 1 Meter
  • J1962 Adapter, 16-Pin OBD II, 1 Meter
  • Latching USB Cable
  • Carrying Case
  • USB-Link 3 Quick Start Guide
• Specifications:
  • Manufacturer: NEXIQ Technologies
  • Part Number: 121052
  • MPN: NQ121052
  • Product Name: USB-Link 3 Wireless
  • Product Type: Wireless vehicle communication interface kit
  • Connectivity: USB 2.0, Bluetooth 5.0, and dual-band Wi-Fi
  • Operating System Compatibility: iOS, Android, Windows 10, and Windows 11
  • Vehicle Network Protocol Support: CAN FD, J1939 FD, ISO15765 FD, Single Wire CAN, DoIP, J1708, J1850 VPW, ISO 9141, KWP2000, and ALDL 9600 and 8192 baud
  • Vehicle Communication API: RP1210 a/b/c/d, J2534, and partial J2534-1
  • Physical Dimensions: 6.75" x 3.75" x 1.06" (171 mms x 95 mms x 27 mms)
  • Weight: 8 Ounces (0.22 Kilogram)
  • Power Requirements: 6 to 32 Volts Direct Current at 350 Milliamperes maximum
  • Operating Temperature: 0 to 50 Degrees Celsius
  • Vehicle Connector: High Density D-sub 26-pin male (HD26M)
  • Wireless Communication: Bluetooth Class 1 adapter and dual-band Wi-Fi 802.11 AC
  • Quantity: 1 kit
• The USB-Link 3 Wireless can also be referred to as vehicle communication interface, heavy-duty diagnostic adapter, wireless diagnostic interface, commercial vehicle VCI, and NEXIQ USB diagnostic adapter.

NEXIQ Technologies provides commercial vehicle diagnostic products, including vehicle communication interfaces, diagnostic software, cables, adapters, and support resources for professional technicians, service providers, fleets, and OEM diagnostic applications.

Q: Which adapters are included with the kit?
A: The kit includes a 9-Pin Deutsch Adapter, a J1962 16-Pin OBD II Adapter, and a latching USB cable.

Q: Which operating systems are compatible?
A: Operating system compatibility includes iOS, Android, Windows 10, and Windows 11.

Q: Which vehicle network protocols are covered?
A: Vehicle network protocol coverage includes CAN FD, J1939 FD, ISO15765 FD, Single Wire CAN, DoIP, J1708, J1850 VPW, ISO 9141, KWP2000, and ALDL.
