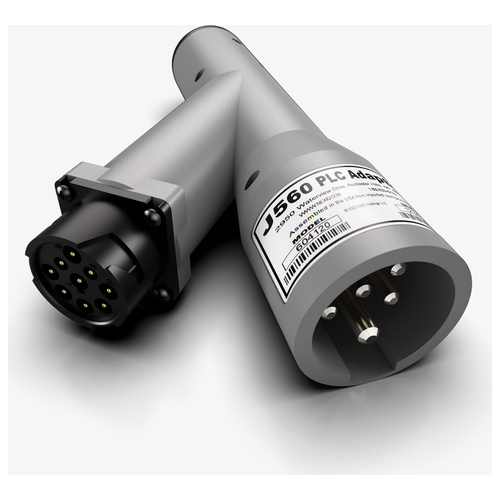

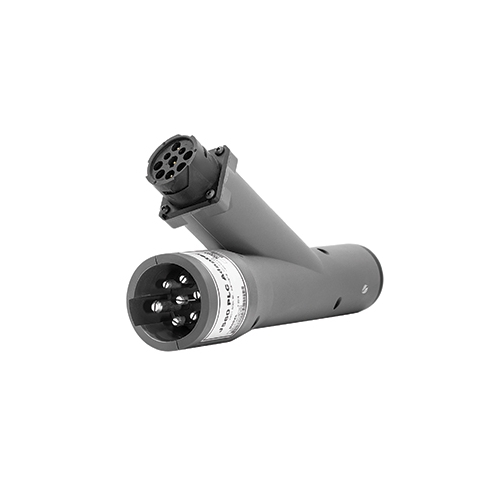

NEXIQ Technologies 604120 Universal J560 PLC Adapter, J2497 PLC to J1708 Communication, WABCO Trailer Brake Compatible

NEXIQ Technologies 604120 Universal J560 PLC Adapter, J2497 PLC to J1708 Communication, WABCO Trailer Brake Compatible

• This diagnostic adapter is made for heavy-duty trailer ABS brake communication. It extends J1708/J1587 diagnostic tools to J2497 Power Line Carrier communication by extracting data from the power line and converting it to J1708.
• Features:
  • Interfaces with all WABCO PLC trailer brakes.
  • Extends J1708/J1587 diagnostic tools to J2497 Power Line Carrier communication.
  • Extracts diagnostic data from the power line and converts it to J1708.
  • Connects between the tractor and trailer or directly to the trailer without the tractor.
  • Works with virtually any heavy-duty vehicle communication interface or scan tool.
• Specifications:
  • Manufacturer: NEXIQ Technologies
  • Part Number: 604120
  • MPN: NQ604120
  • Product Type: Universal J560 PLC adapter
  • Communication Type: J2497 Power Line Carrier
  • Diagnostic Tool Interface: J1708/J1587
  • Data Conversion: PLC power line data to J1708
  • Compatible Brakes: WABCO PLC trailer brakes
  • Diagnostic Functions: Trailer ECU ABS warning lamp messages, in-cab trailer ABS warning lamp test, SAE J1708 MID 10 and 11 test, SAE J1587 MID 136 through 139 test
  • Connection Use: Tractor-to-trailer or trailer-only connection
  • Product Category: Vehicle interface
• The Universal J560 PLC Adapter can also be referred to as PLC diagnostic adapter, J560 trailer ABS adapter, heavy-duty trailer brake adapter, J2497 PLC adapter, and NEXIQ vehicle interface adapter.

NEXIQ Technologies develops vehicle telematics and diagnostic products, software, and services for trucking and fleet vehicle industries. The brand serves commercial vehicle diagnostics with vehicle communication interfaces, cables, adapters, and diagnostic software.

Q: What is NEXIQ Technologies 604120 used for?
A: It is used to extend J1708/J1587 diagnostic tools to J2497 Power Line Carrier communication for trailer ABS brake diagnostics.

Q: What trailer brake systems does this adapter interface with?
A: It interfaces with all WABCO PLC trailer brakes.

Q: How does the adapter handle PLC communication?
A: It extracts data from the power line and converts it to J1708.

Q: Can it connect to the trailer without the tractor?
A: Yes. It can connect between the tractor and trailer or directly to the trailer alone without the tractor.
