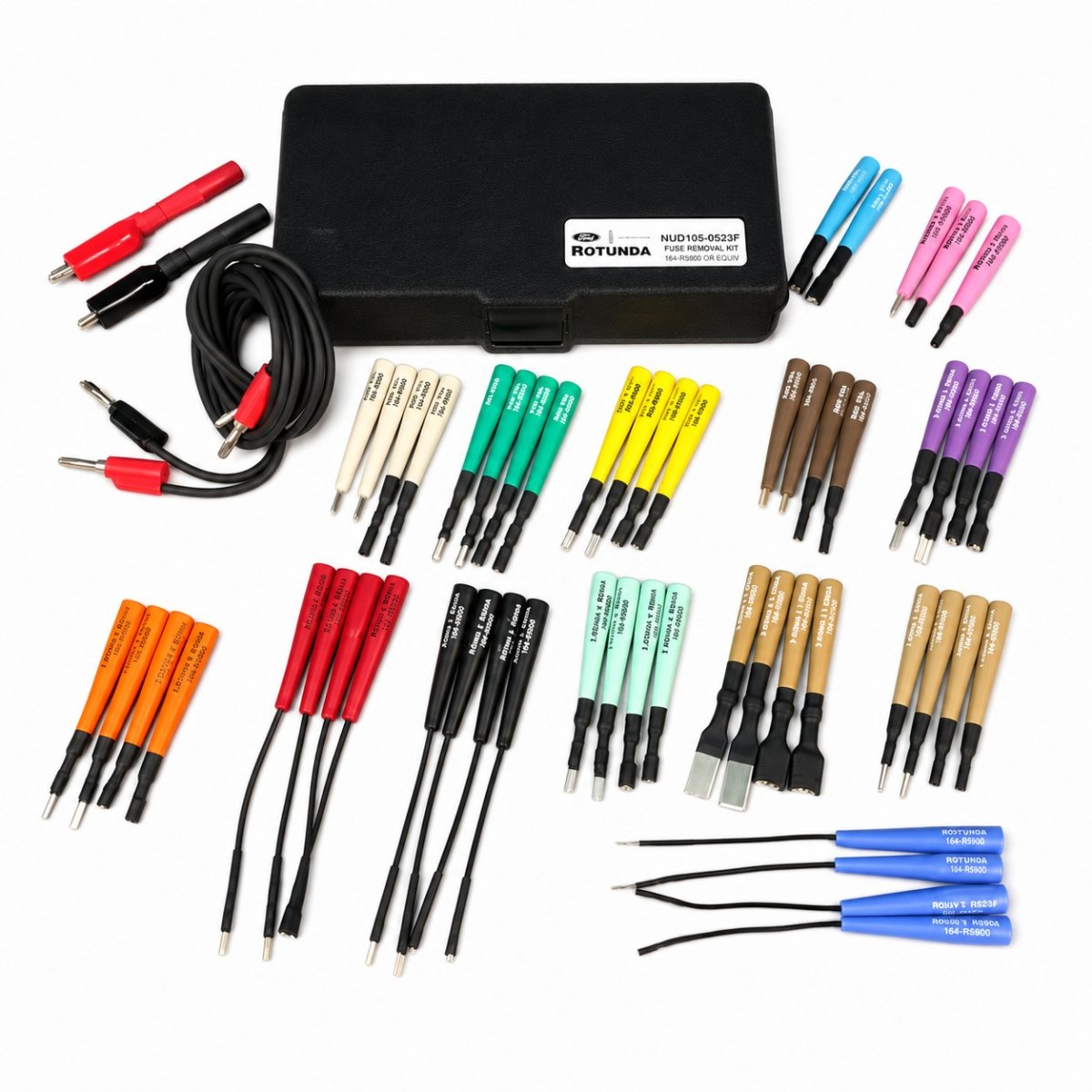

NU-DI 105-R025F Flex Probe Kit, Terminal Probe Leads, Alligator Clips and Storage Case

NU-DI 105-R025F Flex Probe Kit, Terminal Probe Leads, Alligator Clips and Storage Case

• NU-DI Diagnostics/Specialty Tools 105-R025F is an automotive electrical flex probe kit for connector terminal access during diagnostic testing. The kit uses mating terminals to connect to electrical connectors without back-probing or piercing wires.
• Features:
  • Flex probes connect to electrical connector terminals with proper mating terminal sizes.
  • Kit includes all probes from the previous NUD105-R025E kit plus NUD300-420539 probes and the updated NUD300-08046A probe.
  • Red and black 4 Foot stackable banana jack patch cords are included.
  • Probe assortment includes Inch and mm sizes for automotive connector terminal testing.
  • Molded storage case is included for the probes, patch cords, and clips.
• Includes:
  • Red 4 Foot stackable banana jack patch cord
  • Black 4 Foot stackable banana jack patch cord
  • Two 0.060 Inch male and female probe pairs
  • Two 0.110 Inch male and female probe pairs
  • Two 0.120 Inch x 0.027 Inch male and female probe pairs
  • Two 0.200 Inch female probes
  • Two 1.5 mm x 0.80 mm male and female probe pairs
  • Two 0.040 Inch male and female probe pairs
  • Two 2.30 mm x 0.62 mm male and female probe pairs
  • Two 0.80 mm x 0.64 mm male and female probe pairs
  • Two 0.64 mm x 0.64 mm male and female probe pairs
  • Two 2.80 mm x 0.84 mm male and female probe pairs
  • Two 9.50 mm x 1.23 mm male and female probe pairs
  • Two 6.30 mm x 0.84 mm male and female probe pairs
  • NUD300-420539 probes
  • Updated NUD300-08046A probe
  • Two Number 60 alligator clip probes, one red and one black boot
  • Molded storage case
• Specifications:
  • Manufacturer: NU-DI Diagnostics/Specialty Tools
  • Part Number: 105-R025F
  • Alternate Part Number: NUD105-R025F
  • Product Name: Flex Probe Kit
  • Product Type: Automotive electrical flex probe kit
  • Lead Length: 4 Feet
  • Case Dimensions: 8.25 Inches long x 4.5 Inches wide x 1.75 Inches high
  • Packaging Type: Kit
  • Application: Electrical connector terminal access and diagnostic testing
  • Quantity: 1 kit
• The NU-DI Diagnostics/Specialty Tools 105-R025F Flex Probe Kit can also be referred to as automotive flex probe kit, connector terminal probe kit, electrical diagnostic test lead kit, banana jack probe adapter set, and NUD105-R025F probe kit.

NU-DI Diagnostics/Specialty Tools supplies automotive diagnostic and specialty tool products for technicians, including electrical test leads, probe adapters, and connector service tools used in vehicle troubleshooting.

Q: What does this kit add compared with the NUD105-R025E kit?
A: It includes all probes from the previous NUD105-R025E kit plus NUD300-420539 probes and the updated NUD300-08046A probe.

Q: What patch cords are included?
A: The kit includes one red and one black 4 Foot stackable banana jack patch cord.

Q: What case dimensions are listed for the kit?
A: The case dimensions are 8.25 Inches long x 4.5 Inches wide x 1.75 Inches high.
