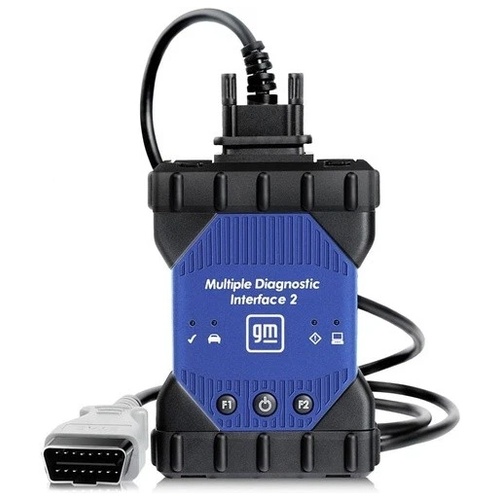

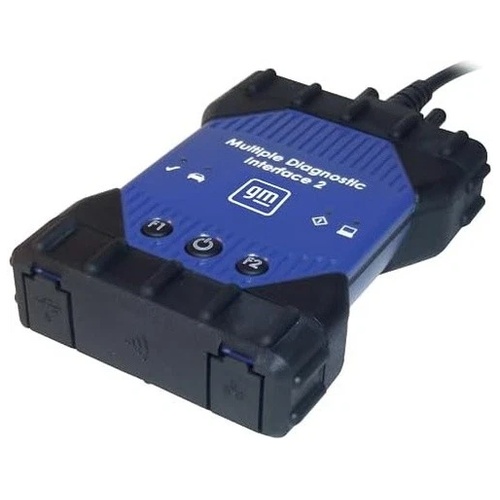

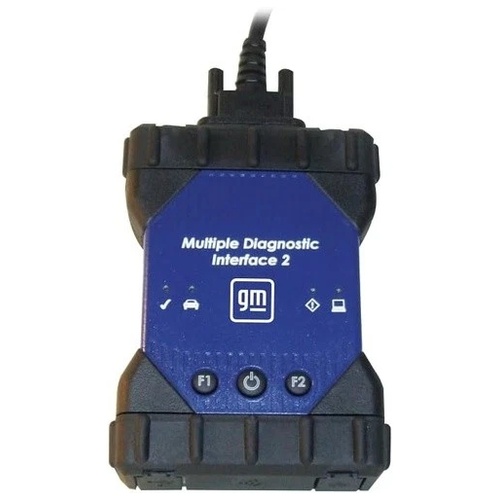

Bosch EL-52100-AM GM MDI 2 Global Diagnostic Interface Aftermarket Kit, for GM Vehicles

Bosch EL-52100-AM GM MDI 2 Global Diagnostic Interface Aftermarket Kit, for GM Vehicles

• Bosch EL-52100-AM connects GM vehicles to PC-based diagnostic and reprogramming applications through the MDI 2 interface. The kit is for service technicians using GM diagnostic software for diagnostics, data transfer, and ECU programming.
• Features:
  • Global Diagnostic Interface tool for current and future GM vehicles.
  • Performs Pass-Thru programming on GM vehicles built since 1996.
  • Connection between the MDI 2 and PC can be made by USB cable or wireless PC and shop network connection.
  • MDI 2 is based on SAE J2534 Pass-Thru and ISO 22900 Modular Vehicle Interface standards.
  • Normal vehicle communication power comes from the vehicle 12 Volt battery through the DLC cable.

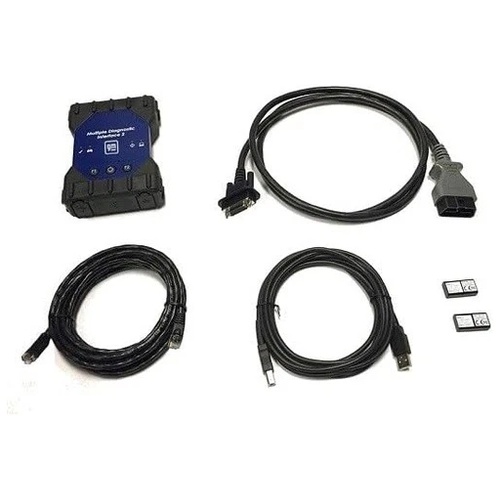

• Includes:
  • MDI 2 device
  • DLC Cable
  • USB Cable
  • Ethernet Cable
• Specifications:
  • Manufacturer: Bosch
  • Part Number: EL-52100-AM
  • Product Name: GM MDI 2 Global Diagnostic Interface Aftermarket Kit
  • Product Type: GM diagnostic interface kit
  • Vehicle Coverage: GM vehicles built since 1996 and future GM vehicles
  • Programming Support: Pass-Thru programming
  • Diagnostic Software: Tech2WIN for 1996 to 2013 GM vehicles; GDS2 for 2010 and newer GM vehicles
  • Connection Type: DLC cable, USB cable, Ethernet cable, and wireless connection
  • Vehicle Connector: SAE J1962 Data Link Connector
  • Standards: SAE J2534 Pass-Thru and ISO 22900 Modular Vehicle Interface
  • Power Source: Vehicle 12 Volt battery through DLC cable during normal use
  • Packaging Type: Each
  • Quantity: 1 GM MDI 2 aftermarket diagnostic interface kit
• The Bosch EL-52100-AM GM MDI 2 Global Diagnostic Interface Aftermarket Kit can also be referred to as GM MDI 2 diagnostic interface, GM Global Diagnostic Interface tool, GM MDI 2 aftermarket kit, J2534 pass-through programming interface, and ACDelco diagnostic interface tool.

Bosch Automotive Aftermarket supplies diagnostic and repair shop equipment, diagnostic software, service training, information services, and automotive aftermarket parts for repair shops and vehicle service markets.

Q: What GM diagnostic software is used with the Bosch EL-52100-AM?
A: Tech2WIN is used for 1996 to 2013 GM vehicles, and GDS2 is used for 2010 and newer GM vehicles.

Q: What components are included in the aftermarket kit?
A: The kit includes the MDI 2 device, DLC Cable, USB Cable, and Ethernet Cable.

Q: How is the MDI 2 powered during normal vehicle communication?
A: It is powered by the vehicle 12 Volt battery through the DLC cable during normal use.
