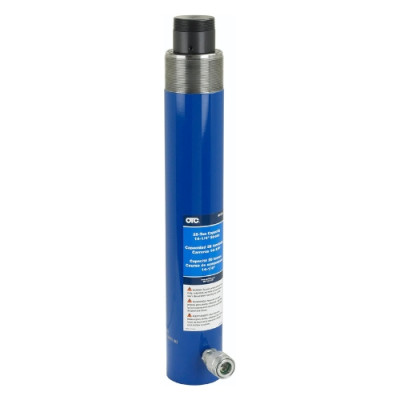

OTC 4107A Single-Acting Spring-Return Ram, 14-1/4 Inch Stroke, 25 Ton

OTC 4107A Single-Acting Spring-Return Ram, 14-1/4 Inch Stroke, 25 Ton

• The OTC 4107A is a single-acting, spring-return hydraulic ram with a 14-1/4 inch stroke and 25-ton capacity. It is engineered for heavy-duty shop and industrial hydraulic applications.
• Features:
  • Maximum working pressure up to 10,000 psi with a 2:1 safety factor on material yield
  • Complies with ANSI B30.1 standards for hydraulic cylinders
  • Threaded ram collar and internal base threads for simplified mounting
  • Compact design with added bearing surface to resist off-center loading
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: 4107A
  • Capacity: 25 tons (at 10,000 psi)
  • Stroke: 14-1/4 inches
  • Collapsed Height: 21-3/8 inches
  • Extended Height: 35-5/8 inches
  • Oil Capacity: 73.5 cubic inches
  • Application: Suitable for hydraulic presses, jacks, frame straightening, and heavy repair operations

OTC, part of Bosch Automotive Service Solutions, engineered the 4107A as a robust, high-capacity spring-return hydraulic ram. Its compact structure, long stroke, and durable construction make it ideal for demanding shop and industrial applications.

Q: What is the working pressure rating?
A: The ram is rated for up to 10,000 psi operating pressure.

Q: Is this ram single-acting or double-acting?
A: It is a single-acting hydraulic ram with a spring return.

Q: What is the oil capacity?
A: The ram holds 73.5 cubic inches of hydraulic oil.
