OTC 1124 Bearing Splitter Attachment, 1/2 inch to 5-3/4 inch Spread

OTC 1124 Bearing Splitter Attachment, 1/2 inch to 5-3/4 inch Spread

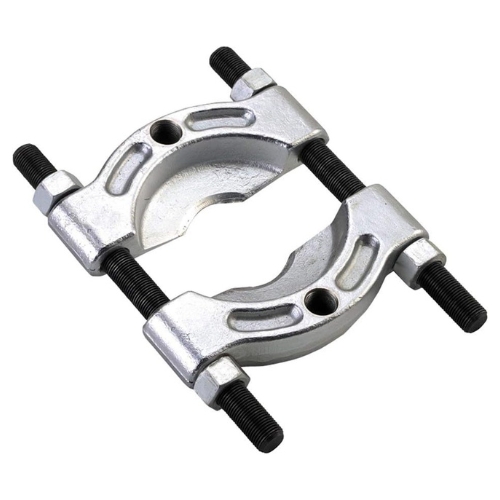

• This OTC 1124 Bearing Splitter Attachment is a specialty puller tool designed to split or remove bearings and similar press-fit components with minimal clearance; it accepts spread from 1/2 inch up to 5-3/4 inch.
• Features:
  • Min Spread 1/2 inch; Max Spread 5-3/4 inch can accommodate a wide range of bearing sizes with little overhang or excess material needed.
  • Knife-like edges on splitter surfaces allows secure placement behind a bearing or component even with limited clearance.
  • Tapped holes for adapter, thread size 5/8-18 enables use with puller legs or adapters for various pulling tools.
  • Distance between adjusting screws of 6 inches helps maintain stability when splitter is secured and force is applied.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 1124
  • Type / Function: Bearing splitter attachment
  • Minimum Spread: 1/2 inch
  • Maximum Spread: 5-3/4 inch
  • Tapped Hole Thread: 5/8-18
  • Distance Between Adjusting Screws: 6 inches
  • System Compatibility: Designed to be used with OTC pullers Nos. 1035, 1040, 1041, 1042, 1065, 1063, and 938; works as a splitting accessory behind components to allow pullers to extract them cleanly.
• The OTC 1124 can also be referred to as OTC bearing splitter 1/2-5-3/4 inch, OTC adapter splitter attachment 1124, OTC puller accessory splitter, OTC specialty tool bearing spread attachment, OTC split bearing tool.

OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability

Q: What is meant by "spread" in reference to this bearing splitter?
A: The spread is the distance between the two edges of the splitter that grip around the component; with a minimum of 1/2 inch it can get into tight clearances, and with maximum 5-3/4 inch it can accommodate larger bearings.

Q: Which OTC pullers are compatible with this 1124 Bearing Splitter?
A: It is compatible with OTC puller models Nos. 1035, 1040, 1041, 1042, 1065, 1063, and 938 those models can use the splitter by attaching their jaws or legs into the tapped holes on the 1124.

Q: Can this splitter be used without a puller?
A: Not safely, the 1124 is an attachment meant to provide grip behind a bearing so that a compatible OTC puller can apply axial pulling force; using it alone risks damage to the component or tool, and lacks the mechanical leverage required.
