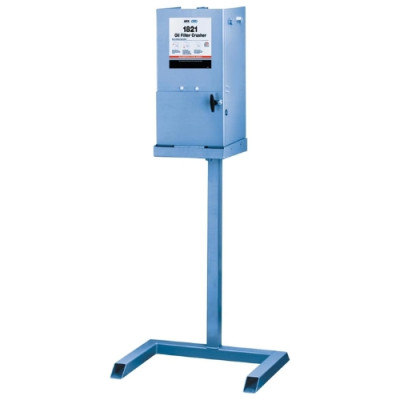

OTC 1821 Air-Operated Oil Filter Crusher, 10-Ton

OTC 1821 Air-Operated Oil Filter Crusher, 10-Ton

• The OTC 1821 10-Ton Air-Operated Oil Filter Crusher is a shop-equipment unit that crushes spin-on oil filters using compressed air; it minimizes space and waste disposal volume. It is intended for automotive filters (spin-on type) and not for filters containing solvents or unapproved materials.
• Features:
  • Can crush up to four automotive spin-on filters, each up to 3-7/8 inch diameter x 9 inch height, in approximately 20 seconds speeds up waste handling operations.
  • 100% air operation (no electrical components) increases safety and reduces risk in flammable environments.
  • Generous crushing chamber of 9 inch height accommodates the largest spin-on oil filters on the market.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 1821
  • Capacity: 10 ton crushing force
  • Maximum Filter Size: 3-7/8 inch diameter x 9 inch height
  • Operating Air Pressure: Minimum 100 psi; maximum 200 psi door latched and handle positioned fully (CW)
  • Product Dimensions: 28.25 x 30 x 62 inch (length x width x height)
  • Stand-mounted with tray; includes crushing ram tube and air inlet connection 1/4-FNPT
  • System Compatibility: Designed for steel spin-on oil filters typical in cars and light trucks; not for bypass filters or filters containing non-compressible contents or fire hazard fluids.
• The OTC 1821 can also be referred to as 10-ton filter crusher, air-operated oil filter crusher OTC-1821, spin-on filter crusher shop tool, OTC oil filter compactor 1821, and automotive oil filter crusher 10-ton.

OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability

Q: What is the minimum air pressure needed to operate the OTC 1821 crusher reliably?
A: The crusher requires a minimum of 100 psi of compressed air to crush standard automotive filters effectively.

Q: Can this crusher handle oversized or non-standard oil filters?
A: It can handle filters up to 3-7/8 inch diameter and 9 inch height; filters larger than those dimensions may not fit or crush properly.

Q: Is electrical power required to run OTC 1821?
A: No, it is 100 % air-operated, so no electricity is required. That reduces risk in oily or flammable environments and simplifies installation.
