Power Probe PPECB OBD-II Breakout Box, CAN Bus Circuit Tester, 12 and 24 Volt, with 2 Pin Adapter

Power Probe PPECB OBD-II Breakout Box, CAN Bus Circuit Tester, 12 and 24 Volt, with 2 Pin Adapter

• Power Probe PPECB is an OBD-II breakout box and CAN Bus circuit tester for checking a vehicle Data Link Connector before diagnostic equipment is connected. It displays communicating signals, tests voltages at all 16 pins, and monitors OBD input voltage during module programming.
• Features:
  • Tests the DLC or OBD port for abnormalities such as shorting and reverse polarity at the pins.
  • Displays live communicating signals on assigned pins without a separate digital volt ohmmeter.
  • Accesses all 16 pin connections during vehicle repair and diagnosis.
  • Low voltage alarm monitors OBD input voltage during module programming.
  • Reverse polarity protection turns the LED on pins 4 and 5 red.
• Includes:

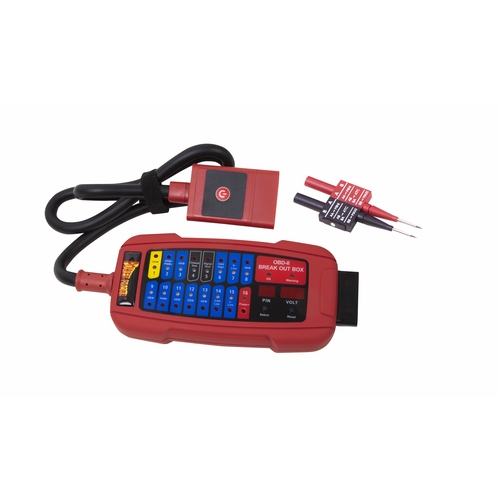

  • Power Probe PPECB OBD-II Breakout Box
  • 2 pin adapter
• Specifications:
  • Manufacturer: Power Probe
  • Part Number: PPECB
  • UPC: 816724021869
  • Product Name: Power Probe PPECB Breakout Box
  • Product Type: OBD-II breakout box and CAN Bus circuit tester
  • Compatible Systems: 12 and 24 Volt systems
  • Operating Range: 7.0 to 30.0 Volt direct current input
  • Maximum Load: Up to 3.0 Amp output
  • Overload Protection: PTC fuse, self-healing
  • Voltage Display: 3 digit LEDs with 0.1 Volt resolution
  • Banana Sockets: 16 outputs x 1.0 Millimeter diameter with LED lamp indications
  • Protocols Detected: PWM J1850, VPW J1850, ISO 9141-2, DIS/ISO 14230-4, CAN Bus J-2284
  • Operating Temperature: 32 to 122 Fahrenheit; 0 to 50 Celsius
  • Permitted Humidity: Less than 70%
  • OBD Cable Length: 30 Inches
  • Package Type: Each
  • Quantity: 1 OBD-II breakout box
• The OBD-II Breakout Box can also be referred to as OBD-II breakout box, CAN Bus circuit tester, DLC tester, OBD pin tester, and diagnostic breakout box.

Power Probe develops automotive electrical diagnostic tools for technicians, including circuit testers, measuring tools, battery current draw tools, temperature tools, and electrical accessories. The company focuses on vehicle electrical testing and diagnostic equipment.

Q: What does the PPECB check before diagnostic equipment is connected?
A: It checks the DLC or OBD port for abnormalities such as shorting and reverse polarity at the pins.

Q: Can the PPECB test all OBD-II pins?
A: Yes. The tool accesses all 16 pin connections and can test voltages at all 16 pins.

Q: What protocols does the PPECB detect?
A: The PPECB detects PWM J1850, VPW J1850, ISO 9141-2, DIS/ISO 14230-4, and CAN Bus J-2284 protocols.
